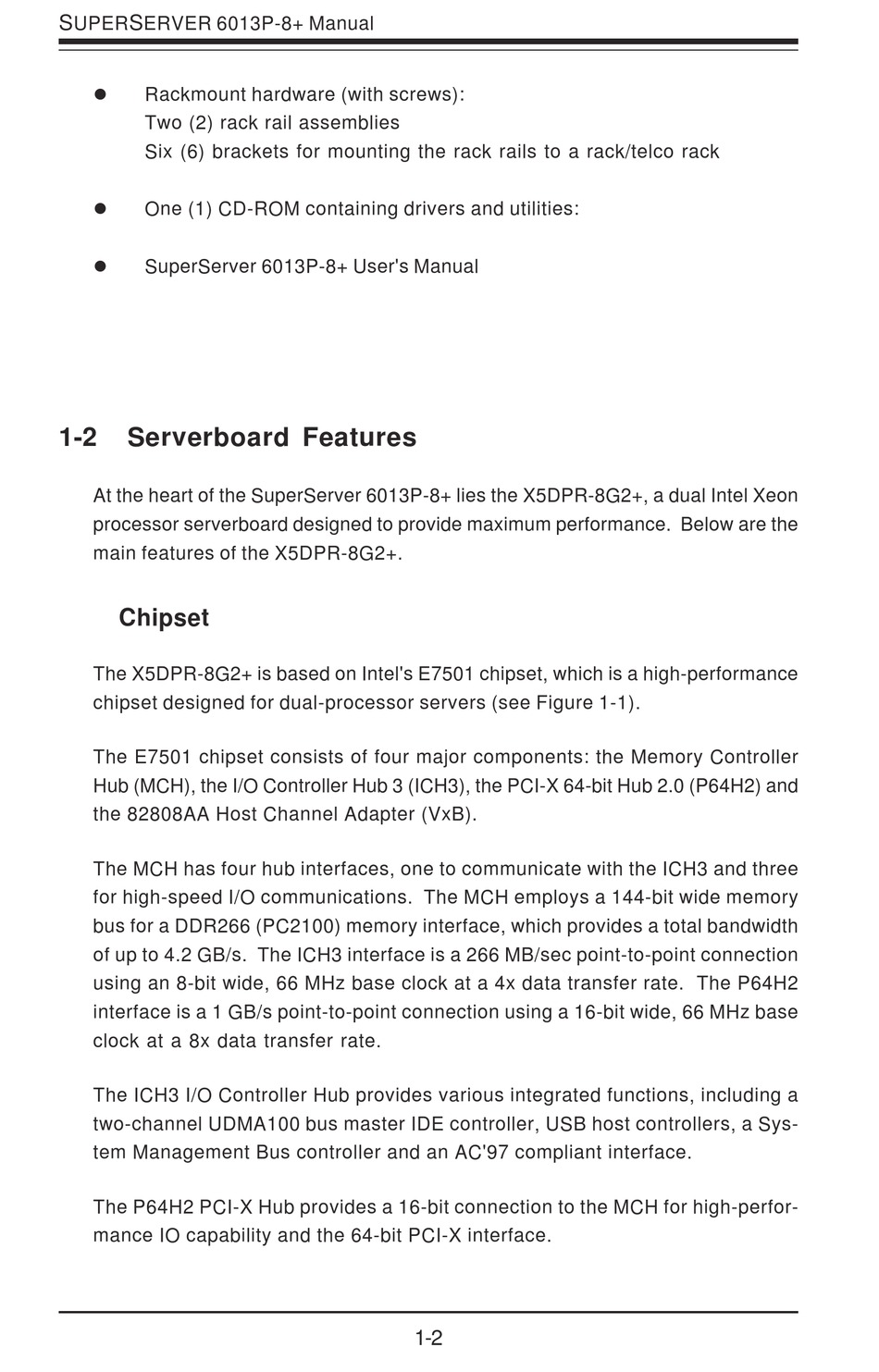

UPER ERVER 6013P-8+ Manual
!
Rackmount hardware (with screws):
Two (2) rack rail assemblies
Six (6) brackets for mounting the rack rails to a rack/telco rack
!
One (1) CD-ROM containing drivers and utilities:
!
SuperServer 6013P-8+ User's Manual
1-2

Serverboard Features

At the heart of the SuperServer 6013P-8+ lies the X5DPR-8G2+, a dual Intel Xeon
processor serverboard designed to provide maximum performance. Below are the
main features of the X5DPR-8G2+.
Chipset
The X5DPR-8G2+ is based on Intel's E7501 chipset, which is a high-performance
chipset designed for dual-processor servers (see Figure 1-1).
The E7501 chipset consists of four major components: the Memory Controller
Hub (MCH), the I/O Controller Hub 3 (ICH3), the PCI-X 64-bit Hub 2.0 (P64H2) and
the 82808AA Host Channel Adapter (VxB).
The MCH has four hub interfaces, one to communicate with the ICH3 and three
for high-speed I/O communications. The MCH employs a 144-bit wide memory
bus for a DDR266 (PC2100) memory interface, which provides a total bandwidth
of up to 4.2 GB/s. The ICH3 interface is a 266 MB/sec point-to-point connection
using an 8-bit wide, 66 MHz base clock at a 4x data transfer rate. The P64H2
interface is a 1 GB/s point-to-point connection using a 16-bit wide, 66 MHz base
clock at a 8x data transfer rate.
The ICH3 I/O Controller Hub provides various integrated functions, including a
two-channel UDMA100 bus master IDE controller, USB host controllers, a Sys-
tem Management Bus controller and an AC'97 compliant interface.
The P64H2 PCI-X Hub provides a 16-bit connection to the MCH for high-perfor-
mance IO capability and the 64-bit PCI-X interface.
