Chapter 2: Server Installation
2-4

Installing the SuperServer 6013P-8+ into a Rack

This section provides information on installing the SuperServer 6013P-8+ into a
rack unit with the rack rails provided. If the 6013P-8+ has already been mounted
into a rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of
rack units on the market, which may mean the assembly procedure will differ
slightly. You should also refer to the installation instructions that came with the
rack unit you are using.

Identifying the Sections of the Rack Rails

You should have received two rack rail assemblies with the SuperServer 6013P-
8+. Each of these assemblies consists of two sections: an inner fixed chassis
rail that secures to the 6013P-8+ (A) and an outer fixed rack rail that secures
directly to the rack itself (B). Two pairs of short brackets to be used on the front
side of the outer rails are also included.

Installing the Inner Rails

First, locate the right inner rail (the rail that will be used on the right side of the
chassis when you face the front of the chassis). Align the four square holes on
the right inner rail against the hooks on the right side of the chassis. Securely
attach the rail to the chassis with two M4 flat head screws. Repeat these steps
to install the left inner rail to the left side of the chassis.

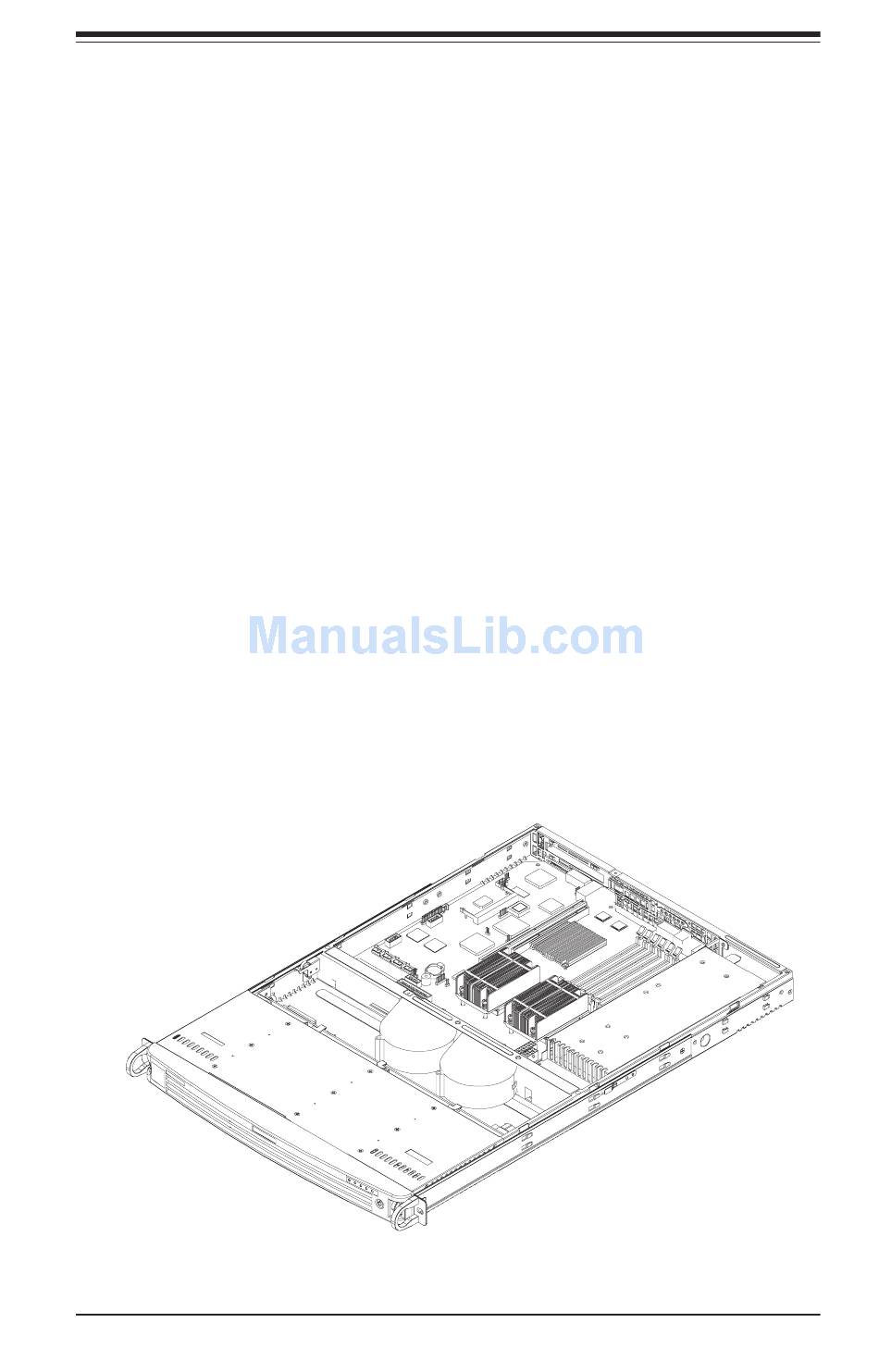

Figure 2-1. SC813S with Rack Rails Attached
(with optional front bezel shown)
