UPERSERVER 6013P-8+ User's Manual

Connecting the Control Panel

JF2 contains header pins for various front control panel connectors.
Figure 5-3 for the pin locations of the various front control panel buttons
and LED indicators. Please note that even and odd numbered pins are on
opposite sides of each header.
All JF2 wires have been bundled into single ribbon cable to simplify their
connection. Make sure the red wire plugs into pin 1 as marked on the
serverboard.
board, located just behind the system status LEDs in the chassis.
See the Connector Definitions section in this chapter for details and pin
descriptions of JF2.

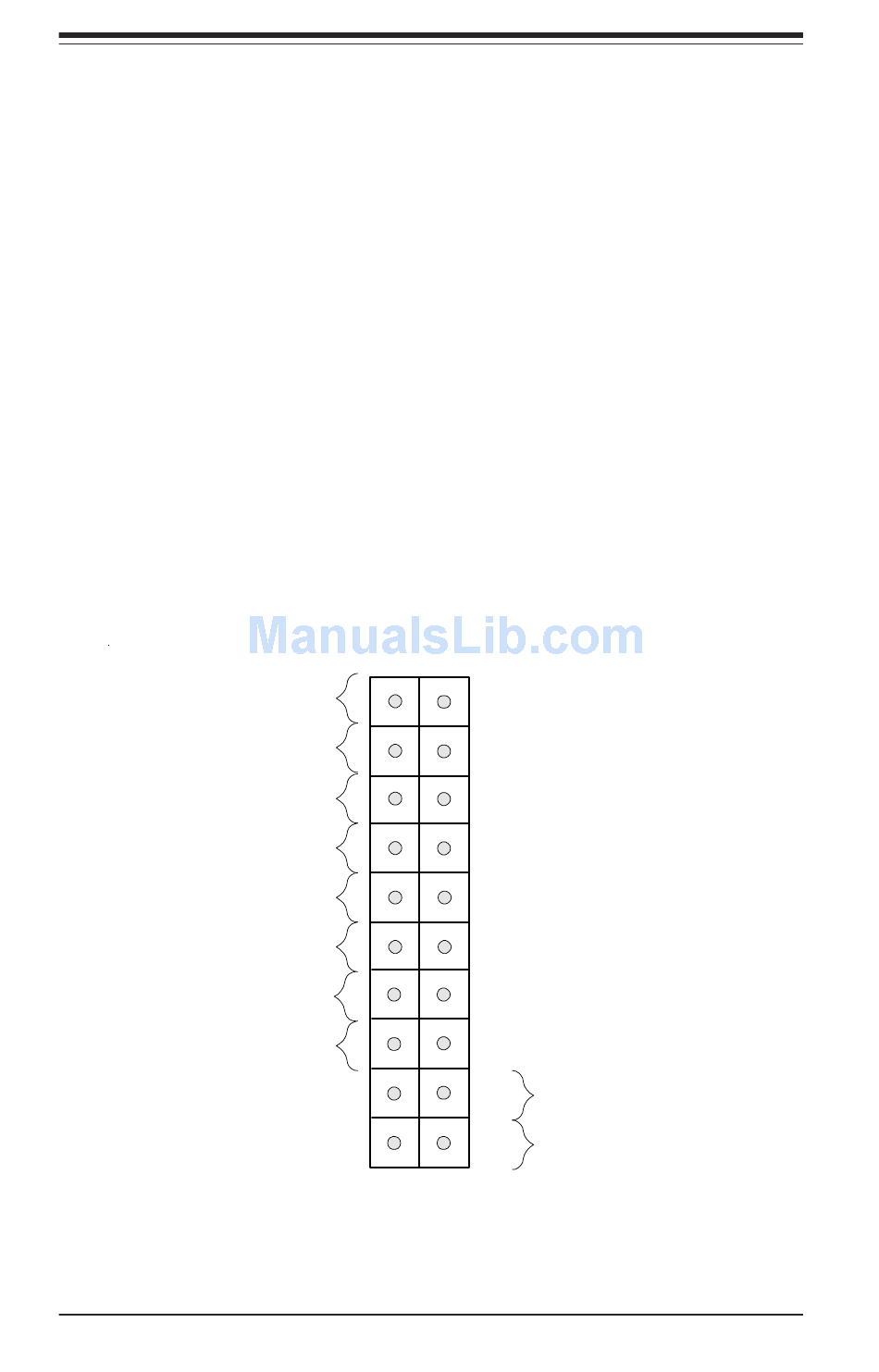

Figure 5-3. Front Control Panel Header Pins (JF2)
Power LED
Overheat LED
Power Fail LED
The other end connects to the Control Panel printed circuit
20
Ground
X
HDD LED
NIC1 LED
NIC2 LED
G round
G round
2
19
NMI
X
Vcc
Vcc
Vcc
Vcc
Vcc
Vcc
Reset Button
Reset
Power Button
Pwr
1
5-6
See
