UPER ERVER 6013P-8+ Manual

Onboard Controllers/Ports

The X5DPR-8G2+ includes one floppy drive controller and two onboard IDE con-
trollers, which support up to four hard drives or ATAPI devices. Backpanel I/O
ports include one COM port, two USB ports, PS/2 mouse and keyboard ports,
a video (monitor) port and an external SCSI port. An Intel 82546 Ethernet
controller is included to support two Gb LAN ports.

Other Features

Other onboard features are included to promote system health. These include
various voltage monitors, two CPU temperature sensors, four fan speed sensors,
a chassis intrusion header, auto-switching voltage regulators, chassis and CPU
overheat sensors, virus protection and BIOS rescue.
ATA 100
Ports
USB 1.1
Ports
SMBus
Super IO

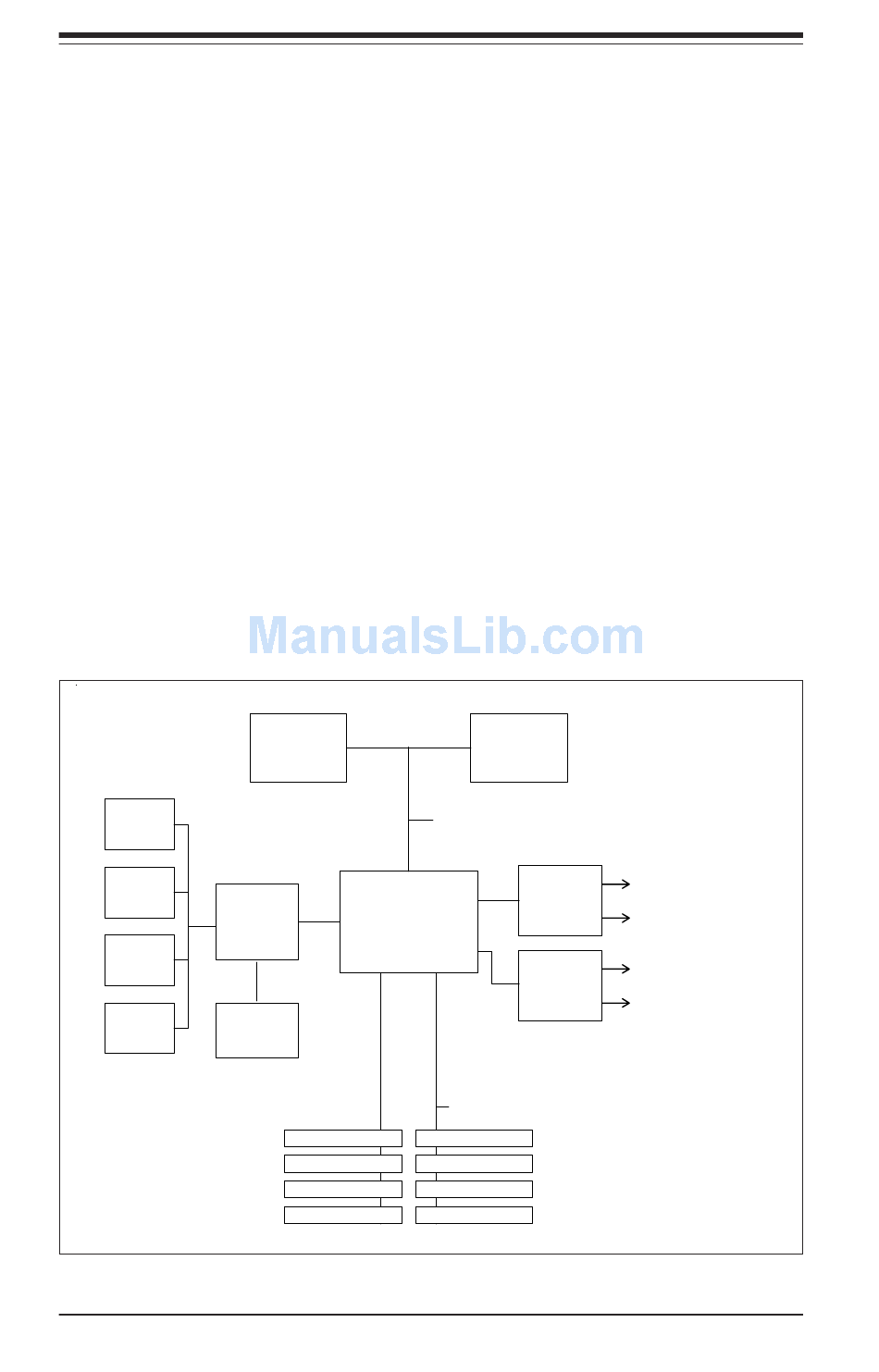

Figure 1-1. E7501 Chipset Block Diagram
Processor 1
MCH
ICH3-S
ATI
Graphics
Processor 0
533/400 MHz System Bus
P64H2
P64H2
266 MHz Memory Bus
2-Channel DDR SDRAM
1-4
PCI-X Slot 5, Gb LAN
PCI-X Slot 6, SXB
PCI-X Slots 1-3
PCI-X Slot 4, SCSI
