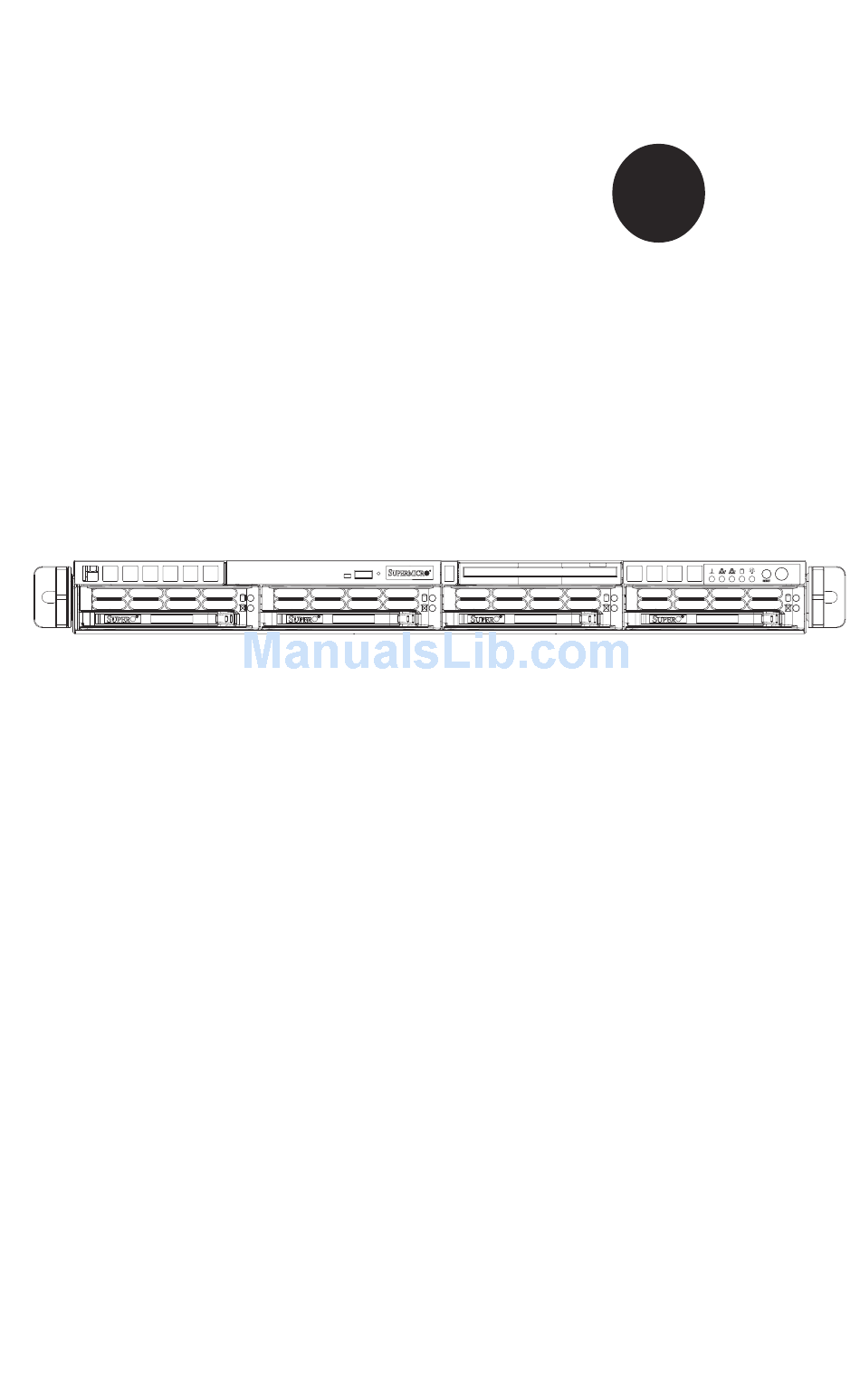

  • Page 1 ® UPER 6013P-8+ UPER ERVER USER’S MANUAL...
  • Page 2 The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product. Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not copy any part of this document.

  • Page 3: Preface

    About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 6013P-8+. Installation and maintainance should be performed by experienced technicians only. The SuperServer 6013P-8+ is a high-end, dual Xeon processor 1U rackmount server based on the SC813S 1U rackmount server chassis and the X5DPR-8G2+ serverboard, which supports single or dual Xeon processors of up to 3.20 GHz at a Front Side (system) Bus speed of 533/400 MHz and up to 12 GB of DDR266/...
  • Page 4 UPER ERVER 6013P-8+ Manual Chapter 4: System Safety You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperServer 6013P-8+. Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X5DPR-8G2+ serverboard, including the locations and functions of connectors, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    Chapter 1: Introduction to the SuperServer 6013P-8+ Overview ... 1-1 Serverboard Features ... 1-2 Server Chassis Features ... 1-5 Contacting Supermicro ... 1-7 Chapter 2: Server Installation Overview ... 2-1 Unpacking the SuperServer 6013P-8+ ... 2-1 Preparing for Setup ... 2-1 Choosing a Setup Location ...
  • Page 7 SCSI Drive Carrier LEDs ... 3-3 Chapter 4: System Safety Electrical Safety Precautions ... 4-1 General Safety Precautions ... 4-2 ESD Precautions ... 4-3 Operating Precautions ... 4-4 Chapter 5: Advanced Serverboard Setup Handling the X5DPR-8G2+ Serverboard ... 5-1 PGA Processor and Heatsink Installation ... 5-2 Connecting Cables ...
  • Page 8 UPER ERVER 6013P-8+ Manual Third Power Supply Fail Header ... 5-16 Chassis Intrusion ... 5-16 Wake-On-LAN ... 5-17 Wake-On-Ring ... 5-17 Keylock ... 5-17 Jumper Settings ... 5-18 Explanation of Jumpers ... 5-18 CMOS Clear ... 5-18 GLAN Enable/Disable ... 5-19 VGA Enable/Disable ...
  • Page 9 Chapter 7: BIOS Introduction ... 7-1 Running Setup ... 7-2 Main BIOS Setup ... 7-2 Main BIOS Setup Menu ... 7-3 Advanced Setup ... 7-6 Security ... 7-13 Power ... 7-15 Boot ... 7-17 PIR ... 7-19 Exit ... 7-21 Appendices: Appendix A: BIOS POST Messages ...
  • Page 10 UPER ERVER 6013P-8+ User's Manual Notes...

  • Page 11: Chapter 1: Introduction To The Superserver 6013P-8

    Introduction to the SuperServer 6013P-8+ Overview The Supermicro SuperServer 6013P-8+ is a high-end dual processor, 1U rackmount server that features some of the most advanced technology currently available. The SuperServer 6013P-8+ is comprised of two main subsystems: the SC813S 1U rackmount chassis and the X5DPR-8G2+ dual Xeon processor serverboard.

  • Page 12: Serverboard Features

    UPER ERVER 6013P-8+ Manual Rackmount hardware (with screws): Two (2) rack rail assemblies Six (6) brackets for mounting the rack rails to a rack/telco rack One (1) CD-ROM containing drivers and utilities: SuperServer 6013P-8+ User's Manual Serverboard Features At the heart of the SuperServer 6013P-8+ lies the X5DPR-8G2+, a dual Intel Xeon processor serverboard designed to provide maximum performance.

  • Page 13: Onboard Scsi

    3.20 GHz at a 533/400 MHz FSB. Please refer to the support section of our web site for a complete listing of supported processors (http:// www.supermicro.com/TechSupport.htm). Memory The X5DPR-8G2+ has 6 184-pin, DIMM slots that can support up to 12 GB of low- profile, registered ECC DDR266/200 (PC2100/1600) SDRAM.

  • Page 14: Other Features

    UPER ERVER 6013P-8+ Manual Onboard Controllers/Ports The X5DPR-8G2+ includes one floppy drive controller and two onboard IDE con- trollers, which support up to four hard drives or ATAPI devices. Backpanel I/O ports include one COM port, two USB ports, PS/2 mouse and keyboard ports, a video (monitor) port and an external SCSI port.

  • Page 15: Server Chassis Features

    Server Chassis Features The SC813S is one of Supermicro's third-generation 1U chassis and features four hot-swap SCSI hard drive bays, a slim CD-ROM drive, a slim 3.5" floppy drive and a revolutionary cooling design that can keep today's most powerful processors running well below their temperature thresholds.

  • Page 16: Cooling System

    UPER ERVER 6013P-8+ Manual Keyboard Port Mouse Port Low Profile PCI Slot Standard PCI Slot USB Ports COM1 Port Ethernet Ports VGA Port Ext. SCSI Port Figure 1-2. I/O Backplane Cooling System The SC813S chassis' revolutionary cooling design has been optimized to provide sufficient cooling for dual Xeon configurations.

  • Page 17: Contacting Supermicro

    Contacting Supermicro Headquarters Address: SuperMicro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: SuperMicro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 18 UPER ERVER 6013P-8+ Manual Notes...

  • Page 19: Chapter 2: Server Installation

    Server Installation 2-1 Overview This chapter provides a quick setup checklist to get your SuperServer 6013P-8+ up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. This quick setup assumes that your SuperServer 6013P-8+ system has come to you with the processors and memory preinstalled.

  • Page 20: Choosing A Setup Location

    UPER ERVER 6013P-8+ Manual Choosing a Setup Location - Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches). - Leave approximately 30 inches of clearance in the back of the rack to allow for sufficient airflow and ease in servicing.

  • Page 21: Installing The Superserver 6013P-8+ Into A Rack

    Chapter 2: Server Installation Installing the SuperServer 6013P-8+ into a Rack This section provides information on installing the SuperServer 6013P-8+ into a rack unit with the rack rails provided. If the 6013P-8+ has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.

  • Page 22: Installing The Outer Rails

    UPER ERVER 6013P-8+ Manual Installing the Outer Rails Begin by measuring the distance from the front rail to the rear rail of the rack. Attach a short bracket to the front side of the right outer rail and a long bracket to the rear side of the right outer rail.

  • Page 23: Installing The Server Into The Rack

    Chapter 2: Server Installation Installing the Server into the Rack You should now have rails attached to both the chassis and the rack unit. The next step is to install the server into the rack. Do this by lining up the rear of the chassis rails with the front of the rack rails. Slide the chassis rails into the rack rails, keeping the pressure even on both sides (you may have to depress the locking tabs when inserting).

  • Page 24: Installing The Server Into A Telco Rack

    UPER ERVER 6013P-8+ Manual Installing the Server into a Telco Rack If you are installing the SuperServer 6013P-8+ into a Telco type rack, follow the directions given on the previous pages for rack installation. The only difference in the installation procedure will be the positioning of the rack brackets to the rack.

  • Page 25: Checking The Serverboard Setup

    Checking the Serverboard Setup After you install the 6013P-8+ in the rack, you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made. 1. Accessing the inside of the 6013P-8+ (see Figure 2-5): First, release the retention screws that secure the unit to the rack.
  • Page 26 UPER ERVER 6013P-8+ Manual Figure 2-5. Accessing the Inside of the SuperServer 6013P-8+ (with optional front bezel shown) 6. Check all cable connections and airflow: Make sure all power and data cables are properly connected and not blocking the chassis airflow. See Chapter 5 for details on cable connec- tions.

  • Page 27: Checking The Drive Bay Setup

    Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the SCSI drives and SCSI backplane have been properly installed and all connections have been made. 1. Accessing the drive bays: All drives are accessable from the front of the server. For servicing the CD-ROM and floppy drives, you will need to remove the top chassis cover.
  • Page 28 UPER ERVER 6013P-8+ Manual Notes 2-10...

  • Page 29: Chapter 3: System Interface

    Overview There are several LEDs on the chassis control panel as well as others on the SCSI drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components. There are also two buttons on the chassis control panel and an on/off switch on the power supply.

  • Page 30: Control Panel Leds

    UPER ERVER 6013P-8+ User's Manual Control Panel LEDs The control panel located on the front of th SC813S chassis has five LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 31: Power

    Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating. SCSI Drive Carrier LEDs Each SCSI drive carrier has two LEDs. Green: When illuminated, the green LED on the front of a SCSI drive carrier indicates drive activity.
  • Page 32 UPER ERVER 6013P-8+ User's Manual Notes...

  • Page 33: Chapter 4: System Safety

    Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperServer 6013P-8+ from damage: ! Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 34: General Safety Precautions

    UPER ERVER 6013P-8+ Manual ! The power supply power cord must include a grounding plug and must be plugged into grounded electrical outlets. ! Serverboard Battery: CAUTION - There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarities.

  • Page 35: Esd Precautions

    ! After accessing the inside of the system, close the system back up and secure it to the rack unit with the retention screws after ensuring that all connections have been made. ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other.

  • Page 36: Operating Precautions

    UPER ERVER 6013P-8+ Manual Operating Precautions Care must be taken to assure that the chassis cover is in place when the 6013P-8+ is operating to ensure proper cooling. Out of warranty damage to the 6013P-8+ system can occur if this practice is not strictly followed.

  • Page 37: Chapter 5: Advanced Serverboard Setup

    Advanced Serverboard Setup This chapter covers the steps required to install processors and heatsinks to the X5DPR-8G2+ serverboard, connect the data and power cables and install add-on cards. scribed and a layout and quick reference chart are included in this chapter. Remember to close the chassis completely when you have finished working on the serverboard to protect and cool the system sufficiently.

  • Page 38: Pga Processor And Heatsink Installation

    UPERSERVER 6013P-8+ User’s Manual PGA Processor and Heatsink Installation When handling the processor package, avoid placing direct pressure on the label area of the fan. Also, do not place the serverboard on a conductive surface, which can damage the BIOS battery and prevent the system from booting up. IMPORTANT: Always connect the power cord last and always remove it before adding, removing or changing any hardware components.
  • Page 39 4. Place the heatsink directly on the CPU so that the four mounting holes are aligned with those on the chassis. Make sure the heatsink sits completely flat on the CPU - if not completely flat, the space between the two will degrade the heat dissipation function of the heatsink, which may cause the processor to overheat.
  • Page 40 UPERSERVER 6013P-8+ User’s Manual Figure 5-2. Heatsink Installation...

  • Page 41: Connecting Cables

    Connecting Cables Now that the processors are installed, the next step is to connect the cables to the serverboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The ribbon cables used to transfer data from the peripheral devices have been carefully routed in preconfigured systems to prevent them from block- ing the flow of cooling air that moves through the system from front to back.

  • Page 42: Connecting The Control Panel

    UPERSERVER 6013P-8+ User’s Manual Connecting the Control Panel JF2 contains header pins for various front control panel connectors. Figure 5-3 for the pin locations of the various front control panel buttons and LED indicators. Please note that even and odd numbered pins are on opposite sides of each header.

  • Page 43: I/O Ports

    See Figure 5-4 below for the colors and locations of the various I/O ports. Figure 5-4. Rear Panel I/O Ports Installing Memory Note: Check the Supermicro web site for recommended memory modules: http://www.supermicro.com/TECHSUPPORT/FAQs/Memory_vendors.htm Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.
  • Page 44 UPERSERVER 6013P-8+ User’s Manual Memory Support The X5DPR-8G2+ only supports ECC registered DDR266/200 (PC2100/1600) memory. If you are using 533 MHz FSB processors, you should use DDR266 SDRAM. If you are using 400 MHz FSB processors, you may use either DDR266 or DDR200 SDRAM.

  • Page 45: Adding Pci Cards

    Adding PCI Cards PCI slots: The X5DPR-8G2+ has one 64-bit 133 MHz PCI-X slot for a full-length (standard) PCI card and one slim 64-bit 66 MHz PCI slot. The 64-bit 133 MHz PCI-X slot should have a butterfly riser card installed, which can accept one standard sized PCI card and one low profile PCI card (see Figures 5-6a and 5-6b).

  • Page 46: Serverboard Details

    UPERSERVER 6013P-8+ User’s Manual Serverboard Details Figure 5-7. SUPER X5DPR-8G2+ Layout Keyboard DIMM #1A Mouse DIMM #1B USB0/1 DIMM #2A DIMM #2B COM1 DIMM #3A DIMM #3B GLAN1 GLAN2 Rage XL AIC-7902 JP22 ® UPER X5DPR-8G2+ Notes: The IPMI socket is an optional feature. Jumpers not noted are for test purposes only.

  • Page 47: X5Dpr-8G2+ Quick Reference

    X5DPR-8G2+ Quick Reference Jumper Description JBT1 CMOS Clear Speaker Enable (Pins 6-7) JPA1/JPA2 SCSI Channel A/B Termination Open (Terminated) GLAN1/GLAN2 Enable/Disable VGA Enable/Disable Power Fail Alarm En/Disable JP22 SCSI Enable/Disable JP37/WD Watch Dog Enable/Disable JP38 Front Side Bus Speed Connector Description ATX POWER Primary ATX Power Connector...

  • Page 48: Connector Definitions

    UPERSERVER 6013P-8+ User’s Manual Connector Definitions ATX Power Connection power supply meets the SSI (Superset ATX) 20- pin specification. Make sure that the orientation of the connector is correct. See the table on the right for pin definitions. PWR_SEC Connection In addition to the Primary ATX power connector (above), the Secondary 12v 8-pin J15 connec-...

  • Page 49: Nic1 Led

    NIC1 LED The NIC1 (Network Interface Con- troller) LED connection is located on pins 11 and 12 of JF2. Attach the NIC1 LED cable to display net- work activity. Refer to the table on the right for pin definitions. NIC2 LED The NIC2 (Network Interface Con- troller) LED connection is located on pins 9 and 10 of JF2.

  • Page 50: Power Button

    UPERSERVER 6013P-8+ User’s Manual Power Button The Power Button connection is located on pins 1 and 2 of JF2. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (see the Power Button Mode setting in BIOS).

  • Page 51: Serial Ports

    Serial Ports The COM1 serial port is located under the parallel port. table on the right for pin defini- tions. The COM2 connector is a header on the serverboard (see serverboard layout for location). ATX PS/2 Keyboard and PS/2 Mouse Ports The ATX PS/2 keyboard and the PS/ 2 mouse are located on J29.

  • Page 52: Power Led/Speaker/Nmi

    Note: This feature is only avail- able when using Supermicro power supplies and so does not apply to the 6013P-8+. Chassis Intrusion A Chassis Intrusion header is lo- cated at JL1. Attach the appropri- ate cable to inform you of a chas- sis intrusion.

  • Page 53: Wake-On-Lan

    Wake-On-LAN The Wake-On-LAN header is des- ignated as WOL. See the table on the right for pin definitions. must enable the LAN Wake-Up set- ting in BIOS to use this feature. You must also have a LAN card with a Wake-on-LAN connector and cable.

  • Page 54: Jumper Settings

    UPERSERVER 6013P-8+ User’s Manual Jumper Settings Explanation of Jumpers To modify the operation of the serverboard, jumpers can be used choose optional settings. create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.

  • Page 55: Glan Enable/Disable

    GLAN Enable/Disable Change the setting of jumper JD4 to enable or disable the onboard GLAN ports (GLAN1 and GLAN2) on the serverboard. See the table on the right for jumper settings. The default setting is enabled VGA Enable/Disable JP4 allows you to enable or disable the VGA port.

  • Page 56: Scsi Termination Enable/Disable

    UPERSERVER 6013P-8+ User’s Manual SCSI Termination Enable/ Disable Jumpers JPA1 and JPA2 allow you to enable or disable termination for the individual SCSI channels. Jumper JPA1 controls SCSI channel A and JPA2 controls SCSI channel The normal (default) setting is open to enable (teminate) both SCSI channels.

  • Page 57: 5-10 Onboard Indicators

    5-10 Onboard Indicators GLAN1/GLAN2 LEDs The Ethernet ports (located beside the VGA port) have two LEDs. See the table on the right for the functions associated with these LEDs. On each Gb LAN port, the yellow LED indicates activity while the other LED may be green, or- ange or off to indicate the speed of the connection.

  • Page 58: Floppy Connector

    UPERSERVER 6013P-8+ User’s Manual 5-11 Floppy/Hard Disk Drive and SCSI Connections Note the following when connecting the floppy and hard disk drive cables: • The floppy disk drive cable has seven twisted wires. • A red mark on a wire typically designates the location of pin 1. •...

  • Page 59: Ide Connectors

    IDE Connectors There are no jumpers to configure the onboard IDE#1 and #2 connectors. See the table on the right for pin definitions. Ultra320 SCSI Connectors Refer to the table on the right for the pin defi- nitions of the Ultra320 SCSI connectors lo- cated at JA1 and JA2.

  • Page 60: 5-12 Installing Software Drivers

    5-12 Installing Software Drivers After all the hardware has been installed you must install the software drivers. The necessary drivers are all included on the Supermicro CD that came packaged with your serverboard. CD-ROM drive, the display shown in Figure 5-8 should appear.

  • Page 61: Chapter 6: Advanced Chassis Setup

    Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC813S chassis. For component installation, follow the steps in the order given to eliminate the most common problems encoun- tered. If some steps are unnecessary, skip ahead to the next step. Tools Required The only tool you will need to install components and perform maintenance is a Philips screwdriver.

  • Page 62: Control Panel

    UPER ERVER 6013P-8+ Manual Slim-Line CD-ROM Drive Figure 6-1. Control Panel The control panel (located on the front of the chassis) must be connected to the JF2 connector on the serverboard to provide you with system status indications. A ribbon cable has bundled these wires together to simplify the connection.

  • Page 63: System Fans

    Installing a new fan: Replace the failed fan with an identical 10-cm, 12 volt fan (available from Supermicro: p/n FAN-0059). Install the new fan in its proper place in the chassis by positioning it on the two mounting posts. Secure the fan to the chassis with the screws you removed previously, then attach the fan wires to the same chassis fan header you removed it from.

  • Page 64: Drive Bay Installation/Removal

    UPER ERVER 6013P-8+ Manual 10-cm Blower Fans Figure 6-2. System Cooling Fans (with optional front bezel shown) Drive Bay Installation/Removal Removing the Front Bezel If your system has a front bezel (optional) attached to the chassis, you must first remove it to gain access to the drive bays. To remove the bezel, first unlock the front of the chassis then press the release knob (see Figure 6-3).

  • Page 65: Accessing The Drive Bays

    Figure 6-3. Removing the Front Bezel Accessing the Drive Bays SCSI Drives: Because of their hotswap capability, you do not need to access the inside of the chassis or power down the system to install or replace SCSI drives. Proceed to the next step for instructions. CD-ROM/Floppy Disk Drives: For installing/removing a CD-ROM or floppy disk drive, you will need to gain access to the inside of the 6013P-8+ by removing the top cover of the chassis.

  • Page 66: Scsi Drive Installation

    UPER ERVER 6013P-8+ Manual SCSI Drive Installation Mounting a SCSI drive in a drive carrier: The SCSI drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the SCSI drive bays.
  • Page 67 Installing/removing hot-swap SCSI drives: The SCSI drive bays are located in the front of the chassis, making them easily accessible for installation and removal. The SCSI drives are hot-swap units, meaning that they can be installed and removed while the system is running.

  • Page 68: Cd-Rom And Floppy Drive Installation

    UPER ERVER 6013P-8+ Manual CD-ROM and Floppy Drive Installation The top cover of the chassis must be opened to gain full access to the CD-ROM and floppy drive bays. The 6013P-8+ accomodates only slim CD-ROM drives. Side mounting brackets are needed to mount a slim CD-ROM drive in the 6013P- 8+ server.

  • Page 69: Power Supply

    If the power supply unit fails, the system will shut down and you will need to replace the unit. Replacement units can be ordered directly from Supermicro (see contact information in the Preface). As there is only one power supply unit in the 6013P-8+, power must be completely removed from the server before removing and replacing the power supply unit for whatever reason.
  • Page 70 UPER ERVER 6013P-8+ Manual Figure 6-6. Removing/Replacing the Power Supply (with optional front bezel shown) 6-10...

  • Page 71: Chapter 7: Bios

    Please refer Manual Download <http://www.supermicro.com> for any changes to BIOS that may not be reflected in this manual. System BIOS The BIOS is the Basic Input Output System used in all IBM and PS/2 ®...

  • Page 72: Running Setup

    UPER ERVER 6013P-8+ Manual Running Setup *Default settings are in bold text unless otherwise noted. The BIOS setup options described in this section are selected by choos- ing the appropriate text from the main BIOS Setup screen. All displayed text is described in this section, although the screen display is often all you need to understand how to set the options (see on next page).

  • Page 73: Main Bios Setup Menu

    Main BIOS Setup Menu Main Advanced System Time System Date Legacy Diskette A: Legacy Diskette B: ! Primary Master ! Primary Slave ! Secondary Master ! Secondary Slave System Memory Extended Memory F1 Help Select Item Esc Exit Select Menu Main Setup Features System Time To set the system date and time, key in the correct information in the...

  • Page 74: Legacy Diskette A

    UPER ERVER 6013P-8+ Manual Legacy Diskette A This setting allows the user to set the type of floppy disk drive installed as diskette A. The options are Disabled, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb 3.5 in, 1.44/1.25MB, 3.5 in and 2.88MB 3.5 in. Legacy Diskette B This setting allows the user to set the type of floppy disk drive installed as diskette B.
  • Page 75 Type Selects the type of IDE hard drive. The options are Auto (allows BIOS automatically determine the hard drive's capacity, number of heads, etc.), a number from 1-39 to select a predetermined type of hard drive, CD-ROM and ATAPI Removable. Multi-Sector Transfers Select the number of transfer sectors.

  • Page 76: Advanced Setup

    UPER ERVER 6013P-8+ Manual Advanced Setup Choose Advanced from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. The items with a triangle beside them have sub menus that can be accessed by highlighting the item and pressing <Enter>.
  • Page 77 Quiet Boot This setting allows you to Enable or Disable the diagnostic screen during boot-up. Legacy USB Support This setting allows you to enable support for Legacy USB devices. The settings are Enabled and Disabled. Reset Configuration Data Options are Yes and No. Choosing Yes will clear the Extended System Configuration Data (ECSD).
  • Page 78 UPER ERVER 6013P-8+ Manual Interrupt Select the IRQ (interrupt request) for serial port A. Options are IRQ3 and IRQ4. Serial Port B This setting allows you to assign control of serial port B. The options are Enabled (user defined), Disabled, Auto (BIOS controlled) and OS Controlled.
  • Page 79 Mode Specify the parallel port mode. Options are Output Only, Bi-directional, EPP and ECP. DMA Channel Specify the DMA channel. Options are DMA1 and DMA3. Floppy Disk Controller This setting allows you to assign control of the floppy disk controller. The options are Enabled (user defined), Disabled and Auto (BIOS controlled).
  • Page 80 UPER ERVER 6013P-8+ Manual ECC Configuration This setting lets you enable or disable ECC (Error Correction and Checking). The options are ECC and Disabled. ECC Error Type This setting lets you select which type of interrupt will be activated as a result of an ECC error.
  • Page 81 Split Lock Operations This setting allows you to Enable or Disable split lock operations. Hyper-threading This setting allows you to Enable or Disable hyper-threading. Enabling hyper-threading results in increased CPU performance. L3 Cache This setting allows you to Enable or Disable the L3 cache. ! ! ! ! ! DMI Event Logging Access the submenu to make changes to the following settings.
  • Page 82 UPER ERVER 6013P-8+ Manual Clear All DMI Event Logs Highlight this item and press <Enter> to clear all DMI event logs. ! ! ! ! ! Console Redirection Access the submenu to make changes to the following settings. COM Port Address Specifies to redirect the console to On-board COMA or On-board COMB.

  • Page 83: Security

    Security Choose Security from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. displayed by highlighting the setting using the arrow keys and pressing <Enter>. All Security BIOS settings are described in this section. Main Advanced Supervisor Password Is:...
  • Page 84 UPER ERVER 6013P-8+ Manual Set Supervisor Password When the item "Set Supervisor Password" is highlighted, hit the <Enter> key. When prompted, type the Supervisor's password in the dialogue box to set or to change supervisor's password, which allows access to BIOS. Set User Password When the item "Set User Password"...

  • Page 85: Power

    Power Choose Power from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Power setting options are displayed by highlighting the setting using the arrow keys and pressing <Enter>. All Power BIOS settings are described in this section. Main Advanced ACPI Mode:...
  • Page 86 UPER ERVER 6013P-8+ Manual Standby Timeout Use this setting to specify the period of system inactivity to transpire before entering the standby state. Options are Off, 16 sec, 32 sec, 48 sec, 1 min, 2 min, 4 min and 8 min. Auto Suspend Timeout Use this setting to specify the period of system inactivity to transpire before entering the suspend state.

  • Page 87: Boot

    Boot Choose Boot from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Highlighting a setting with a + or - will expand or collapse that entry. See details on how to change the order and specs of boot devices in the Item Specific Help window.
  • Page 88 UPER ERVER 6013P-8+ Manual +Hard Drive Highlight and press <Enter> to expand the field. See details on how to change the order and specs of hard drives in the Item Specific Help w i n d o w . Network Boot See details on how to change the order and specs of network boot devices in the Item Specific Help window.

  • Page 89: Pir

    Choose PIR from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. The items with a triangle beside them have sub menus that can be accessed by highlighting the item and pressing <Enter>. PIR stands for "Processor Info ROM", which allows BIOS to read certain information from the processors.
  • Page 90 UPER ERVER 6013P-8+ Manual ! ! ! ! ! Processor Info ROM Data Highlight this and hit <Enter> to see PIR data on the following items: Header Info Processor Data Processor Core Data L3 Cache Data Package Data Part Number Data Thermal Reference Data Feature Data Other Data...

  • Page 91: Exit

    Chassis Fan 2 Processor Vcore 3.3V Standby 3.3V Vcc 5V Vcc 12V Vcc 1.8V Vcc -12V Vcc Exit Choose Exit from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. All Exit BIOS settings are described in this section.
  • Page 92 UPER ERVER 6013P-8+ Manual Exit Saving Changes Highlight this item and hit <Enter> to save any changes you made and to exit the BIOS Setup utility. Exit Discarding Changes Highlight this item and hit <Enter> to exit the BIOS Setup utility without saving any changes you may have made.

  • Page 93: Appendix A: Bios Post Messages

    Appendix A: BIOS POST Messages Appendix A BIOS POST Messages During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem is found, the BIOS will activate an alarm or display a message. The following is a list of such BIOS messages.
  • Page 94 UPER ERVER 6013P-8+ Manual System CMOS checksum bad - Default configuration used System CMOS has been corrupted or modified incorrectly, perhaps by an application program that changes data stored in CMOS. The BIOS installed Default Setup Values. If you do not want these values, enter Setup and enter your own values.
  • Page 95 Appendix A: BIOS POST Messages System cache error - Cache disabled RAM cache failed and BIOS disabled the cache. On older boards, check the cache jumpers. You may have to replace the cache. See your dealer. A disabled cache slows system performance considerably. CPU ID: CPU socket number for Multi-Processor error.
  • Page 96 UPER ERVER 6013P-8+ Manual Fixed Disk n Fixed disk n (0-3) identified. Invalid System Configuration Data Problem with NVRAM (CMOS) data. I/O device IRQ conflict I/O device IRQ conflict error. PS/2 Mouse Boot Summary Screen: PS/2 Mouse installed. nnnn kB Extended RAM Passed Where nnnn is the amount of RAM in kilobytes successfully tested.
  • Page 97 Appendix A: BIOS POST Messages Parity Check 2 nnnn Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????. Press <F1> to resume, <F2> to Setup, <F3> for previous Displayed after any recoverable error message.
  • Page 98 UPER ERVER 6013P-8+ Manual Notes...

  • Page 99: Appendix B: Bios Post Codes

    This section lists the POST (Power On Self Test) codes for the PhoenixBIOS. POST codes are divided into two categories: recoverable and terminal. Recoverable POST Errors When a recoverable type of error occurs during POST, the BIOS will display an POST code that describes the problem. following beep codes: 1 long and two short beeps - video configuration error 1 continuous long beep - no memory detected...
  • Page 100 UPER ERVER 6013P-8+ Manual POST Code Description Initialize cache before memory Auto size 8254 timer initialization 8237 DMA controller initialization Reset Programmable Interrupt Controller 1-3-1-1 Test DRAM refresh 1-3-1-3 Test 8742 Keyboard Controller Set ES segment register to 4 GB Auto size DRAM Initialize POST Memory Manager Clear 512 kB base RAM...
  • Page 101 POST Code Description Test RAM between 512 and 640 kB Test extended memory Test extended memory address lines Jump to UserPatch1 Configure advanced cache registers Initialize Multi Processor APIC Enable external and CPU caches Setup System Management Mode (SMM) area Display external L2 cache size Load custom defaults (optional) Display shadow-area message...
  • Page 102 UPER ERVER 6013P-8+ Manual POST Code Description Check for SMART Drive (optional) Shadow option ROMs Set up Power Management Initialize security engine (optional) Enable hardware interrupts Determine number of ATA and SCSI drives Set time of day Check key lock Initialize typematic rate Erase F2 prompt Scan for F2 key stroke...
  • Page 103 POST Code Description Re-map I/O and memory for PCMCIA Initialize digitizer and display message Unknown interrupt The following are for boot block in Flash ROM POST Code Description Initialize the chipset Initialize the bridge Initialize the CPU Initialize system timer Initialize system I/O Check force recovery boot Checksum BIOS ROM...
  • Page 104 UPER ERVER 6013P-8+ Manual Notes...

  • Page 105: Appendix C: System Specifications

    604 or 603-pin processors of up to 3.20 GHz at a front side (system) bus speed of 533/400 MHz Note: Please refer to the support section of our web site for a complete listing of supported processors. (http://www.supermicro.com/TechSupport.htm) Chipset Intel E7501 chipset BIOS ®...
  • Page 106 UPER ERVER 6013P-8+ User's Manual Peripheral Drive Bays One (1) 3.5" slim floppy drive One (1) slim CD-ROM drive Four (4) 3.5 x 1" drive bays (for SCSI drives) Expansion Slots (provided with butterfly riser card) One (1) 64-bit 133 MHz standard PCI slot and one (1) 64-bit 66 MHz low profile PCI slot Motherboard Model: X5DPR-8G2+ (Extended ATX form factor)
  • Page 107 Appendix C: System Specifications Operating Environment Operating Temperature: 0 to +35 degrees C Non-operating Temperature: -35 to +60 degrees C Operating Relative Humidity: 5 to 90%, non-condensing Non-operating Relative Humidity: 5 to 95%, non-condensing Regulatory Compliance Electromagnetic Emissions: FCC Class B, EN 55022 Class B, EN 61000-3-2 & EN 61000-3-3, CISPR 22 Class B Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,...
  • Page 108 UPER ERVER 6013P-8+ User's Manual Notes...
