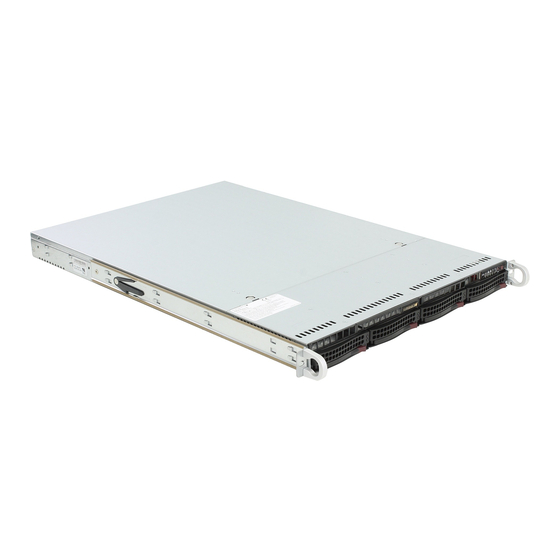

Supermicro 6018R-WTR User Manual

Superserver
Hide thumbs
Table of Contents

Advertisement

Quick Links

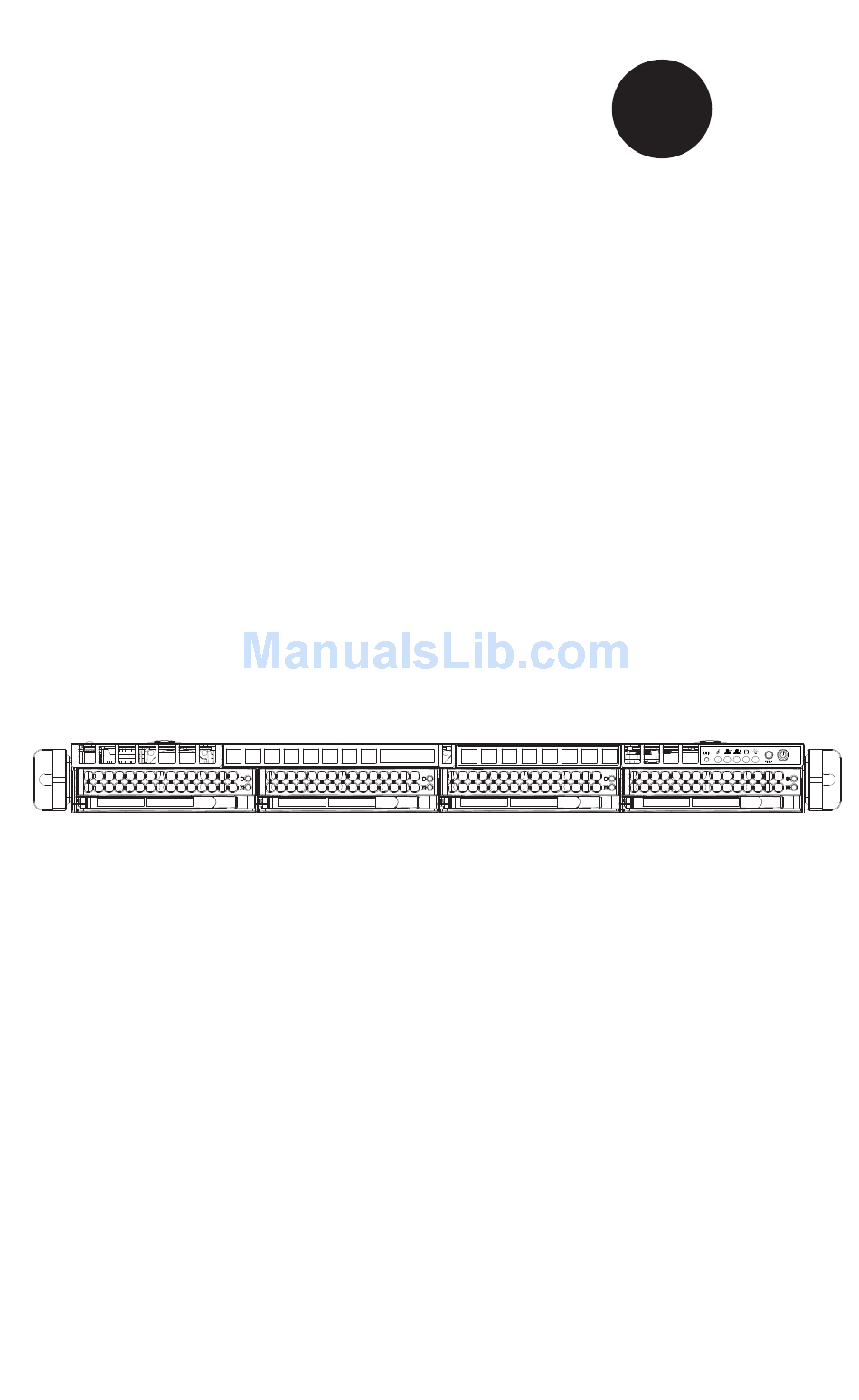

S
®
UPER
SUPERSERVER
6018R-WTR
6018R-WTRT
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6018R-WTR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supermicro 6018R-WTR

Summary of Contents for Supermicro 6018R-WTR

  • Page 1 ® UPER SUPERSERVER 6018R-WTR 6018R-WTRT USER'S MANUAL Revision 1.0...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Manual

    Please refer to our web site for updates on supported processors. The only difference between the 6018R-WTR and 6018R-WTRT servers is that the 6018R-WTR use 1Gps dual LAN ports and the 6018R-WTRT uses 10Gps dual LAN ports. Manual Organization Chapter 1: Introduction The fi...
  • Page 4 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Chapter 5: Advanced Serverboard Setup This chapter provides detailed information on the X10DRW-i(T) serverboard, including the locations and functions of connectors, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfi...
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 SAS/SATA......................1-2 PCI Expansion Slots ..................1-3 Rear I/O Ports ....................1-3 Server Chassis Features ................1-3 System Power ....................
  • Page 7 Table of Contents Installing the Outer Rails ................. 2-6 Installing the Server into the Rack ..............2-7 Checking the Serverboard Setup ..............2-8 Checking the Drive Bay Setup ................ 2-9 Chapter 3 System Interface Overview ......................3-1 Control Panel Buttons ..................3-2 Reset .......................
  • Page 8 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Chapter 5 Advanced Serverboard Setup Handling the Serverboard ................5-1 Precautions ..................... 5-1 Unpacking ....................... 5-1 Connecting Cables ..................5-2 Connecting Data Cables ................. 5-2 Connecting Power Cables ................5-2 Connecting the Control Panel ................. 5-3 Rear I/O Ports ....................
  • Page 9 Table of Contents Jumper Settings .................... 5-21 Explanation of Jumpers ................5-21 CMOS Clear ..................... 5-21 LAN Enable/Disable ................. 5-22 Watch Dog Enable/Disable ..............5-22 VGA Enable ....................5-22 BMC Enable .................... 5-22 C Bus to PCI-E Slots ................5-23 Manufacturer Mode Select ...............
  • Page 10 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Chapter 7 BIOS Introduction ...................... 7-1 Starting BIOS Setup Utility ................7-1 How To Change the Confi guration Data ............7-2 Starting the Setup Utility ................. 7-2 Main Setup ...................... 7-2 Advanced Setup Confi gurations..............7-3 Event Logs ....................

  • Page 11: Chapter 1 Introduction

    Chapter 1 Introduction Overview The SuperServer 6018R-WTR(T) is a high-end server comprised of two main subsystems: the SC815TQ-R706WB 1U server chassis and the X10DRW-i(T) dual processor serverboard. Please refer to our web site for information on operating systems that have been certifi ed for use with the system (www.supermicro.com).

  • Page 12: Serverboard Features

    If you have any questions, please contact our support team at: support@supermico.com Serverboard Features The SuperServer 6018R-WTR(T) is built around the X10DRW-i(T), a dual processor serverboard based on the Intel PCH-C612 chipset and designed to provide maximum performance. Below are the main features of the X10DRW-i(T),. (See Figure 1-1 for a block diagram of the chipset.)

  • Page 13: Pci Expansion Slots

    The SC815TQ-R706WB chassis was designed to support four 3.5" hot-swap SATA hard drives. With a conversion kit (P/N: MCP-220-00043-0N) you can support 2.5" drives. Note: For the 6018R-WTR, the hard drives are connected to four onboard SATA connections from the SCU Controller. PCI Expansion Slots A riser card (RSC-R1UW-2E16-O-P) on the left side of the chassis can support two PCI-E x16 add-on cards.

  • Page 14: Front Control Panel

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Front Control Panel The chassis' control panel provides you with system monitoring and control. LEDs indicate system power, HDD activity, network activity (two) and UID/overheat/fan fail/power fail. A main power button, a system reset button and a UID button are also included.
  • Page 15 Chapter 1: Introduction Figure 1-1. Intel PCH-C612 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. SXB2 RIGHT SLOT PCIE 3.0 x16 SXB1B (lower) Left SLOT WIO Slots PCIE 3.0 x16 SXB1A SXB2 PCIE x16 Rear...

  • Page 16: Contacting Supermicro

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 17: Chapter 2 Server Installation

    Decide on a suitable location for the rack unit that will hold the SuperServer 6018R-WTR(T). It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fi elds are generated.

  • Page 18: Choosing A Setup Location

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Choosing a Setup Location • Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches) and approximately 30 inches of clearance in the back of the rack to allow for suffi cient airfl ow and ease in servicing.This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like).

  • Page 19: Rack Mounting Considerations

    Chapter 2: Server Installation • Install the heaviest server components on the bottom of the rack fi rst, and then work up. • Use a regulating uninterruptible power supply (UPS) to protect the server from power surges, voltage spikes and to keep your system operating in case of a power failure.

  • Page 20: Circuit Overloading

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

  • Page 21: Installing The System Into A Rack

    Chapter 2: Server Installation Installing the System into a Rack This section provides information on installing the SuperServer 6018R-WTR(T) into a rack unit with the rack rails provided. If the system has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6.

  • Page 22: Installing The Outer Rails

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Installing the Outer Rails Begin by measuring the distance from the front rail to the rear rail of the rack. Attach a short bracket to the front side of the right outer rail and a long bracket to the rear side of the right outer rail.

  • Page 23: Installing The Server Into The Rack

    Chapter 2: Server Installation Installing the Server into the Rack You should now have rails attached to both the chassis and the rack unit. The next step is to install the server into the rack. Do this by lining up the rear of the chassis rails with the front of the rack rails.

  • Page 24: Checking The Serverboard Setup

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Checking the Serverboard Setup After you install the SuperServer 6018R-WTR(T) in the rack, you will need to open the top cover to make sure the serverboard is properly installed and all the connections have been made.

  • Page 25: Checking The Drive Bay Setup

    Chapter 2: Server Installation Checking the Components 1. You may have one or two processors already installed in the serverboard. Each processor needs its own heatsink. See Chapter 5 for instructions on processor and heatsink installation. 2. Your server system may have come with system memory already installed. Make sure all DIMMs are fully seated in their slots.
  • Page 26 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Notes 2-10...

  • Page 27: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the SATA drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specifi...

  • Page 28: Control Panel Buttons

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Control Panel Buttons There are three push-buttons located on the front of the chassis: a reset button, a UID button and a power on/off button. Reset Use the reset button to reboot the system. Power This is the main power button, which is used to apply or turn off the main system power.

  • Page 29: Control Panel Leds

    Chapter 3: System Interface Control Panel LEDs The control panel located on the front of the SC815TQ-R706WB chassis has fi ve LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 30: Power

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating. Hard Drive Carrier LEDs Each hard drive carrier has two LEDs. • Green: When illuminated, the green LED on the front of the drive carrier indicates drive activity.

  • Page 31: Chapter 4 Standardized Warning Statements For Ac Systems

    Only certifi ed technicians should attempt to install or confi gure components. Read this appendix in its entirety before installing or confi guring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Defi nition Warning! This warning symbol means danger.
  • Page 32 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 33 Warning Statements for AC Systems ‫ﺟﺴﺪﻳﺔ‬ ‫ﺍﺻﺎﺑﺔ‬ ‫ﺗﺘﺴﺒﺐ ﻓﻲ‬ ‫ﺣﺎﻟﺔ ﻳﻤﻜﻦ ﺃﻥ‬ ‫ﺍﻧﻚ ﻓﻲ‬ ‫ﺧﻄﺮ‬ ‫ﻳﻌﻨﻲ‬ ‫ﻫﺬﺍ ﺍﻟﺮﻣﺰ‬ !‫ﺗﺤﺬﻳﺮ‬ ‫ﺍﻟﺪﻭﺍﺋﺮ‬ ‫ﺑﺎﻟﻤﺨﺎﻁﺮ ﺍﻟﻨﺎﺟﻤﺔ ﻋﻦ‬ ‫ﻦ ﻋﻠﻰ ﻋﻠﻢ‬ ، ‫ﻛ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﺗﻌﻤﻞ ﻋﻠﻰ ﺃﻱ‬ ‫ﻗﺒﻞ ﺃﻥ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬ ‫ﺣﻮﺍﺩﺙ‬ ‫ﺃﻱ‬ ‫ﻭﻗﻮﻉ‬ ‫ﻤﻨﻊ‬ ‫ﻟ‬ ‫ﺍﻟﻮﻗﺎﺋﻴﺔ‬...

  • Page 34: Installation Instructions

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 35: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 36: Power Disconnection Warning

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL ‫ﻓﻲ‬ ‫ﺍﻟﺘﻲ ﺗﻢ ﺗﺜﺒﻴﺘﻬﺎ‬ ‫ﻣﻦ ﺍﻟﺪﻭﺍﺋﺮﺍﻟﻘﺼﻴﺮﺓ‬ ‫ﺍﻟﺤﻤﺎﻳﺔ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﻳﻌﺘﻤﺪ ﻋﻠﻰ‬ ‫ﻫﺬﺍ ﺍﻟﻤﻨﺘﺞ‬ ‫ﺍﻟﻤﺒﻨﻰ‬ ‫ﺃﻛﺜﺮ ﻣﻦ‬ ‫ﻟﻴﺲ‬ ‫ﻮﻗﺎﺋﻲ‬ ‫ﺍﻟ‬ ‫ﺍﻟﺠﻬﺎﺯ‬ ‫ﺗﻘﻴﻴﻢ‬ ‫ﺃﻥ‬ ‫ﺗﺄﻛﺪ ﻣﻦ‬ 20A, 250V 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지...
  • Page 37 Chapter 4: Warning Statements for AC Systems Warnung Das System muss von allen Quellen der Energie und vom Netzanschlusskabel getrennt sein, das von den Spg.Versorgungsteilmodulen entfernt wird, bevor es auf den Chassisinnenraum zurückgreift, um Systemsbestandteile anzubringen oder zu entfernen. ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema.

  • Page 38: Equipment Installation

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Equipment Installation Warning! Only trained and qualifi ed personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifi...

  • Page 39: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalifi ceerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 40: Battery Handling

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .('‫כלי אבטחה בלבד )מפתח, מנעול וכד‬ ‫ﻣﺤﻈﻮﺭﺓ‬ ‫ﻣﻨﺎﻁﻖ‬ ‫ﻟﺘﺮﻛﻴﺒﻬﺎ ﻓﻲ‬ ‫ﻫﺬﻩ ﺍﻟﻮﺣﺪﺓ‬ ‫ﺗﺨﺼﻴﺺ‬ ‫ﺗﻢ‬ ،‫ﺃﺩﺍﺓ ﺧﺎﺻﺔ‬ ‫ﻣﻦ ﺧﻼﻝ ﺍﺳﺘﺨﺪﺍﻡ‬...
  • Page 41 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 42: Redundant Power Supplies

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 43: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 44: Comply With Local And National Electrical Codes

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Attention Lorsque le système est en fonctionnement, des tensions électriques circulent sur le fond de panier. Prendre des précautions lors de la maintenance. ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬...

  • Page 45: Product Disposal

    Chapter 4: Warning Statements for AC Systems ¡Advertencia! La instalacion del equipo debe cumplir con las normas de electricidad locales y nacionales.Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬...

  • Page 46: Easy Swap Fan Warning

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen. ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement.
  • Page 47 Chapter 4: Warning Statements for AC Systems 当您从机架移除风扇装置，风扇可能仍在转动。小心不要将手指、螺丝起子和其他 物品太靠近风扇 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 48: Power Cable And Ac Adapter

    fi re. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certifi ed cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター...
  • Page 49 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifi és qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 50 Elektrisch apparaat en veiligheidsinformatiebladen wet verbiedt het gebruik van UL of CSA gecertifi ceerde kabels die UL of CSA die op de code voor andere elektrische apparaten dan de producten die door Supermicro alleen.

  • Page 51: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference. Remember to completely close the chassis when you have fi...

  • Page 52: Connecting Cables

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Connecting Cables Now that the serverboard is installed, the next step is to connect the cables to the board. These include the data cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed to prevent them from blocking the fl...

  • Page 53: Connecting The Control Panel

    Chapter 5: Advanced Serverboard Setup Connecting the Control Panel JF1 contains header pins for various front control panel connectors. See Figure 5-1 for the pin locations of the various front control panel buttons and LED indicators. All JF1 wires have been bundled into a single cable to simplify this connection. Make sure the red wire plugs into pin 1 as marked on the board.

  • Page 54: Rear I/O Ports

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Rear I/O Ports The I/O ports are in conformance with the PC 99 specifi cation. See Figure 5-2 below for the locations of the various I/O ports. Figure 5-2. Rear I/O Ports Rear I/O Ports VGA Port USB 3.0 Port 0...

  • Page 55: Installing The Processor And Heatsink

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro web site for updates on CPU support. Installing an LGA 2011 Processor Press down on the lever labeled 'Close 1st' 1.
  • Page 56 SUPERSERVER 6018R-WTR(T) USER'S MANUAL 3. With the lever labeled 'Close 1st' fully retracted, gently push down on the 'Open 1st' lever to open the load plate. Lift the load plate to open it completely. Gently push down to pop the load plate open.
  • Page 57 Chapter 5: Advanced Serverboard Setup Caution: You can only install the CPU to the socket in one direction. Make sure that the CPU is properly inserted into the socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the load plate again and double-check that the CPU is aligned properly.

  • Page 58: Installing And Removing A Passive Cpu Heatsink

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Installing and Removing a Passive CPU Heatsink 1. Install the 1U passive CPU heatsink part number SNK-P0047PSC or SNK- P0057PSC in the CPU1 location with the air tunnel facing to the right (looking from the front).

  • Page 59: Installing Memory

    Chapter 5: Advanced Serverboard Setup Installing Memory Caution! Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The X10DRW-i(T) supports up to 1024 GB of ECC registered (RDIMM) or ECC Load Reduced (LRDIMM) DDR4 2133/1866/1600/1333 MHz speed, 1 GB, 2 GB, 4 GB, 8 GB, 16 GB, 32 GB and 64 GB size @ 1.2V voltage SDRAM in sixteen (16) DIMM sockets.
  • Page 60 SUPERSERVER 6018R-WTR(T) USER'S MANUAL DIMM Module Population Table Follow the tables below when installing memory. Processors and their Corresponding Memory Modules CPU# Corresponding DIMM Modules CPU 1 DIMMA1 DIMMB1 DIMMC1 DIMMD1 DIMMA2 DIMMB2 DIMMC2 DIMMD2 CPU2 DIMME1 DIMMF1 DIMMG1 DIMMH1...

  • Page 61: Other Important Notes And Restrictions

    64GB 2133 MHz 2133 MHz 2133 MHz Note: Please refer to our website @ http://www.supermicro.com/products/serverboard for the latest memory support updates. Other Important Notes and Restrictions • For the memory modules to work properly, please install DIMM modules of the same type, same speed and same operating frequency.

  • Page 62: Serverboard Details

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Serverboard Details Figure 5-5. X10DRW-i(T) Layout LAN1 USB2/3(3.0)USB0/1(3.0) LAN2 UID-SW CTRL IPMI_LAN X10DRW-i(T) Rev. 1.01 CPU2 CLOSE 1st OPEN 1st BIOS LICENSE CPU1 IPMI CLOSE 1st Flash BIOS OPEN 1st I-SGPIO2 I-SGPIO1 JBT1 LED2 JPME2 JVR1...
  • Page 63 Chapter 5: Advanced Serverboard Setup X10DRW-i(T) Connectors Connectors Description AOM Slot (J35) PCI-E 3.0 x16 Add-On-Module (AOM) slot for the mezzanine HBA card Battery (JBAT1) Onboard CMOS Battery (See Chpt. 3 for used battery disposal) COM1 Backplane COM port CPU/System fan headers (Fan1-Fan4), PCH/Peripheral fan headers (FanA- Fan1-4, FanA/B FanB) Front_Panel_Control header...
  • Page 64 SUPERSERVER 6018R-WTR(T) USER'S MANUAL X10DRW-i(T) Jumpers Jumper Description Default Setting JBT1 Clear CMOS See Chapter 3 C1/JI SMB to PCI-E slots Pins 2-3 (Disabled) JPB1 BMC Enable Pins 1-2 (Enabled) JPG1 VGA Enable Pins 1-2 (Enabled) GLAN1/GLAN2 Enable (X10DRW-i) JPL1...

  • Page 65: Connector Defi Nitions

    Chapter 5: Advanced Serverboard Setup Connector Defi nitions Power Connectors ATX Power 24-pin Connector Pin Defi nitions (JPWR1) A 24-pin main power supply connector Pin# Defi nition Pin # Defi nition (JPWR1), and two 8-pin CPU power +3.3V +3.3V connectors (JPWR2/JPWR3) are located on the serverboard.

  • Page 66: Reset Button

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Reset Button Reset Button Pin Defi nitions (JF1) The Reset Button connection is located Pin# Defi nition on pins 3 and 4 of JF1. Attach it to a Reset hardware reset switch on the computer Ground case.

  • Page 67: Power Led

    Chapter 5: Advanced Serverboard Setup Power LED Power LED Pin Defi nitions (JF1) The Power LED connection is located Pin# Defi nition on pins 15 and 16 of JF1. Refer to the 3.3V table on the right for pin defi nitions. PWR LED NMI Button NMI Button...

  • Page 68: Universal Serial Bus (Usb)

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Universal Serial Bus (USB) BP USB (3.0) 0/1, 2/3 Pin Defi nitions Four USB 3.0 ports (USB 0/1, USB Pin# Description 2/3) are located on the I/O backpanel. VBUS In addition, an internal USB header, SSRX- located next to S-SATA0, also provides two USB 3.0 connections (USB 4/5) for...

  • Page 69: Unit Identifi Er Switch/Uid Led Indicator

    Note: UID can also be triggered via IPMI on the serverboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website @ http://www.supermicro. com. Internal Speaker Internal Buzzer Pin Defi nition The Internal Speaker (SP1) provides Pin# Defi...

  • Page 70: Power Smb (I C) Connector

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Power SMB (I C) Connector PWR SMB Pin Defi nitions Power System Management Bus (I Pin# Defi nition connector (JPI C1) monitors power Clock supply, fan and system temperatures. Data See the table on the right for pin defi...

  • Page 71: Jumper Settings

    Chapter 5: Advanced Serverboard Setup Jumper Settings Connector Pins Explanation of Jumpers To modify the operation of the Jumper serverboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two Setting pins to change the function of the connector.

  • Page 72: Lan Enable/Disable

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL LAN Enable/Disable LAN Enable/Disable Jumper Settings (JPL1) JPL1 enables or disables Gigabit_ Jumper Setting Defi nition LAN ports 1/2 on the X10DRW-i, and Pins 1-2 Enabled (default) 10G_LAN ports 1/2 on the X10DRW- Pins 2-3 Disabled iT.

  • Page 73: I 2 C Bus To Pci-E Slots

    Chapter 5: Advanced Serverboard Setup C Bus to PCI-E Slots C to PCI-E Jumper Setting Use Jumpers JI C1 and JI C2 to Jumper Setting Defi nition connect the System Management Bus Pins 1-2 Enabled C) to PCI-Express slots to improve PCI performance.

  • Page 74: Onboard Led Indicators

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL Onboard LED Indicators GLAN LEDs GLAN LED Link Speed Activity The LAN ports are located on the IO Backplane on the serverboard. Each Ethernet LAN port has two LEDs. The GLAN Activity Indicator yellow LED indicates activity. Link LED,...

  • Page 75: Onboard Power Led

    Parallel ATA. SATA_RXP See the table on the right for pin Ground defi nitions. Note: For more information on SATA HostRAID confi guration, please refer to the Intel SATA HostRAID User's Guide posted on our website @ ftp://ftp.supermicro. com.. 5-25...

  • Page 76: 5-11 Installing Software

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL 5-11 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO fi...

  • Page 77: Superdoctor 5

    CD on it allows you to view the entire contents. SuperDoctor 5 ® The Supermicro SuperDoctor 5 is a hardware and operating system services monitoring program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program monitors system health...
  • Page 78 Figure 5-8. SuperDoctor 5 Interface Display Screen (Remote Control) Note: The SuperDoctor 5 program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/nfo/sms_sd5.cfm. For Linux, we recommend that you use the SuperDoctor II application instead. 5-28...

  • Page 79: 5-12 Serverboard Battery

    Chapter 5: Advanced Serverboard Setup 5-12 Serverboard Battery Caution: There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 5-x). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).
  • Page 80 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Notes 5-30...

  • Page 81: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC815TQ-R706WB chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the next step.

  • Page 82: Control Panel

    System Fans Five 4-cm heavy duty counter-rotating fans provide the cooling for the SuperServer 6018R-WTR(T). Each fan unit is actually made up of two fans joined back-to- back, which rotate in opposite directions. This counter-rotating action generates exceptional airfl ow and works to dampen vibration levels. It is very important that the chassis top cover is properly installed and making a good seal in order for the cooling air to circulate properly through the chassis and cool the components.

  • Page 83: System Fan Failure

    3. Replace the failed fan with an identical 4-cm, 12 volt fan (available from Supermicro: p/n FAN-0086L4). 4. Push the new fan into the vacant space in the housing while making sure the arrows on the top of the fan (indicating air direction) point in the same...

  • Page 84: Drive Bay Installation/Removal

    Proceed to the next section for instructions. DVD-ROM Drive: For installing/removing a DVD-ROM drive, you will need to gain access to the inside of the SuperServer 6018R-WTR(T) by removing the top cover of the chassis. Proceed to the "DVD-ROM Drive Installation" section later in this chapter for instructions.

  • Page 85: Hard Drive Installation

    Chapter 6: Advanced Chassis Setup Hard Drive Installation The hard drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airfl ow for the drive bays. For this reason, even empty carriers without drives installed must remain in the chassis.

  • Page 86: Dvd-Rom Drive Installation

    The top cover of the chassis must be opened to gain full access to the DVD-ROM drive bay. The SuperServer 6018R-WTR(T) accomodates only slim-line DVD-ROM drives. Side mounting brackets are needed to mount a slim-line DVD-ROM drive in the SuperServer 6018R-WTR(T) server. You must power down the system before installing or removing a DVD-ROM drive.

  • Page 87: Power Supply

    The Universal Information LED on the control panel will blink slowly and remain so until the failed module has been replaced. Replacement modules can be ordered directly from Supermicro (see contact information in the Preface). The power supply modules have a hot-swap capability, meaning you can replace the failed module...
  • Page 88 Replace with the same model, which can be ordered directly from Supermicro (see Contact Information in the Preface). 1. First unplug the power cord from the failed power supply module (with RED LED lit up).

  • Page 89: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMI BIOS Setup utility for the X10DRW-i(T) It also provides the instructions on how to navigate the AMI BIOS Setup utility screens. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated. Starting BIOS Setup Utility To enter the AMI BIOS Setup utility screens, press the <Del>...

  • Page 90: How To Change The Confi Guration Data

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL How To Change the Confi guration Data The confi guration data that determines the system parameters may be changed by entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing <Delete> at the appropriate time during system boot.

  • Page 91: Advanced Setup Confi Gurations

    Chapter 7: BIOS Memory Information Total Memory This displays the amount of memory that is available in the system. Advanced Setup Confi gurations Use the arrow keys to select Advanced and press <Enter> to access the following submenu items: Boot Feature Quiet Boot Use this feature to select the bootup screen display between POST messages or the OEM logo.
  • Page 92 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Bootup Num-Lock Use this feature to set the Power-on state for the Numlock key. The options are Off and On. Wait For 'F1' If Error If this feature is set to Enabled, the system will wait until the 'F1' key is pressed when an error occurs.
  • Page 93 Chapter 7: BIOS CPU Confi guration This submenu displays the information of the CPU as detected by the BIOS. It also allows the user to confi gure the CPU settings. Socket 1 CPU Information/Socket 2 CPU Information This submenu displays the following information regarding the CPU installed in Socket 1 or Socket 2.
  • Page 94 SUPERSERVER 6018R-WTR(T) USER'S MANUAL RTID (Record Types IDs) This feature displays the total number of Record Type IDs for local and remote pools. The options are Optimal and Alternate. Hyper-threading Select Enabled to support Intel Hyper-threading Technology to enhance CPU performance.
  • Page 95 Chapter 7: BIOS DCU Streamer Prefetcher (Available when supported by the CPU) Select Enabled to support Data Cache Unite (DCU) prefetch to speed up data accessing and processing in the DCU to enhance CPU performance. The options are Disabled and Enabled. DCU IP Prefetcher Select Enabled for DCU (Data Cache Unit) IP Prefetcher support, which will prefetch IP addresses to enhance network connectivity and system performance.
  • Page 96 SUPERSERVER 6018R-WTR(T) USER'S MANUAL C1E Support (Available when Power Technology is set to Custom) Select Enabled to enable Enhanced C1 Power State to boost system performance. The options are Enabled and Disabled. CPU C3 Report (Available when Power Technology is set to Custom) Select Enabled to allow the BIOS to report the CPU C3 State (ACPI C2) to the operating system.
  • Page 97 Chapter 7: BIOS Long Duration Maintained This item displays the period of time (in seconds) during which long duration power is maintained. The default setting is 0. Recommended Short Duration Power Limit This item displays the short duration power settings (in watts) recommended by the manufacturer.
  • Page 98 SUPERSERVER 6018R-WTR(T) USER'S MANUAL ® Intel I/OAT Select Enabled to enable Intel I/OAT (I/O Acceleration Technology), which will significantly reduce CPU overhead by leveraging CPU architectural improvements and freeing the system resource up for other tasks. The options are Disabled and Enabled.
  • Page 99 Chapter 7: BIOS QPI (Quick Path Interconnect) Link Speed Mode Use this feature to select data transfer speed for QPI Link connections. The options are Fast and Slow. QPI Link Frequency Select Use this feature to select the desired QPI frequency. The options are Auto, 6.4 GT/s, 7.2 GT/s, and 8.0 GT/s.
  • Page 100 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Channel Interleaving This feature selects from the different channel interleaving methods. The options are Auto, 1 Way, 2 Way, 3, Way, and 4 Way. Rank Interleaving This feature allows the user to select a rank memory interleaving method. The options are Auto, 1 Way, 2 Way, 4, Way, and 8 Way.

  • Page 101: South Bridge

    Chapter 7: BIOS South Bridge This feature allows the user to confi gure the settings for the Intel PCH chip. PCH Information This feature displays the following PCH information. Name: This item displays the name of the PCH chip. Stepping: This item displays the PCH stepping. USB Devices: This item displays the USB devices detected by the BIOS.
  • Page 102 SUPERSERVER 6018R-WTR(T) USER'S MANUAL SATA Confi guration When this submenu is selected, the AMI BIOS automatically detects the presence of IDE or SATA devices and displays the following items. SATA Port0~SATA Port5: The AMI BIOS displays the status of each SATA port as detected by the BIOS.
  • Page 103 Chapter 7: BIOS SATA RAID Option ROM/UEFI Driver Select Enabled to boot the system from a SATA RAID device or a UEFI (Unifi ed Extensible Firmware Interface) device. The options are Enabled or Disabled. Port 0~5 Hot Plug Select Enabled to enable hot-plug support for a port specifi ed by the user. The options are Enabled and Disabled.
  • Page 104 SUPERSERVER 6018R-WTR(T) USER'S MANUAL ASPM Support This feature allows the user to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto to allow the system BIOS to automatically set the ASPM level for the system. Select Disabled to disable ASPM support. The options are Disabled and Auto.
  • Page 105 Chapter 7: BIOS  Super IO Confi guration Super IO Chip Displays the Super IO chip type. COM 1 Confi guration Serial Port Select Enabled to enable a serial port specifi ed by the user. The options are Enabled and Disabled. Device Settings This item displays the settings of Serial Port 1.

  • Page 106: Serial Port Console Redirection

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL SOL (Serial_Over_LAN) Device Mode Use this feature to select the desired mode for the SOL port. The options are Normal and High Speed. Serial Port 2 Attribute Use this feature to select the attribute for serial port 2. The options are SOL (Serial_On_LAN), and COM.
  • Page 107 Chapter 7: BIOS Data Bits Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8 (Bits). Parity A parity bit can be sent along with regular data bits to detect data transmission errors.
  • Page 108 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Putty Keypad Use this feature to select function key and keypad setting on Putty. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400. Redirection After BIOS POST If Always Enabled is selected, Legacy Console Redirection will be enabled for Legacy OS after BIOS POST (Power-On Self Test) is completed.

  • Page 109: Acpi Settings

    Chapter 7: BIOS Flow Control This feature allows the user to set the fl ow control for Console Redirection to prevent data loss caused by buffer overfl ow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty.
  • Page 110 SUPERSERVER 6018R-WTR(T) USER'S MANUAL High Precision Event Timer Select Enabled to activate the High Precision Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback, reducing the dependency on other timestamp calculation devices, such as an x86 RDTSC Instruction embedded in the CPU.

  • Page 111: Event Logs

    Chapter 7: BIOS  Intel TXT(LT-SX) Confi guration This feature indicates if the following hardware components support the Intel TXT (Trusted Execution Technology), which helps protect against software-based attacks and ensures protection, confi dentiality and integrity of data stored or created on the system.
  • Page 112 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Runtime Error Logging Support Change this item to enable or disable runtime error logging. The options are Enabled and Disabled. Memory Correction Error Threshold Change this item to defi ne the system's memory correction error threshold. Directly enter a numeric value.

  • Page 113: Ipmi

    Chapter 7: BIOS IPMI Use this menu to confi gure Intelligent Platform Management Interface (IPMI) settings. System Event Log Enabling/Disabling Options SEL Components Select Enabled for all system event logging at bootup. The options are Enabled and Disabled. Erasing Settings Erase SEL Select 'Yes, On next reset' to erase all system event logs upon next system reboot.
  • Page 114 SUPERSERVER 6018R-WTR(T) USER'S MANUAL When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.

  • Page 115: Boot

    Chapter 7: BIOS Boot This menu allows the user to confi gure the following boot settings for the system. Set Boot Priorities 1st Boot Device/2nd Boot Device/3rd Boot Device/4th Boot Device/5th Boot Device/6th Boot Device Use this feature to specify the sequence of boot priority for a device specifi ed by the user.

  • Page 116: Security

    SUPERSERVER 6018R-WTR(T) USER'S MANUAL  USB Hard Disk Drive BBS Priorities This submenu allows the user to specify the boot priority sequence of a USB hard drive. 1st Device  Network Device BBS Priorities This submenu allows the user to specify the boot priority sequence of a network device.

  • Page 117: Save & Exit

    Chapter 7: BIOS Password Check This item allows you to decide when the system should check for a password after it has been entered. Select Setup for the system to prompt for a password before the user enters the BIOS Setup utility. Select Always for the system to prompt for a password upon each system boot and before the user enters the Setup utility.
  • Page 118 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Save Changes and Reset When you have completed the system confi guration changes, select this option to save the changes and reboot the computer so that the new system confi guration settings can take effect. Select Save Changes and Exit, and press <Enter>. When...
  • Page 119 Chapter 7: BIOS Boot Override This feature allows the user to override the Boot Option Priorities setting in the Boot menu, and instead immediately boot the system with one of the listed devices. This is a one-time override. 7-31...
  • Page 120 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Notes 7-32...

  • Page 121: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 122 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Notes...

  • Page 123: Appendix B System Specifi Cations

    Appendix B: System Specifi cations Appendix B System Specifi cations Processors Single or dual Intel® Xeon E5-2600v3 Series processors Note: If using only a single processor then slots SXB1B and SXB2 (lower left) will NOT be functional for expansion cards. Note: Please refer to our web site for a complete listing of supported processors.
  • Page 124 SUPERSERVER 6018R-WTR(T) USER'S MANUAL Weight Gross (Bare Bone): 25 lbs (11.3 kg) System Cooling Contains up to fi ve (5) 4-cm heavy-duty counter-rotating easy swap fans Note: The system cooling fans are NOT redundant, hot-plug. Power Supply Input Requirements AC Input Voltage: 100V - 240V AC auto-range...
  • Page 125 Appendix B: System Specifi cations Notes...
  • Page 126 SUPERSERVER 6018R-WTR(T) USER'S MANUAL (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...
