User Manual

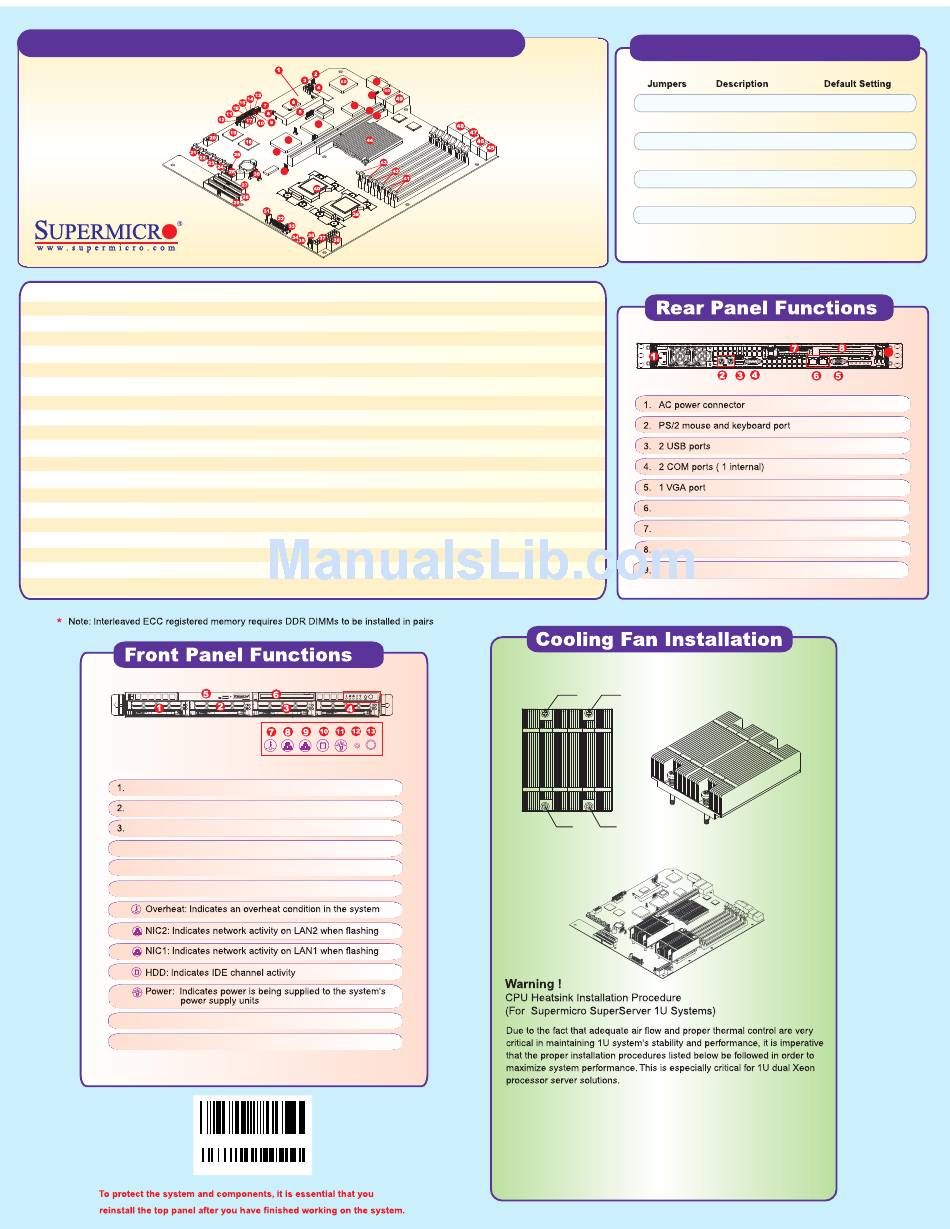

SuperServer 6013P-T Serverboard Components
1
X5DPR-TG2+ Serverboard
2
JD4: Gigabit LAN Enable/Disable
3
JP24: SMB header
4
JP35: Keylock header
5
IPMI 1.5 socket
6
Super I/0
7
WOL: Wake-on-LAN header
8
WOR: Wake-on-Ring header
9
USB2 port
10
JPS1: SATA 1 Enable/Disable
11
JPS2: SATA 2 Enable/Disable
12
JL1: Chassis intrusion
13
JP37: Watch dog En/Disable
14
PWR LED
15
Speaker
16
JD1: Speaker Enable (pins 6-7)
17
SATA LED
18
SATA 2 controller
19
SATA 1 controller
20
FPUSB0/1 ports
Hot-plug SATA hard drive, ID 0
Hot-plug SATA hard drive, ID 1
Hot-plug SATA hard drive, ID 2
4.
Hot-plug SATA hard drive, ID 3
5.
1 Slim CD-ROM drive
6.
1 Slim floppy drive
7.
8.
9.
10.
11.
12.
Reset button
13. Power SW button
59
58
57
52
51
56
55
54
53
21
SATA #0 port
22
SATA #1 port
23
SATA #2 port
24
SATA #3 port
25
Chassis Fan 3
26
COM2
27
Floppy conn.
28
IDE#2 port
29
IDE#1 port
30
Overheat LED
31
CPU2 chassis fan
32
JF2: Front control panel connector
33
CPU1 chassis fan
34
JP36: Alarm reset switch
35
JP9: Power fail alarm En/Disable
36
JP8: Third power supply fail header
37
ATX power conn.
38
J15: 12V power conn.
39
CPU1 socket
40
CPU2 socket
LBL-0099
REV 1.00
41
Bank 1
42
Bank 2
43
Bank 3
44
MCH chip
45
Keyboard
46
Mouse
47
USB 0/1
48
COM1
49
Gigabit LAN 1
50
Gigabit LAN 2
51
PCI#2
52
PCI-X #1
53
JP38: Front side bus speed
54
JBT1: CMOS clear
55
ICH3 chip
56
P64H2
57
Intel 82546EB chip
58
JP4: VGA Enable/Disable
59
VGA port
60
ATI Rage XL 8MB PCI controller
NO.1 SCREW
NO.4 SCREW
NO.3 SCREW
NO.2 SCREW
1) Only those CPU heatsinks that are provided by Supermicro should be used.
2) Do not apply any thermal grease to the heatsink - the required amount has
already been applied.
3) Place the heatsink on top of the CPU so that the four mounting holes are
aligned with those on the chassis.
4) Screw in two diagonal screws (ie. the #1 and #2 screws) until just snug (do
not fully tighten), then do the same with the remaining two diagonal screws.
5) Finish by fully tightening all four screws.
X5DPR-TG2+ Quick Reference
JBT1
CMOS Clear
JD1
Speaker Enable (Pins 6-7)
JD4
Gigabit LAN En/disable
JP4
VGA En/disable
JP9
Power fail alarm En/disable
JP37
Watch dog En/disable
JP38
Front side bus speed
JPS1, JPS2 SATA 1/2 En/Disable
2 Gigabit LAN ports
1 Low-profile PCI-X/PCI expansion slot
1 Standard PCI-X/PCI expansion slot
PCI-X/PCI card release latch
Do not reuse thermal grease!!
Pad
Closed (Enabled)
Pins 1-2 (Enabled)
Pins 1-2 (Enabled)
Open (Disabled)
Closed (Enabled)
Pins 1-2 (Auto)
Pins 1-2 (Enabled)
9
