Installing the device
2.5.3 Connecting main power
4.
5.
6.
7.
8.
2.5.3

Connecting main power

The device features slots (PS1 and PS2) for dual redundant AC and/or DC power
supply modules. Modules can be installed in any combination (e.g. AC and AC, DC
and DC, or AC and DC).
34

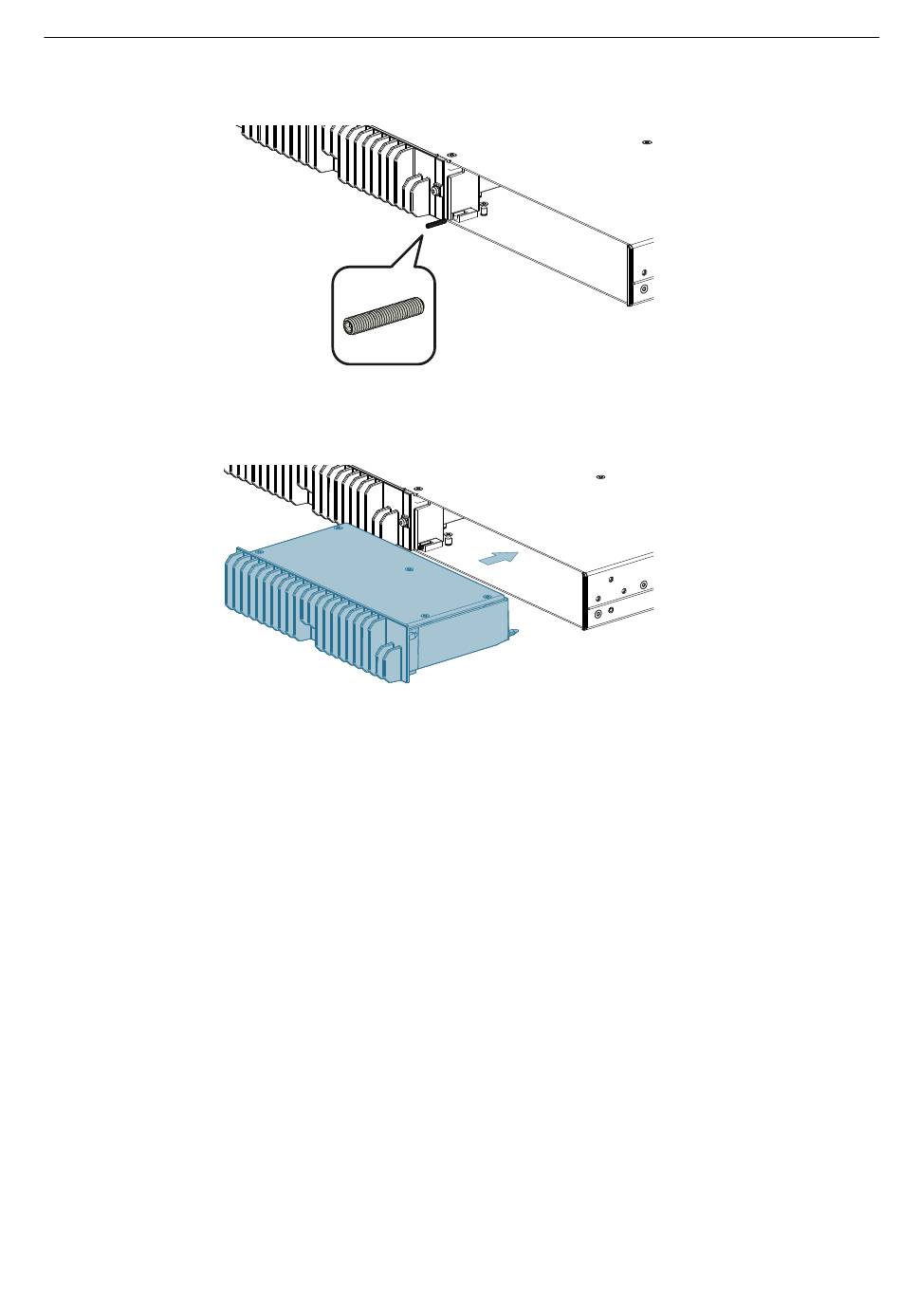

Figure 2.14 Set screw
Insert the new module into the empty slot.
Figure 2.15 Installing a power supply module
Using a Torx T10 screwdriver, hand-tighten the screw on the power supply
module to secure it to the chassis.
Connect an appropriate power source to the associated terminals on the main
power input terminal block.
For more information, refer to "Connecting main power" (Page 34).
Power on the device.
Check the power supply status LEDs on the status panel.
Depending on which module was installed, the PS1 or PS2 LED is illuminated.
This indicates the power supply module is receiving and distributing power.
