Mounting the device to a panel
To mount the device to a panel, do the following:
1.
RUGGEDCOM RST2428P
Equipment Manual, 10/2023, C79000-G8976-1528-01
Mounting bracket
1
Screw
2

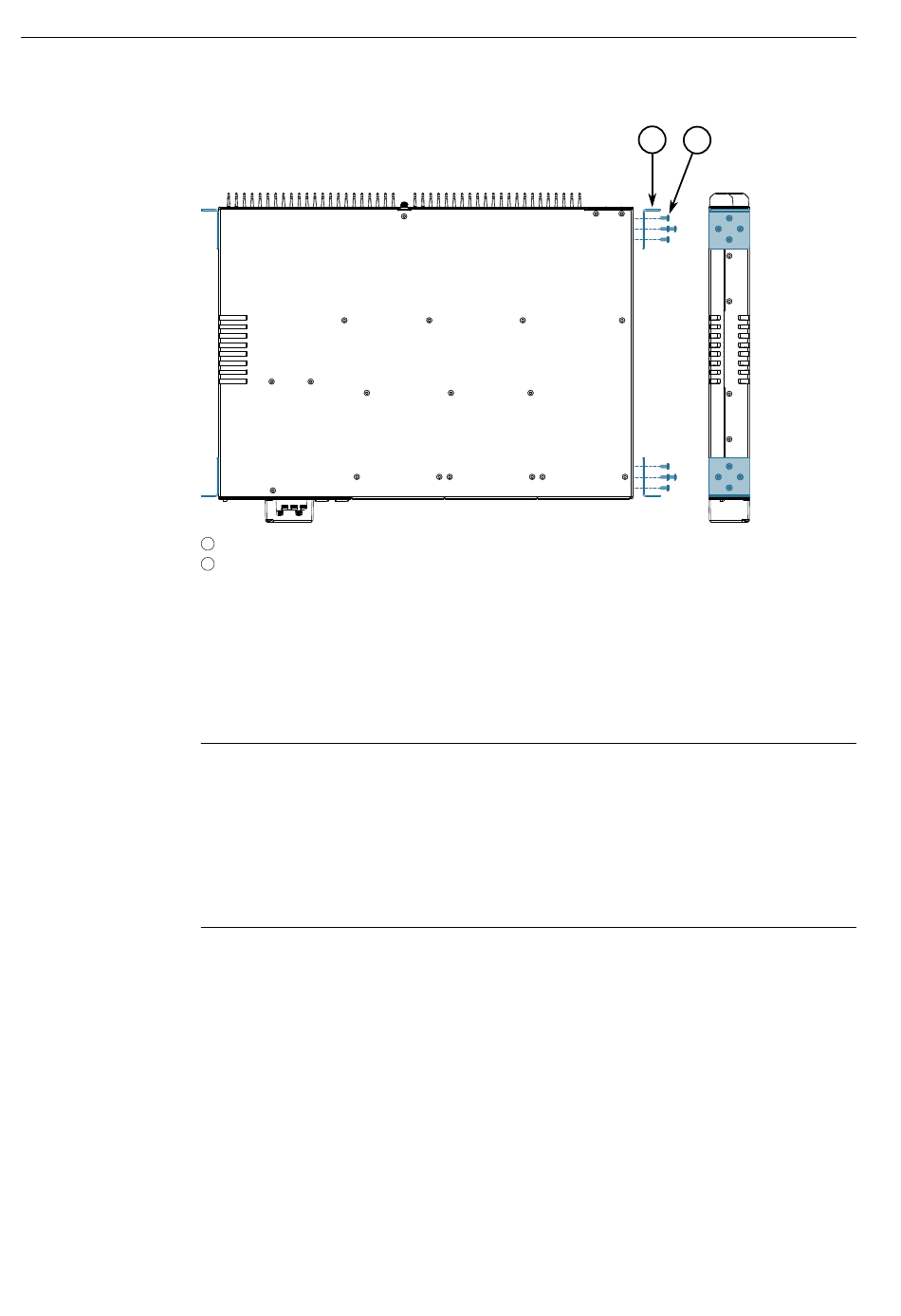

Figure 2.1
Rack mounting
Insert the device into the rack.
To make the modules and ports accessible from the front, insert the power
supply side of the device first. Reverse the orientation to have the power
supplies, management ports and LEDs accessible from the front.
Note
Since heat within the device is channeled to the enclosure, it is recommended
that 1 rack-unit of space, or 44 mm (1.75 in), be kept empty above and below
the device. This allows a small amount of convectional airflow.
Forced airflow is not required. However, any increase in airflow will result in a
reduction of ambient temperature and improve the long-term reliability of all
equipment mounted in the rack space.
Secure the brackets to the rack using two pan head mounting screws per
bracket.
Secure the mounting brackets to both sides of the chassis using four M3-0.5 x 5
mm flat head per bracket.
Installing the device
2.3 Mounting the device
1
2
23
