Installation Manual
SIMATIC NET
Rugged Ethernet Switches
RUGGEDCOM RST2228P
For RST2228
Edition
12/2019
https://www.siemens.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIMATIC NET RUGGEDCOM RST2228P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Siemens SIMATIC NET RUGGEDCOM RST2228P

Summary of Contents for Siemens SIMATIC NET RUGGEDCOM RST2228P

  • Page 1 Installation Manual SIMATIC NET Rugged Ethernet Switches RUGGEDCOM RST2228P For RST2228 Edition 12/2019 https://www.siemens.com...
  • Page 2 Preface Introduction Installing the Device SIMATIC NET Device Management Rugged Ethernet Switches RUGGEDCOM RST2228P Communication Ports Technical Specifications Installation Manual Certification For RST2228 12/2019 C79000-G8976-1403-05...
  • Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommend- ed or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 4: Table Of Contents

    Accessing Documentation ....................... v Disclaimer of Liability ......................v Registered Trademarks ......................v Training ..........................vi Customer Support ........................vi Contacting Siemens ....................... vii Introduction ........................... 1 Feature Highlights ....................1 Description ......................2 Required Tools and Materials ................. 6 Decommissioning and Disposal ................
  • Page 5 Table of Contents Available Modules ....................31 Installing/Removing Modules ................33 Technical Specifications ...................... 35 Power Supply Specifications ................35 PoE Power Supply Specifications ................35 Failsafe Alarm Relay Specifications ..............36 Supported Networking Standards ................ 36 Operating Environment ..................36 Mechanical Specifications ..................

  • Page 6: Preface

    However, deviations between the product and the documentation may exist. Siemens shall not be liable for any errors or omissions contained herein or for conse- quential damages in connection with the furnishing, performance, or use of this ma- terial.

  • Page 7: Training

    Siemens Sales representative. Customer Support Customer support is available 24 hours, 7 days a week for all Siemens customers. For technical support or general information, contact Siemens Customer Support through any of the following methods: Online Visit http://www.siemens.com/automation/support-request...

  • Page 8: Contacting Siemens

    Preface Contacting Siemens Contacting Siemens Address Siemens AG Industry Sector 300 Applewood Crescent Concord, Ontario Canada, L4K 5C7 Telephone Toll-free: 1 888 264 0006 Tel: +1 905 856 5288 Fax: +1 905 856 1995 E-Mail ruggedcom.info.i-ia@siemens.com https://www.siemens.com RUGGEDCOM RST2228P Installation Manual, 12/2019, C79000-G8976-1403-05...
  • Page 9 Preface Contacting Siemens viii RUGGEDCOM RST2228P Installation Manual, 12/2019, C79000-G8976-1403-05...

  • Page 10: Introduction

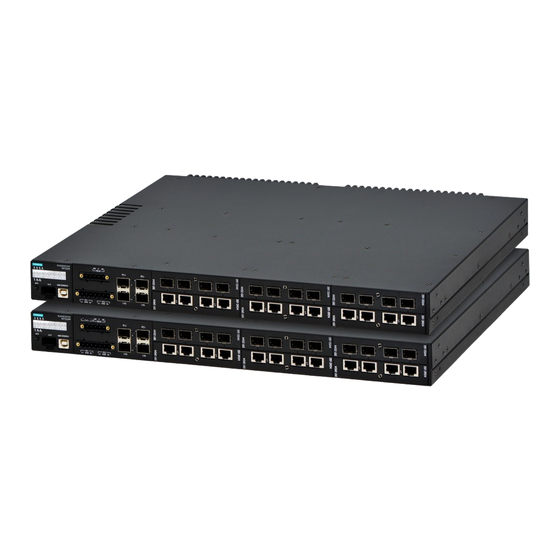

    Introduction The RUGGEDCOM RST2228P is a utility grade, fully managed, industrial Ethernet switch designed to operate reliably in harsh environments. With a rugged metal en- closure and an optional conformal coating, the RUGGEDCOM RST2228P provides a high level of immunity to electromagnetic interference and heavy electrical surges, and can withstand temperatures between -40 and 85 °C (-40 and 185 °F).

  • Page 11: Description

    Reliability in Harsh Environments • Immunity to EMI and heavy electrical surges • Zero-Packet-Loss Technology • Supports Siemens FastConnect RJ45 Cabling System • -40 to 85 °C (-40 to 185 °F) operating temperature (fan-less) • Conformal coated printed circuit boards (optional) Description The RUGGEDCOM RST2228P features various ports, controls and indicator LEDs for connecting, configuring and troubleshooting the device.
  • Page 12 Introduction 1.2 Description Orientation Options The RUGGEDCOM RST2228P is available in one of two options: • Option 1 Status panel, alarm LED, ACO Button, CLP port and USB console port are located on the front panel. Status Panel ACO Button CLP Port USB Console Port PoE Power and Failsafe Alarm Relay Terminal Block Power Terminal Block...
  • Page 13 Introduction 1.2 Description • Option 2 Status panel, alarm LED, ACO Button, CLP port and USB console port are located on the rear panel. Status Panel ACO Button CLP Port USB Console Port PoE Power and Failsafe Alarm Relay Terminal Block Power Terminal Block SFP/SFP+ Transceiver Sockets Media Modules...

  • Page 14: C79000-G8976

    Introduction 1.2 Description LEDs for 10GBase SFP+ Transceivers (Slot 0) Module Slot Locators LEDs for Module Ports Alarm Status LED Power Supply Status LEDs PoE Status LED ACO Button Figure 1.3 Status Panel State Description P{num- Solid Link detected ber} (Green) Solid Link detected and PoE established (Yellow) Blinking...

  • Page 15: Required Tools And Materials

    Introduction 1.3 Required Tools and Materials PoE Power and Failsafe Alarm Latches to default state when a power disruption or other alarm Relay condition occurs. For more information, refer to: • "Connecting the Failsafe Alarm Relay (Page 13)" • "Failsafe Alarm Relay Specifications (Page 36)" •...

  • Page 16: Cabling Recommendations

    Siemens also does not recommend using copper Ethernet ports to interface with de- vices in the field across distances that could produce high levels of ground potential rise (i.e.

  • Page 17: Supported Fiber Optic Cables

    Introduction 1.5.3 Supported Fiber Optic Cables Follow these recommendations for copper data cabling in high electrical noise envi- ronments: • Data cable lengths should be as short as possible, preferably 3 m (10 ft) in length. Copper data cables should not be used for inter-building communica- tions.

  • Page 18: Installing The Device

    This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by Siemens AG could invalidate specifications, test results, and agency approvals, and void the user's authority to operate the equipment.

  • Page 19: Unpacking The Device

    Visually inspect each item in the package for any physical damage. Verify all items are included. NOTICE If any item is missing or damaged, contact Siemens for assistance. Mounting the Device The RUGGEDCOM RST2228P is designed for maximum mounting and display flexibili- ty.

  • Page 20: Mounting The Device To A Rack

    Installing the Device 2.3.1 Mounting the Device to a Rack NOTICE Heat generated by the device is channeled outwards from the enclosure. As such, it is recommended that 2.5 cm (1 in) of space be maintained on all open sides of the device to allow for some convectional airflow.

  • Page 21: Mounting The Device To A Panel

    Installing the Device 2.3.2 Mounting the Device to a Panel Insert the device into the rack. To make the modules and ports accessible from the front, insert the power supply side of the device first. Reverse the orienta- tion to have the power supplies, management ports and LEDs accessible from the front.

  • Page 22: Connecting The Failsafe Alarm Relay

    Installing the Device 2.4 Connecting the Failsafe Alarm Relay Place the device against the panel and align the adapters with the mounting holes. Screw Panel Adapter Figure 2.3 Panel Mounting Secure the adapters to the panel with M6 or #10-32 screws. Connecting the Failsafe Alarm Relay The failsafe relay can be configured to latch based on alarm conditions.
  • Page 23 Installing the Device 2.4 Connecting the Failsafe Alarm Relay To connect the failsafe alarm relay, do the following: Connect the failsafe alarm relay terminal block to the device. The terminal block is available as either a screw-type terminal block or a pluggable terminal block. •...

  • Page 24: Connecting Power

    Installing the Device 2.5 Connecting Power Connecting Power The RUGGEDCOM RST2228P supports dual redundant AC and/or DC power supplies that can be installed in any combination. The RUGGEDCOM RST2228P can be equipped with either a screw-type or pluggable terminal block, which provides power to both power supplies. The screw-type ter- minal block is installed using Phillips screws and compression plates, allowing either bare wire connections or crimped terminal lugs.
  • Page 25 Installing the Device 2.5.1 Connecting High AC/DC Power CAUTION Electrical hazard – risk of damage to equipment. Do not connect AC power cables to a DC power supply terminal block. Damage to the power supply may occur. Note The screw-type terminal block is installed using Phillips screws and compression plates, allowing either bare wire connections or crimped terminal lugs.
  • Page 26 Installing the Device 2.5.1 Connecting High AC/DC Power Connect the Line wire from the power source to the positive/live (+/L) terminal on the terminal block. Pluggable Terminal Block Screw-Type Terminal Block Positive/Line (+/L) Terminal for PS1 Chassis/Ground Terminal for PS1 Negative/Neutral (-/N) Terminal for PS1 Positive/Line (+/L) Terminal for PS2 Chassis/Ground Terminal for PS2 Negative/Neutral (-/N) Terminal for PS2...

  • Page 27: Connecting Low Dc Power

    Installing the Device 2.5.2 Connecting Low DC Power Connect the chassis ground screw to ground (Potential Earth). It is recommend- ed to terminate the ground connection with an M3 ring or spade lug, and then torque to 1.7 N·m (15 lbf-in). M3 Screw M3 Ring Lug Figure 2.9...
  • Page 28 Installing the Device 2.5.2 Connecting Low DC Power Connect the power supply terminal block to the device. Pluggable Terminal Block Screw-Type Terminal Block Figure 2.10 Assembling the Power Supply Terminal Block Connect the positive wire from the power source to the positive terminal on the terminal block.

  • Page 29: Connecting External Poe Power

    Installing the Device 2.5.3 Connecting External PoE Power For pluggable terminal blocks, install the safety cover. Figure 2.12 Assembling the Safety Cover Connect the ground terminal on the power source to the ground terminal on the device. M3 Screw M3 Ring Lug Figure 2.13 Chassis Ground Connection 2.5.3...
  • Page 30 For IEC 61850 compliance, use an IEC 61850 compliant PoE power supply with pow- er cabling no longer than 3 m (118 in). Otherwise, Siemens recommends using the RUGGEDCOM RPS1300 switch-mode AC power supply. For more information about this power supply, refer to https://sup- port.industry.siemens.com/cs/ww/en/view/109478699.

  • Page 31: Wiring Examples

    Installing the Device 2.5.4 Wiring Examples 2.5.4 Wiring Examples The following illustrate how to connect single and dual power supplies to the device. Figure 2.15 Single High AC/DC Power Supply Figure 2.16 Single Low DC Power Supply RUGGEDCOM RST2228P Installation Manual, 12/2019, C79000-G8976-1403-05...
  • Page 32 Installing the Device 2.5.4 Wiring Examples Figure 2.17 Dual High AC/DC Power Supply Figure 2.18 Dual Low DC Power Supply RUGGEDCOM RST2228P Installation Manual, 12/2019, C79000-G8976-1403-05...
  • Page 33 Installing the Device 2.5.4 Wiring Examples Figure 2.19 High AC/DC Power Supply and Low DC Power Supply Figure 2.20 PoE Power Supply RUGGEDCOM RST2228P Installation Manual, 12/2019, C79000-G8976-1403-05...

  • Page 34: Device Management

    Device Management This section describes how to connect to and manage the device. Connecting to the Device The following describes the various methods for accessing the RUGGEDCOM RST2228P console and Web interfaces on the device. For more detailed instruc- tions, refer to the RUGGEDCOM ROS Configuration Manual for the RUGGEDCOM RST2228P.

  • Page 35: Configuring The Device

    Device Management 3.2 Configuring the Device For more information about available ports, refer to "Communication Ports (Page 29)". Configuring the Device Once the device is installed and connected to the network, it must be configured. All configuration management is done via the RUGGEDCOM RST2228P interface. For more information about configuring the device, refer to the RUGGEDCOM ROS Con- figuration Manual associated with the installed software release.
  • Page 36 Device Management 3.3 Inserting/Removing the CLP To remove the CLP, do the following: Insert a flat head screwdriver into the bottom portion of the CLP port, and gently pry the CLP out. Protective cover Figure 3.1 Removing the CLP Insert the protective cover or a new CLP to prevent the ingress of dust and dirt. RUGGEDCOM RST2228P Installation Manual, 12/2019, C79000-G8976-1403-05...
  • Page 37 Device Management 3.3 Inserting/Removing the CLP Installing the CLP To install the CLP, do the following: Remove the protective cover from the CLP port. Protective cover Figure 3.2 Installing the CLP Insert the CLP into the CLP port. RUGGEDCOM RST2228P Installation Manual, 12/2019, C79000-G8976-1403-05...

  • Page 38: Communication Ports

    1 to 6 Field-replaceable modules SFP Transceivers The RUGGEDCOM RST2228P supports up to four Small Form-factor Pluggable (SFP) transceiver sockets, which are compatible with the wide array of SFP/SFP+ trans- ceivers available from Siemens. RUGGEDCOM RST2228P Installation Manual, 12/2019, C79000-G8976-1403-05...
  • Page 39 RUGGEDCOM SFP Transceiver Catalog [https://support.indus- try.siemens.com/cs/ca/en/view/109482309] NOTICE Only use SFP transceivers approved by Siemens for RUGGEDCOM products. Siemens accepts no liability as a result of performance issues related in whole or in part to third-party components. SFP Transceiver...

  • Page 40: Poe Ports

    Communication Ports 4.2 PoE Ports Only compatible with SFP/SFP+ Transceiver Sockets. Not compatible with SFP/SFP+ Transceiver Sockets. PoE Ports The RUGGEDCOM RST2228P supports up to twenty-four 10/100/1000 Mbps Power over Ethernet (PoE) ports powered by an external power supply. Each port complies with the IEEE 802.3af and IEEE 802.3at standards and features auto-sensing and au- tomatic power off when cables are removed.
  • Page 41 Communication Ports 4.3 Available Modules Speed: 10/100/1000 6GK6297-3RD00-4AB1 Mbps (Conformal Coated) Interface: TX Distance: 100 m (328 ft) RUGGEDCOM RMM2973-4FC Specifications Article Numbers Ports: 4 6GK6297-3FD00-4AB0 (Standard) Port Type: FastConnect RJ45 6GK6297-3FD00-4AB1 (Conformal Coated) Speed: 10/100/1000 Mbps Interface: TX Distance: 100 m (328 ft) Fiber Optic Ethernet Modules RUGGEDCOM RMM2972-4SFP Specifications...

  • Page 42: Installing/Removing Modules

    Communication Ports 4.4 Installing/Removing Modules Power per Port: 60 W 6GK6297-3WD00-4AB1 (Conformal Coated) Power per Module: 120 Speed: 10/100/1000 Mbps Interface: TX Distance: 100 m (328 ft) Network Redundancy Modules RUGGEDCOM RMM2972-2RNA Specifications Article Numbers SFP Sockets: 2 6GK6297-8SB00-2AAO (Standard) Speed: 100/1000 Mbps 6GK6297-8SB00-2AA1 (Conformal Coated) Blank Modules...
  • Page 43 Communication Ports 4.4 Installing/Removing Modules [Optional] If the device is installed in a rack, remove it from the rack. Loosen the screw(s) that secure the module. Pull the module from the chassis to disconnect it. Figure 4.2 Removing a Module Install a new module or a blank module (to prevent the ingress of dust and dirt). [Optional] If necessary, install the device in the rack.

  • Page 44: Technical Specifications

    Technical Specifications This section provides important technical specifications related to the device. Power Supply Specifications Note When determining cable lengths, make sure the minimum input voltage for the pow- er supply is provided at the power source. Note Use the internal fuse rating to determine the size of the external circuit breaker/fuse. Power Sup- Input Range Internal...

  • Page 45: Failsafe Alarm Relay Specifications

    Technical Specifications 5.3 Failsafe Alarm Relay Specifications Power In Power Out Wire Gage Voltage Range Internal Fuse Rating 45-57 VDC 44-57 VDC, 15 W per Port Maximum (IEEE 302.af) The required wire size depends on the number of POE modules installed in the system and the maximum current capability of the POE power source.

  • Page 46: Mechanical Specifications

    Technical Specifications 5.6 Mechanical Specifications Ambient Operating Tempera- -40 to 85 °C (-40 to 185 °F) ture Ambient Storage Temperature -40 to 85 °C (-40 to 185 °F) Ambient Relative Humidity 5% to 95% Maximum Altitude 3000 m (9842 ft) Measured from a 30 cm (11.8 in) radius surrounding the center of the enclosure. Operating temperature may vary based on the limitations of installed SFPs.
  • Page 47 Technical Specifications 5.7 Dimension Drawings 446.0 Figure 5.1 Overall Dimensions RUGGEDCOM RST2228P Installation Manual, 12/2019, C79000-G8976-1403-05...
  • Page 48 Technical Specifications 5.7 Dimension Drawings 462.2 43.6 23.5 Figure 5.2 Rack Mount Dimensions 43.6 462.2 23.5 Figure 5.3 Panel Mount Dimensions RUGGEDCOM RST2228P Installation Manual, 12/2019, C79000-G8976-1403-05...
  • Page 49 Technical Specifications 5.7 Dimension Drawings RUGGEDCOM RST2228P Installation Manual, 12/2019, C79000-G8976-1403-05...

  • Page 50: Certification

    The device is marked with a CSA symbol that indicates compliance with both Canadi- an and U.S. requirements. 6.1.2 European Union (EU) This device is declared by Siemens AG to comply with essential requirements and other relevant provisions of the following EU directives: EN 60950-1 •...

  • Page 51: Fcc

    Respect to the Restriction of Hazardous Substances The device is marked with a CE marking and can be used throughout the European community. A copy of the CE Declaration of Conformity is available from Siemens AG. For contact information, refer to "Contacting Siemens (Page vii)".

  • Page 52: Fda/Cdrh

    Information Technology Equipment – Safety – Part 1: General Requirements 6.1.7 RoHS This device is declared by Siemens AG to meet the requirements of the following Ro- HS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...

  • Page 53: Other Approvals

    Certification 6.1.8 Other Approvals 6.1.8 Other Approvals This device meets the requirements of the following additional standards: • IEC 61850-3 General Requirements • EN 50121-4 Railway Applications – Electromagnetic Compatibility – Emission and Immunity of the Signaling and Telecommunications Apparatus • EN 50121-3-2 Railway applications –...
  • Page 54 Certification 6.2 EMC and Environmental Type Tests Test Description Test Levels Severity Levels IEC 61000-4-5 Surge Signal Ports ± 4 kV Line- to-Earth ± 2 kV Line-to-Line DC Power Ports ± 2 kV Line- to-Earth, ± 1 kV Line-to-Line AC Power Ports ±...
  • Page 55 DC Power Ports 5 kV   AC Power Ports 5 kV   POE Power Ports 1 kV   Siemens-specified severity levels EMC Immunity Type Tests per IEEE 1613 Description Test Levels Severi- ty Levels Enclosure Contact ± 8 kV  ...
  • Page 56 Certification 6.2 EMC and Environmental Type Tests Test Description Test Levels Severity Levels IEC 60068-2-2 Dry Heat Test Bd 85 °C (185   °F), 16 Hours IEC 60068-2-14 Change of Test Nb 5 Cycles, -40 to 85°   Temperature C (40 to 185° F) IEC 60068-2-30 Humidity (Damp Test Db...
  • Page 57 Certification 6.2 EMC and Environmental Type Tests RUGGEDCOM RST2228P Installation Manual, 12/2019, C79000-G8976-1403-05...
  • Page 58 Further Information Siemens https://www.siemens.com Industry Online Support (service and support) https://support.industry.siemens.com Industry Mall https://mall.industry.siemens.com Siemens AG Digital Industry Process Automation Postfach 48 48 90026 NÜRNBERG GERMANY...
