2.5.3 Installation of Filters into Filter Holders

Installation of filters into the filter holders requires care and patience to avoid damaging the
threads as well as the filters. The following procedures describe this process and should be
practiced with a drop-in (or slide-in) filter holder before attempting to load filters into the
filter cups.

Table 2-1. Maximum allowable filter thickness.

With Spacer
(Millimeters) (Inches)
1.38 0.054
2.2 0.086
5.89 0.2315

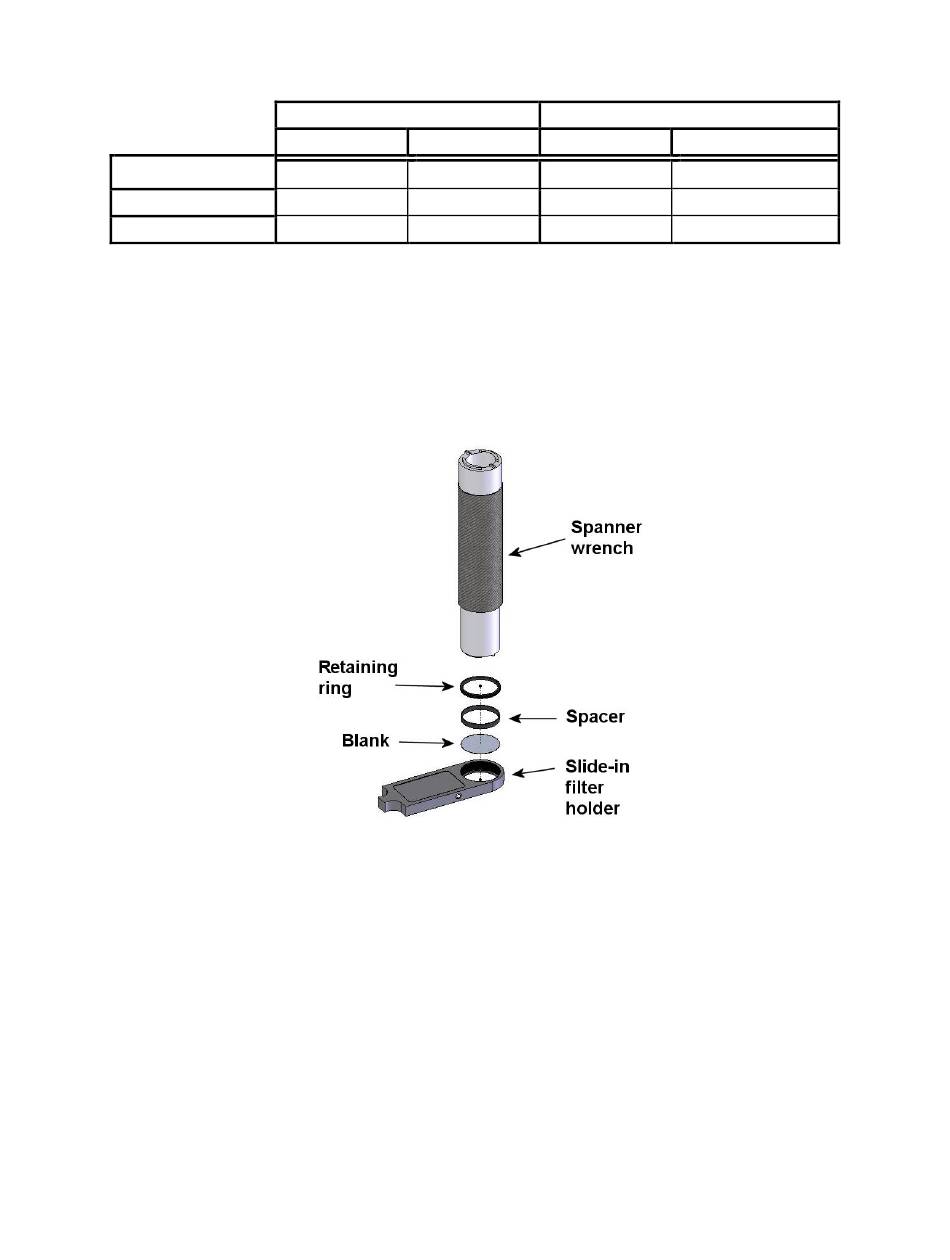

Figure 2-5. Changing filters in the Slide-In Filter Holder.

LAMBDA 10-B OPERATION MANUAL – REV. 1.20Q (20230227)
Without Spacer
(Millimeters) (Inches)
4.56 0.18
5.38 0.212
9.07 0.3575
