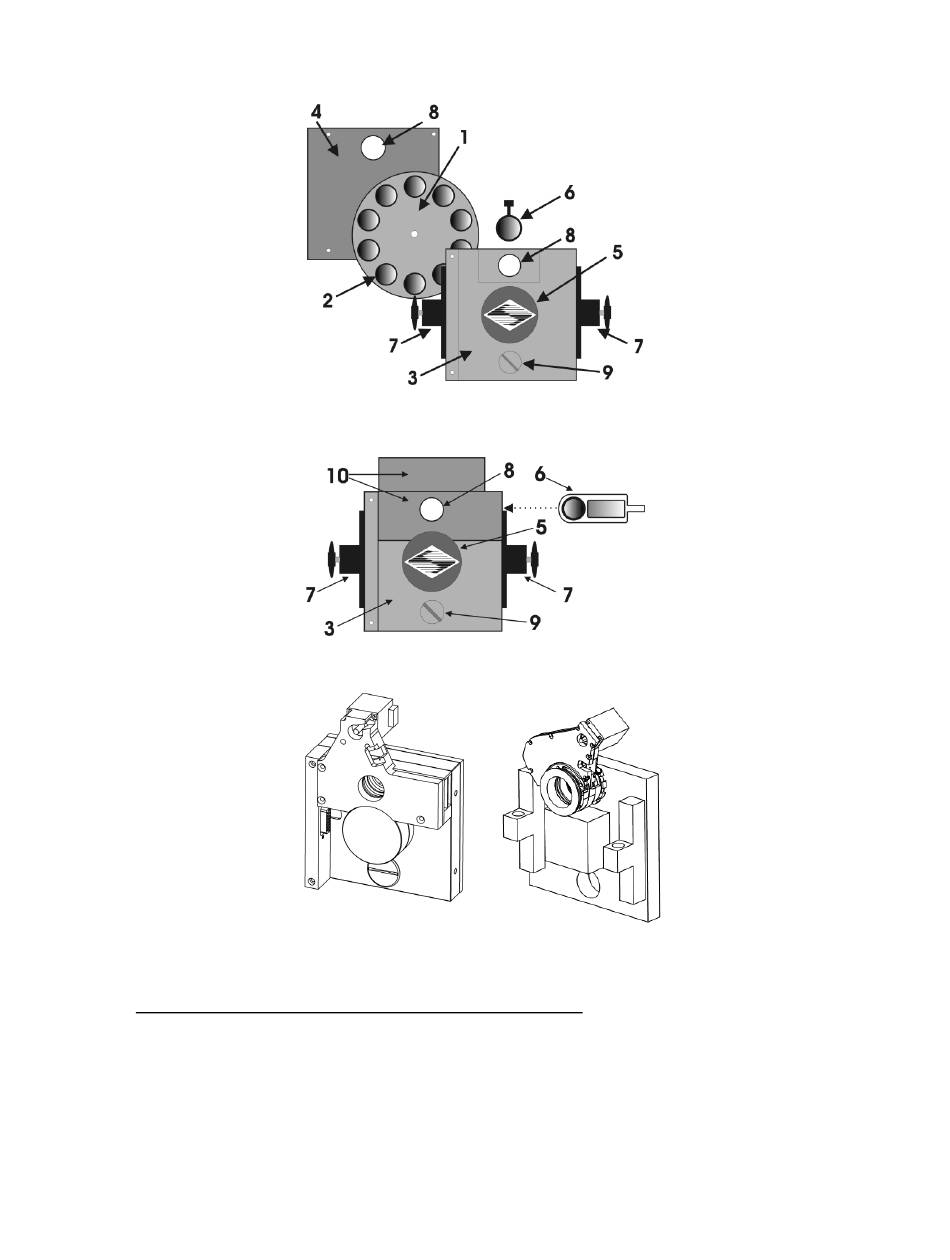

Figure 1-1. Lambda series 25mm filter wheel (without shutter).
Figure 1-2. Lambda series 25mm filter wheel housing (with 25mm shutter).
Figure 1-3. Lambda-series 25mm filter wheel housing with 25mm SmartShutter and 32mm filter wheel housing
1.3.1.1 Supported Filter Wheel and Shutter Configurations
The LAMBDA 10-B controller supports two basic filter wheel and/or shutter configurations:
1. Any combination of one filter wheel and one shutter:
One standalone filter wheel only (no shutter)
One standalone filter wheel and one standalone SmartShutter
with 35mm SmartShutter.
LAMBDA 10-B OPERATION MANUAL – REV. 1.20Q (20230227)
3
