APPENDIX F. EXTERNAL CONTROL COMMAND REFERENCE

Manual Operation

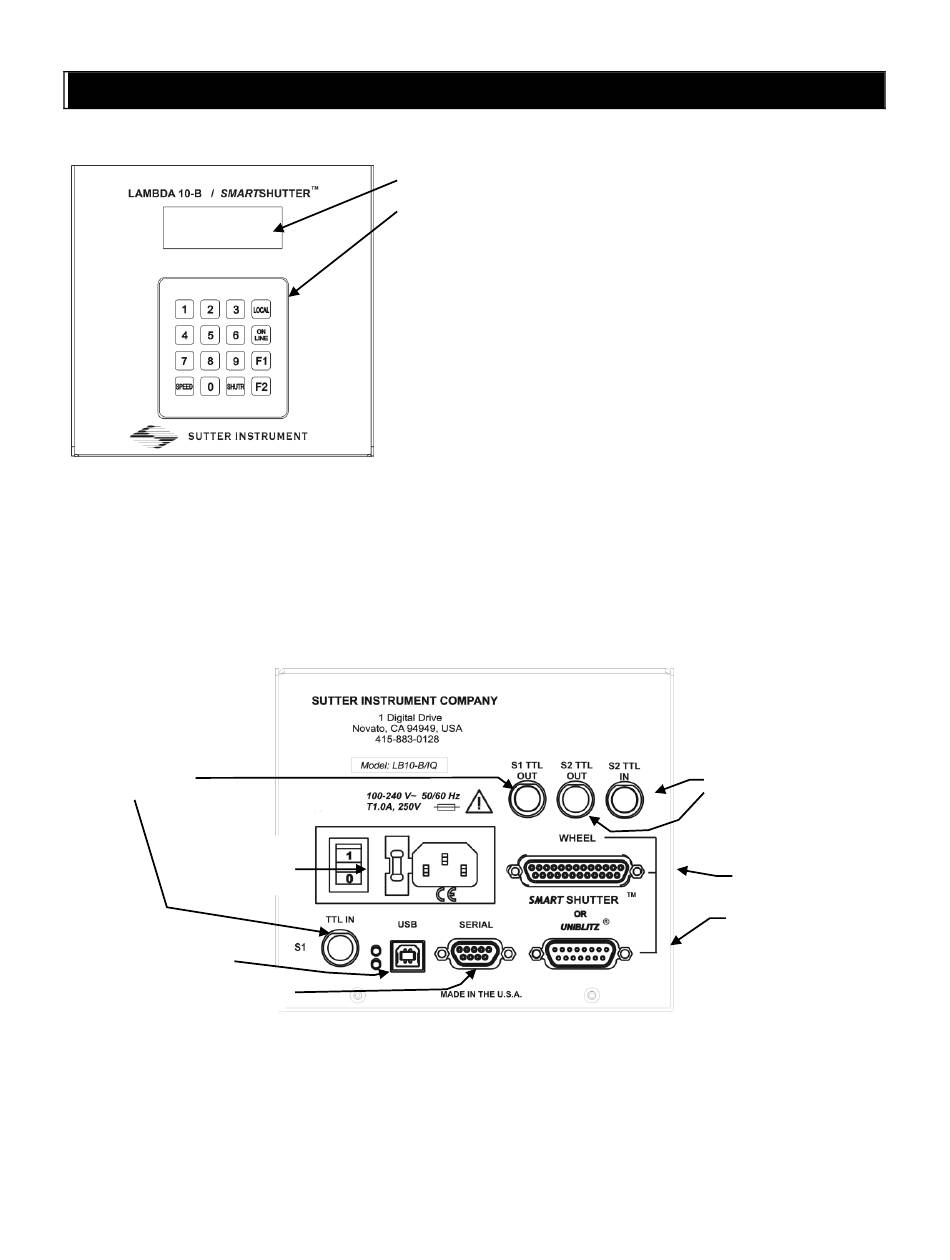

Configuration

S1 TTL
IN/AOUT
Power switch,
fuse, and
receptacle
USB
Serial
RS-232
Display
Keypad
Filter Wheel and Shutter configuration
1 - 9 and 0: Filter Wheel Position 0 – 9 commands
SPEED: 0 - 7
F1:
1. TTL: Enable/Disable
2. TEST: Loop, speed, shutter, demo
3. MODE: Fast, Soft, Neutral Density: 1-144 steps (F2
4. CONFIG: Default; Shutter Mode: Save/Restore Mode
F1 (2
F2: Data Rate: 9600, 19200, 115.2K, 128K*
Dual SmartShutter configuration
1 - 9 and SPEED nonfunctional; all other commands are
functional
LOCAL: Manual operation
ON LINE: External operation (USB/Serial)
