Installation

Installation of this product does not require the use of
special tools.
For more information on other devices comprising the
overall system, refer to their respective installation
manuals.
Product color and design may vary depending on the
model.
Installation
Shield case is included with
Check the wall or ceiling to see if it needs to be
reinforced. The camera may fall off if the wall or ceiling
is not strong enough to support its weight.

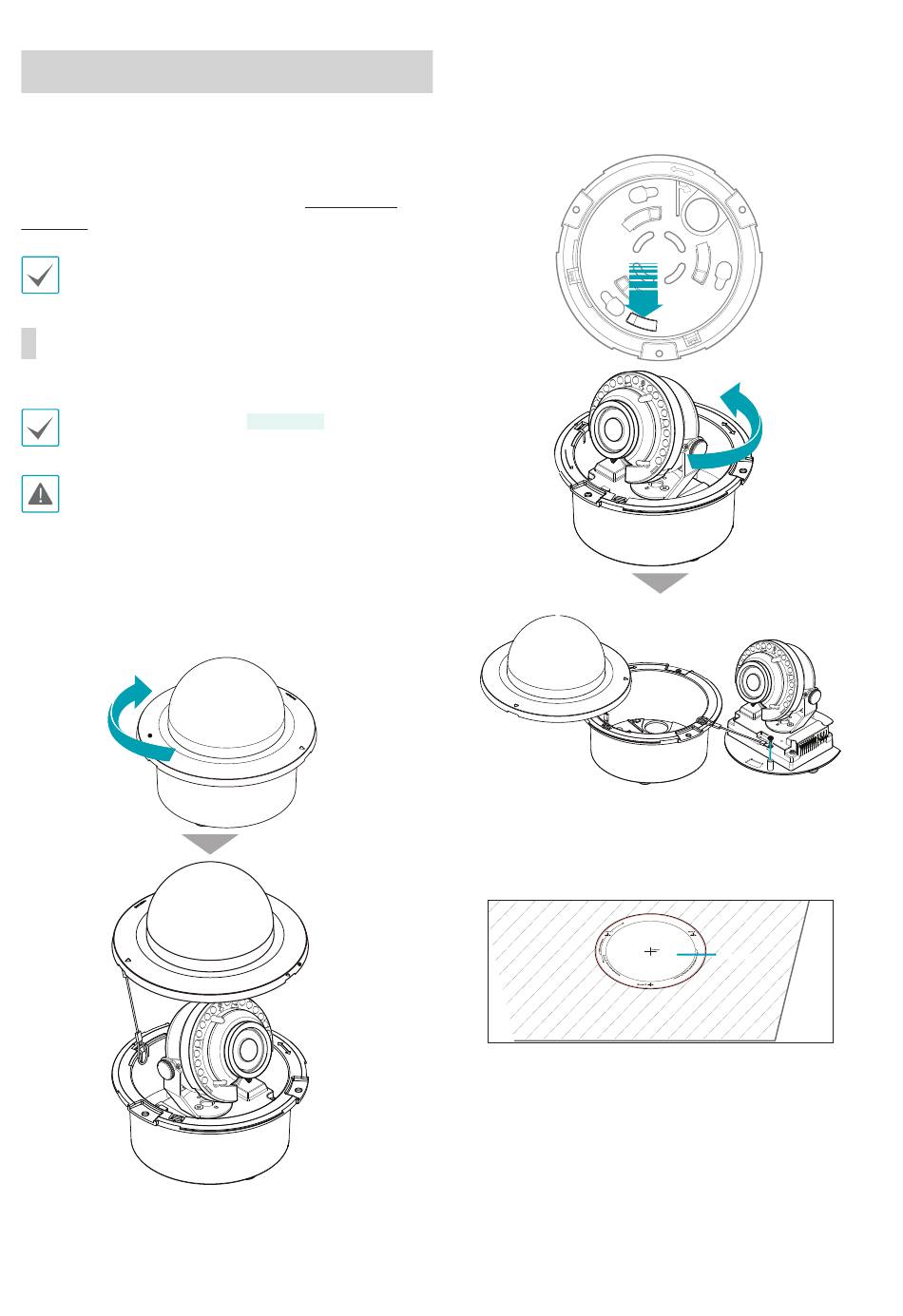

1
Hold the camera body and dome cover and turn the
dome cover clockwise to remove the dome cover
from the camera body as follows:
DC-D1223F
only.
2
Turn the camera body counterclockwise while
pressing the body hook of the bottom cover to
remove the camera body from the bottom cover.
3
Remove the ceiling tile from the ceiling. Draw circle
on the tile by using the mounting template provided
with the camera. Cut the circle out of the ceiling tile.
Ceiling
Part 1 – Introduction
Guide Pattern
13
