Body - Direct IP Idis DC-D1223F Installation Manual

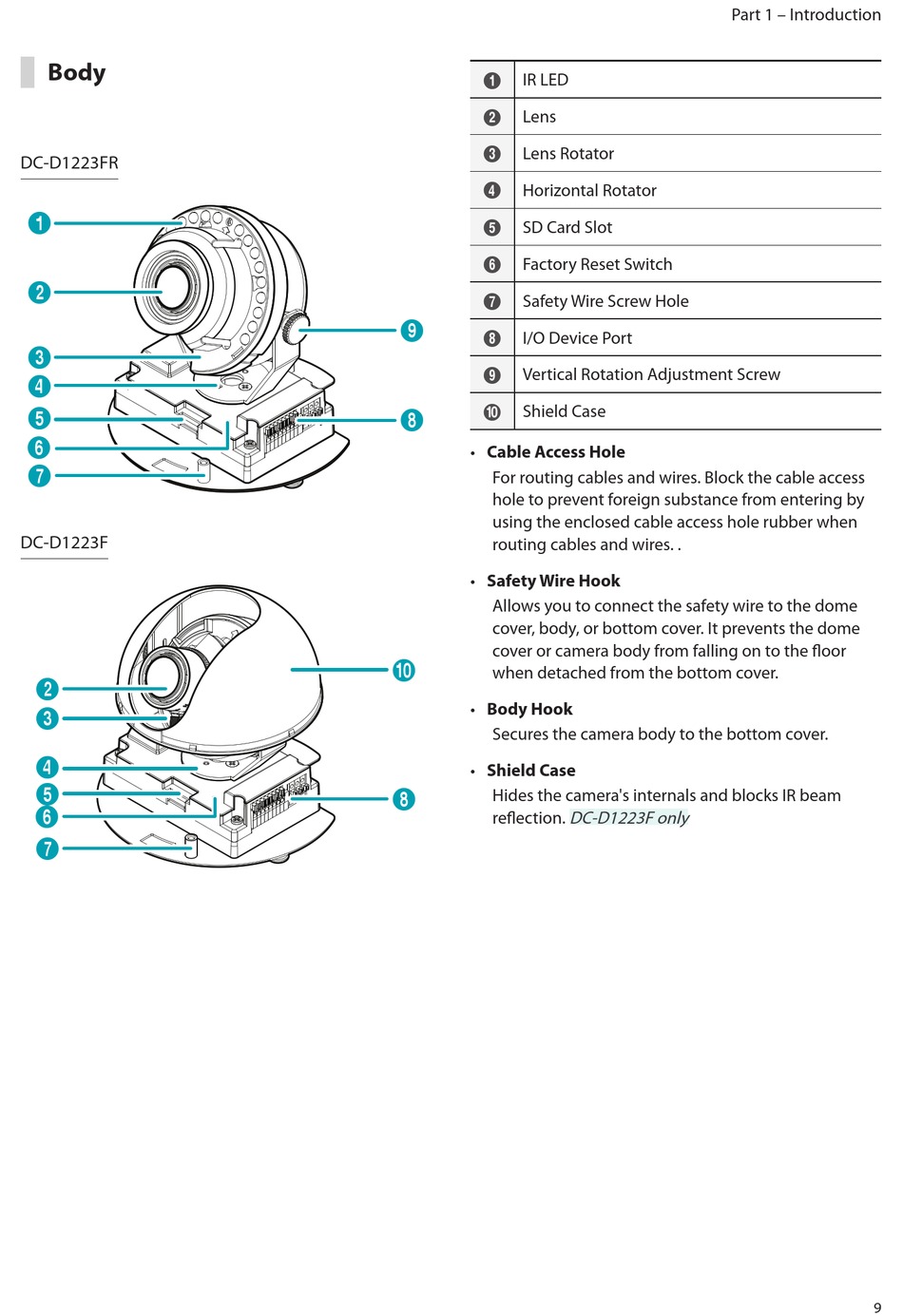

Body

DC-D1223FR
1
2
3
4
5
6
7
DC-D1223F
2
3
4
5
6
7
IR LED
1
Lens
2
Lens Rotator
3
Horizontal Rotator
4
SD Card Slot
5
Factory Reset Switch
6
Safety Wire Screw Hole
7
9
I/O Device Port
8
Vertical Rotation Adjustment Screw
9
Shield Case
0
8
• Cable Access Hole
For routing cables and wires. Block the cable access
hole to prevent foreign substance from entering by
using the enclosed cable access hole rubber when
routing cables and wires. .
• Safety Wire Hook
Allows you to connect the safety wire to the dome
cover, body, or bottom cover. It prevents the dome
cover or camera body from falling on to the floor
0
when detached from the bottom cover.
• Body Hook
Secures the camera body to the bottom cover.
• Shield Case
Hides the camera's internals and blocks IR beam
8
reflection.
Part 1 – Introduction
DC-D1223F only
9
