Part 1 – Introduction

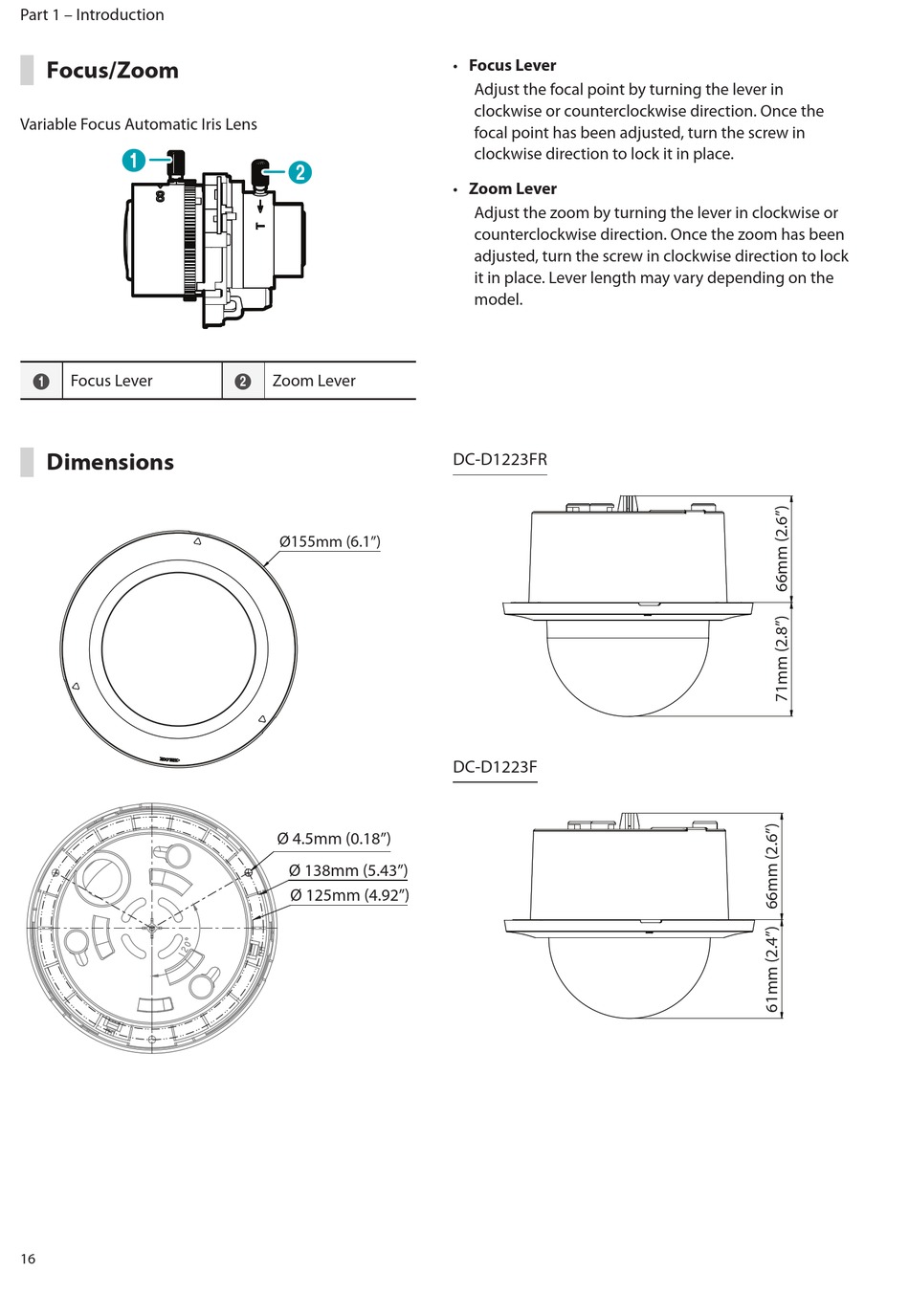

Focus/Zoom

Variable Focus Automatic Iris Lens
1
Focus Lever
1

Dimensions

16
2
Zoom Lever
2
Ø155mm (6.1")
Ø 4.5mm (0.18")
Ø 138mm (5.43")
Ø 125mm (4.92")
• Focus Lever
Adjust the focal point by turning the lever in
clockwise or counterclockwise direction. Once the
focal point has been adjusted, turn the screw in
clockwise direction to lock it in place.
• Zoom Lever
Adjust the zoom by turning the lever in clockwise or
counterclockwise direction. Once the zoom has been
adjusted, turn the screw in clockwise direction to lock
it in place. Lever length may vary depending on the
model.
DC-D1223FR
DC-D1223F
Ø 4.5mm (0.18")
Ø 138mm (5.43")
Ø 125mm (4.92")
