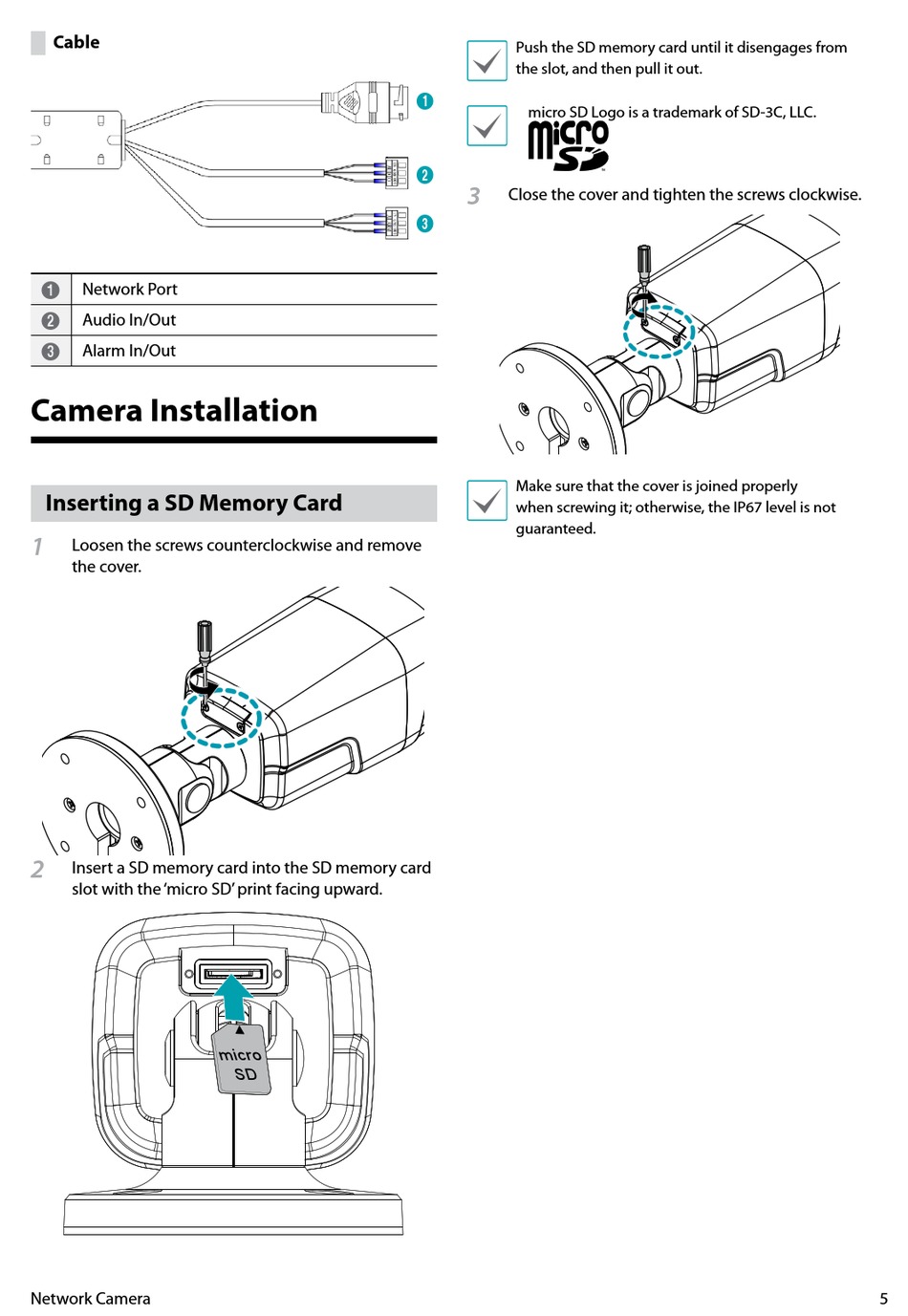

Camera Installation - Direct IP DC-E4213WRX Quick Manual

Cable
Network Port
1
Audio In/Out
2
Alarm In/Out
3

Camera Installation

Inserting a SD Memory Card
1
Loosen the screws counterclockwise and remove
the cover.
2
Insert a SD memory card into the SD memory card
slot with the 'micro SD' print facing upward.
Network Camera
Push the SD memory card until it disengages from
the slot, and then pull it out.
1
micro SD Logo is a trademark of SD-3C, LLC.
2
3
Close the cover and tighten the screws clockwise.
3
Make sure that the cover is joined properly
when screwing it; otherwise, the IP67 level is not
guaranteed.
5
