Part 1 – Introduction
• Power LED
Indicates the system's operating status. For more
information, refer to the LED Status Indications. If
the Status LED option under System > General has
not been enabled, this LED will remain turned off
regardless of the system's operating status.
When inserting an alarm in/out, audio in/out, video
out, or power connector, hold down the button and
push the connector in through the exposed hole.
Release the button and then gently pull on the wire to
ensure a secure connection. To disconnect, press down
on the button again and pull the wire out.
• Check your local laws and regulations on making
video or audio recordings. The user will be held
liable for any violation of the law. (Article 25-5 of
the Personal Information Protection Act: Operators
of image data processing devices may not operate
such devices for purposes other than as originally
intended during device installation, place such
devices at locations other than as originally
intended, or use such devices to record audio.)
• When switching over from 12 VDC to PoE as the
power source, the system will be rebooted once the
power adapter is disconnected.
• Ground the power port's frame ground terminal
before use.
• Organize the power cable so that it will not cause
people to trip over or become damaged from chairs,
cabinets, desks, and other objects in the vicinity. Do
not run the power cable underneath carpet or a rug
or plug the cable into a power outlet shared by a
number of other devices.
• The network connector is not designed to be
connected directly with cable or wire intended for
outdoor use.
12
LED Status Indications
LED Status
Off
Power LED
Flashing
On
Network LED On
Power LED/ Flashing
Network LED (sequentially)

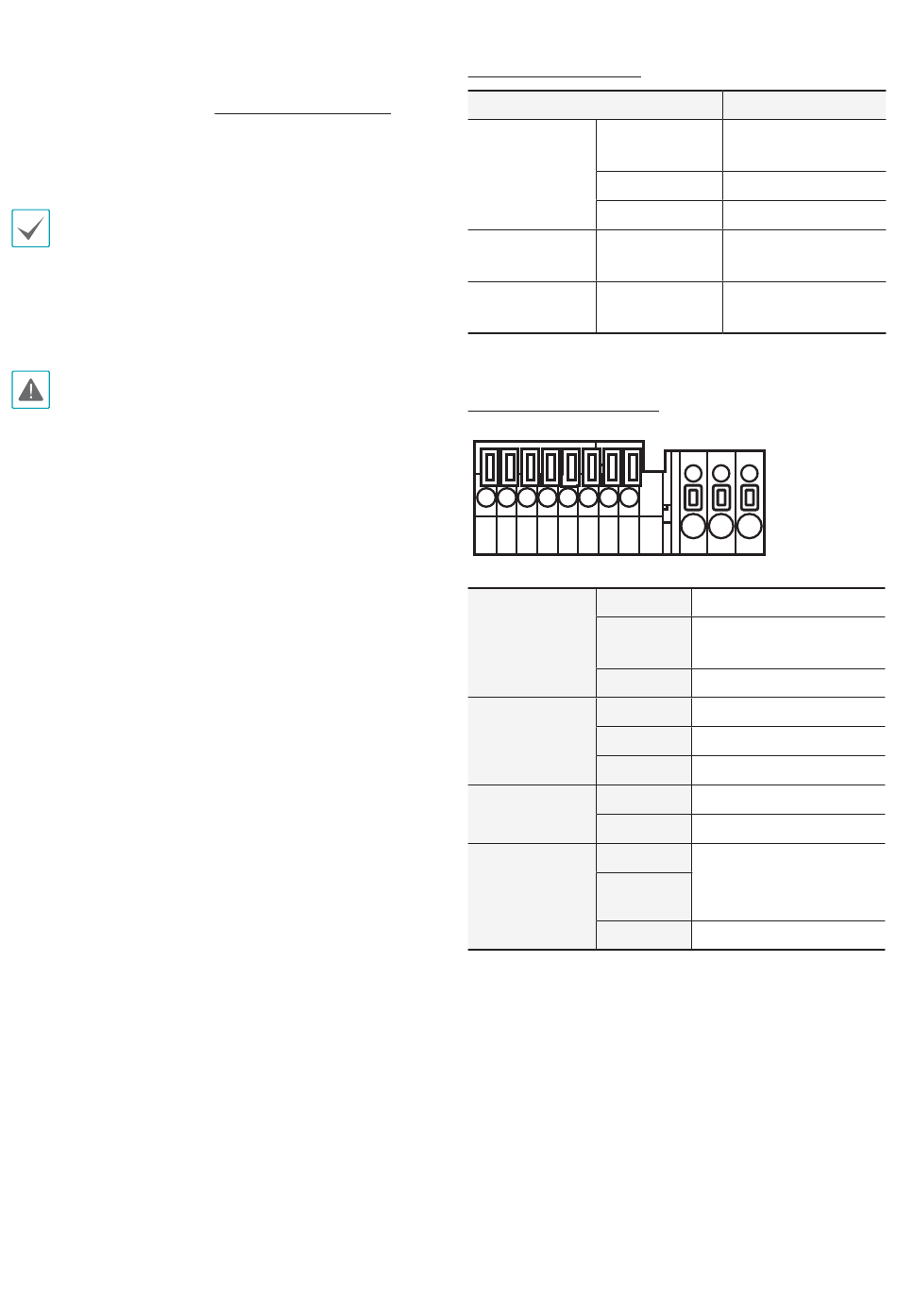

Connector Arrangement
GND
Alarm Out
In
GND
Audio Out
In
GND
Video
CVBS
DC12V +
Power DC12V -
FGND
Description
Power not
connected
Booting
Powered on
Not connected to
network
Software upgrade
in progress
Grounding
Alarm Out (Active Low -
Open Collector Output)
Alarm In
Grounding
Audio Out
Audio In
Grounding
Video Out
Power connection
(Check + and -
markings)
Frame grounding
