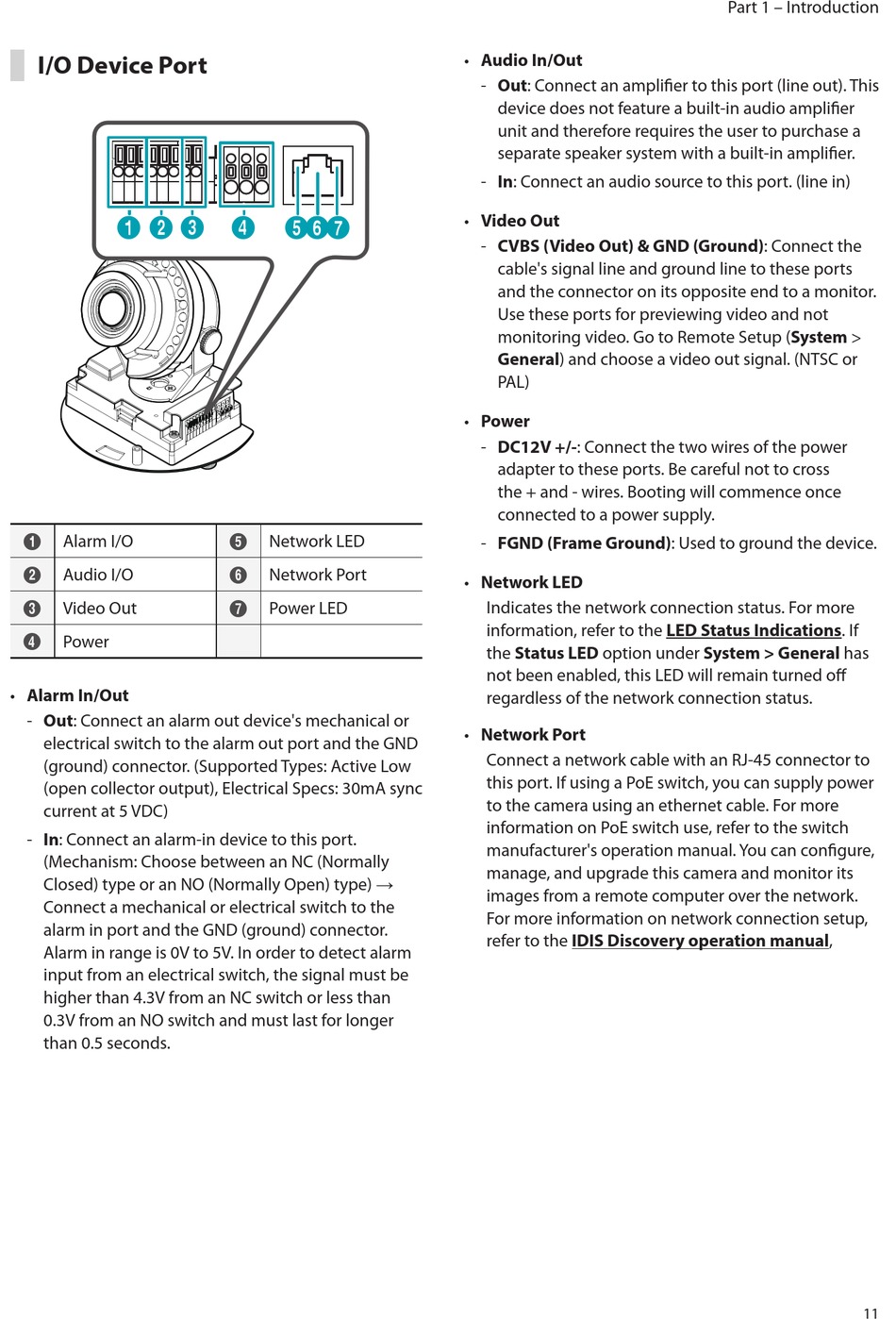

I/O Device Port

1 2 3
Alarm I/O
1
Audio I/O
2
Video Out
3
Power
4
• Alarm In/Out
- Out: Connect an alarm out device's mechanical or
electrical switch to the alarm out port and the GND
(ground) connector. (Supported Types: Active Low
(open collector output), Electrical Specs: 30mA sync
current at 5 VDC)
- In: Connect an alarm-in device to this port.
(Mechanism: Choose between an NC (Normally
Closed) type or an NO (Normally Open) type) →
Connect a mechanical or electrical switch to the
alarm in port and the GND (ground) connector.
Alarm in range is 0V to 5V. In order to detect alarm
input from an electrical switch, the signal must be
higher than 4.3V from an NC switch or less than
0.3V from an NO switch and must last for longer
than 0.5 seconds.
4 5 67
Network LED
5
Network Port
6
Power LED
7
• Audio In/Out
- Out: Connect an amplifier to this port (line out). This
device does not feature a built-in audio amplifier
unit and therefore requires the user to purchase a
separate speaker system with a built-in amplifier.
- In: Connect an audio source to this port. (line in)
• Video Out
- CVBS (Video Out) & GND (Ground): Connect the
cable's signal line and ground line to these ports
and the connector on its opposite end to a monitor.
Use these ports for previewing video and not
monitoring video. Go to Remote Setup (System >
General) and choose a video out signal. (NTSC or
PAL)
• Power
- DC12V +/-: Connect the two wires of the power
adapter to these ports. Be careful not to cross
the + and - wires. Booting will commence once
connected to a power supply.
- FGND (Frame Ground): Used to ground the device.
• Network LED
Indicates the network connection status. For more
information, refer to the LED Status Indications. If
the Status LED option under System > General has
not been enabled, this LED will remain turned off
regardless of the network connection status.
• Network Port
Connect a network cable with an RJ-45 connector to
this port. If using a PoE switch, you can supply power
to the camera using an ethernet cable. For more
information on PoE switch use, refer to the switch
manufacturer's operation manual. You can configure,
manage, and upgrade this camera and monitor its
images from a remote computer over the network.
For more information on network connection setup,
refer to the IDIS Discovery operation manual,
