Camera Installation

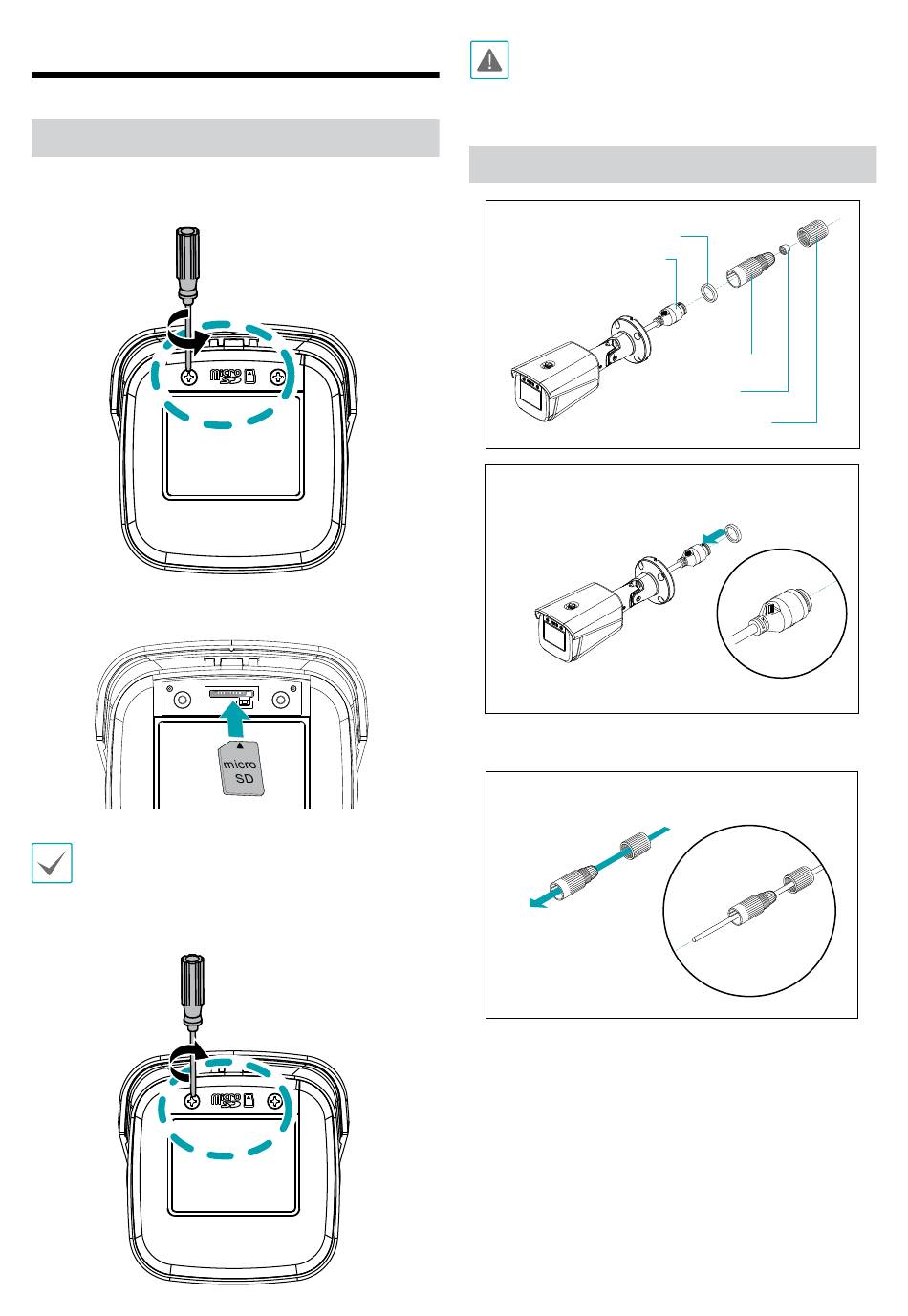

Inserting a SD Memory Card
1
Loosen the screws counterclockwise and remove
the cover.
2
Insert a SD memory card into the SD memory card
slot with the 'micro SD' print facing upward.
Push the SD memory card until it disengages from
the slot, and then pull it out.
3
Close the cover and tighten the screws clockwise.
Network Camera
Make sure that the cover is joined properly
when screwing it; otherwise, the IP67 level is not
guaranteed.
Waterproof Cable Installation
RJ45 waterproof rubber ring
RJ45 modular jack
RJ45 waterproof rubber ring
RJ45 modular jack
1
1
1
Insert a round rubber ring (silicone rubber) into
2
the RJ45 jack.
2
3
2
Insert the network cable into the waterproof cap,
rubber bushing, and waterproof cap body in order.
3
4
RJ45 connector protect cover
cable waterproof rubber ring
(The waterproof rubber ring is fastened to the connector protect cover.)
RJ45 connector protect cover
RJ45 connector back cover
cable waterproof rubber ring
(The waterproof rubber ring is fastened to the connector protect cover.)
RJ45 connector back cover
5
