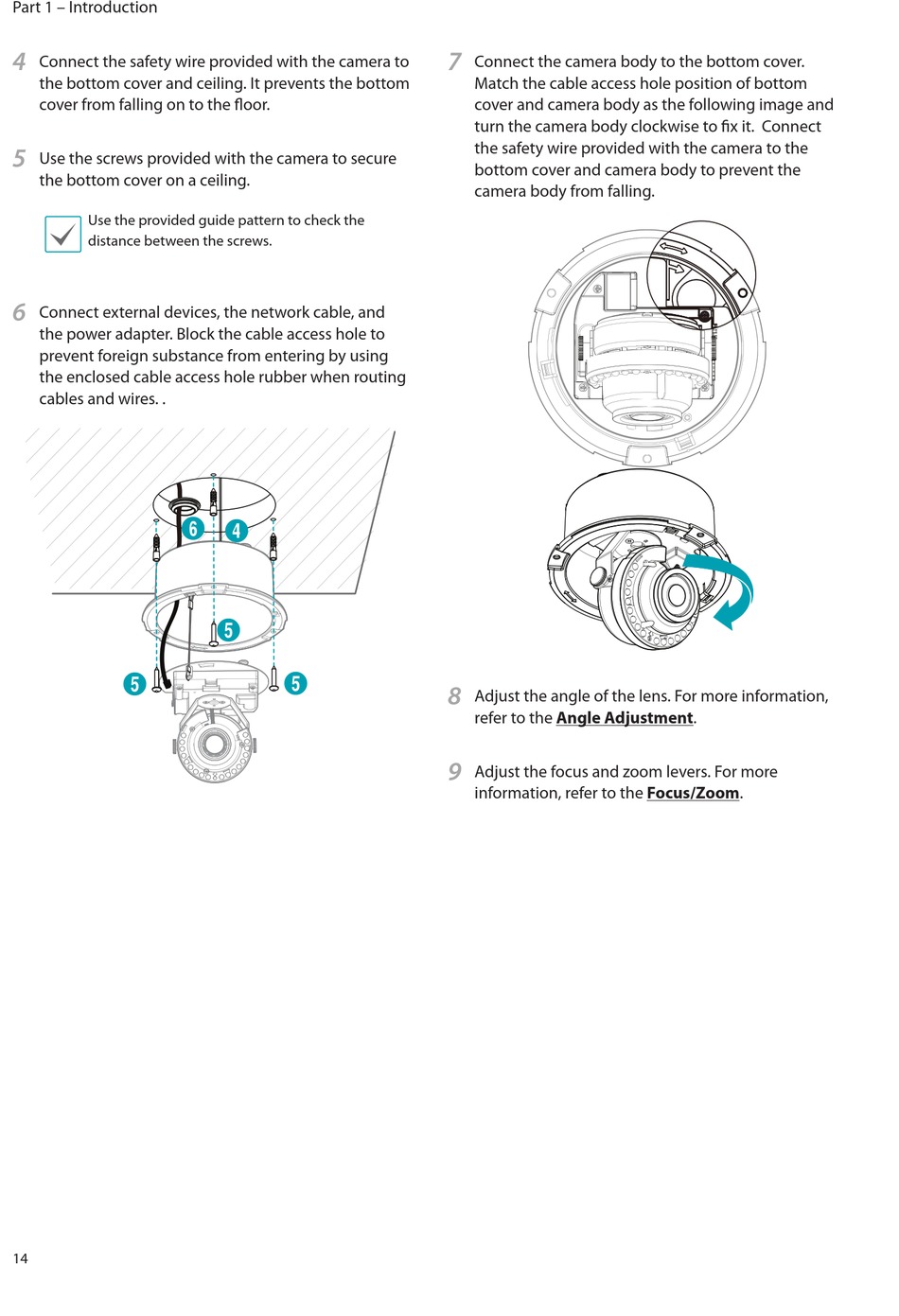

Direct IP Idis DC-D1223F Installation Manual page 14

Part 1 – Introduction
4
Connect the safety wire provided with the camera to
the bottom cover and ceiling. It prevents the bottom
cover from falling on to the floor.
5
Use the screws provided with the camera to secure
the bottom cover on a ceiling.
Use the provided guide pattern to check the
distance between the screws.
6
Connect external devices, the network cable, and
the power adapter. Block the cable access hole to
prevent foreign substance from entering by using
the enclosed cable access hole rubber when routing
cables and wires. .
5
14
6
4
5
5
7
Connect the camera body to the bottom cover.
Match the cable access hole position of bottom
cover and camera body as the following image and
turn the camera body clockwise to fix it. Connect
the safety wire provided with the camera to the
bottom cover and camera body to prevent the
camera body from falling.
8
Adjust the angle of the lens. For more information,
refer to the Angle Adjustment.
9
Adjust the focus and zoom levers. For more
information, refer to the Focus/Zoom.
