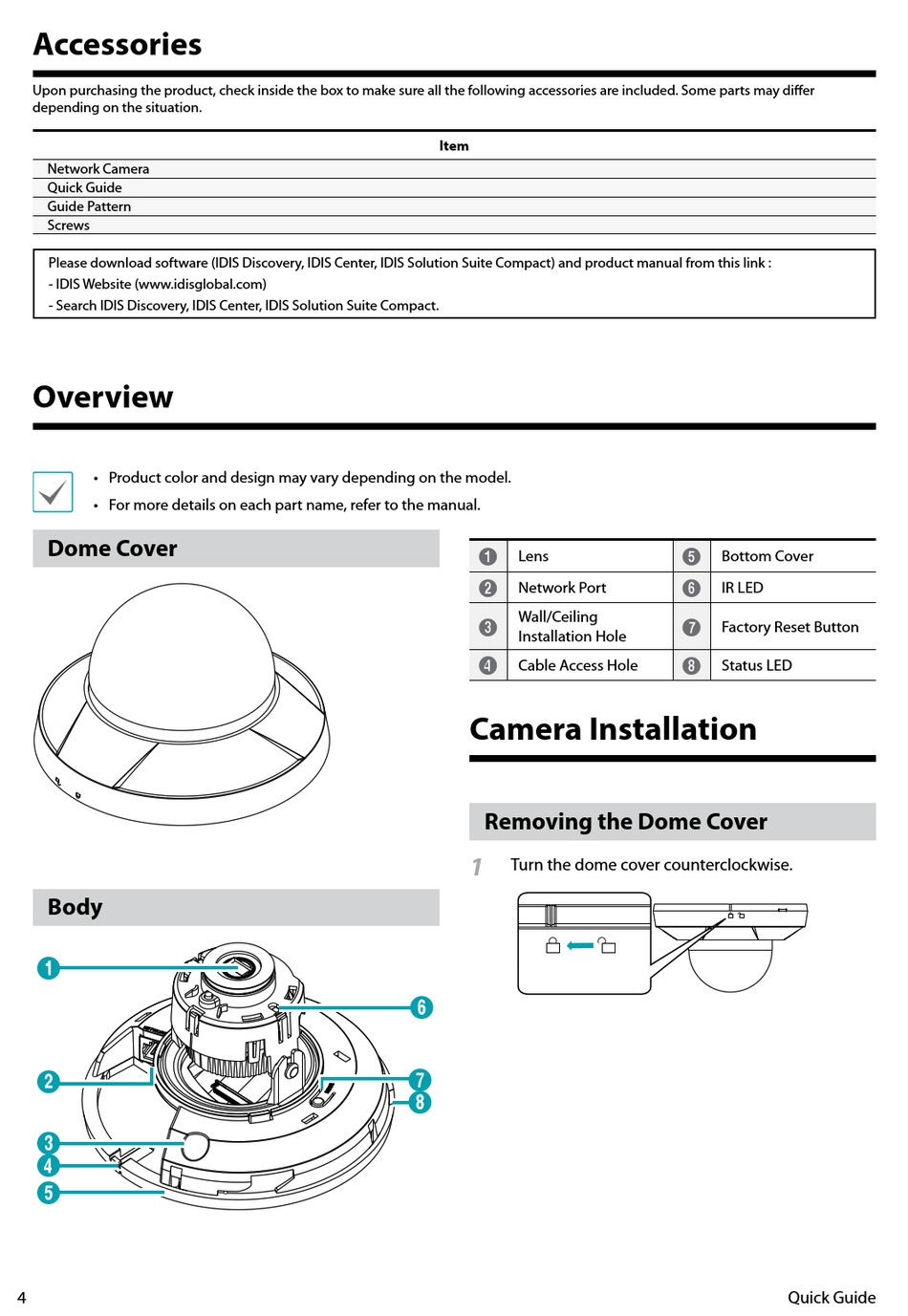

Accessories
Upon purchasing the product, check inside the box to make sure all the following accessories are included. Some parts may differ
depending on the situation.
Network Camera
Quick Guide
Guide Pattern
Screws
Please download software (IDIS Discovery, IDIS Center, IDIS Solution Suite Compact) and product manual from this link :
- IDIS Website (www.idisglobal.com)
- Search IDIS Discovery, IDIS Center, IDIS Solution Suite Compact.
Overview
• Product color and design may vary depending on the model.
• For more details on each part name, refer to the manual.
Dome Cover
Body
1
2
3
4
5
4
Item
Lens
1
Network Port
2
Wall/Ceiling
3
Installation Hole
Cable Access Hole
4

Camera Installation

Removing the Dome Cover

1
Turn the dome cover counterclockwise.
6
7
8
Bottom Cover
5
IR LED
6
Factory Reset Button
7
Status LED
8
