Camera Installation

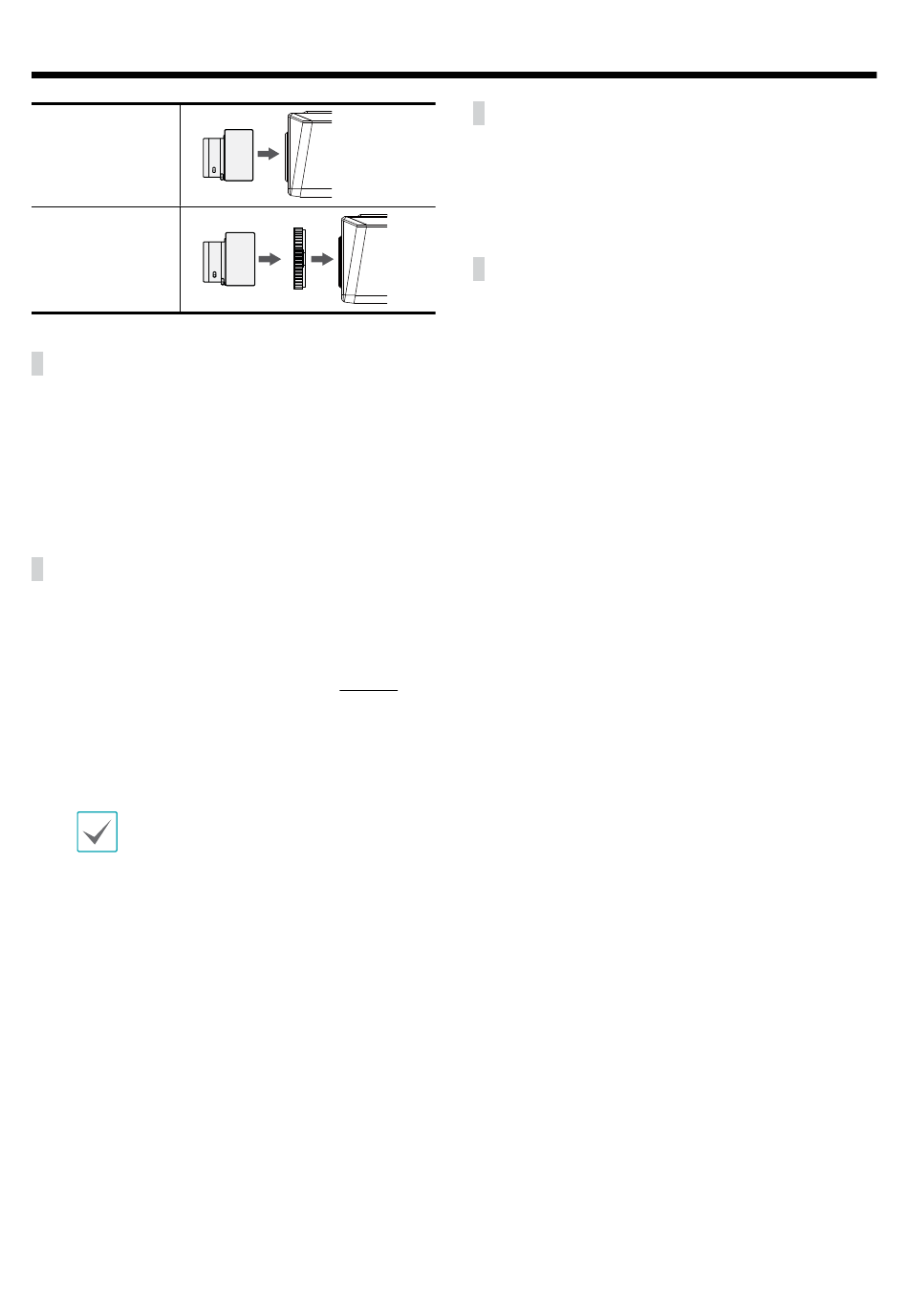

CS-Mount Lens
C-Mount Lens
Manual Iris Lens
1
Remove the protective cover from the camera.
2
Turn the lens in clockwise direction and mount it
on the camera.
3
Rotate the lens' iris ring to open up the iris and
then adjust accordingly.
DC Type/P Type Auto Iris Lens
1
Solder on the lens connection line to the
connector socket, if necessary. For more
information about soldering on the lens control
wire, refer to the lens manufacturer's manual.
2
Remove the protective cover from the camera.
3
Turn the lens in clockwise direction, mount it on
to the camera, and connect the auto iris jack to
the auto iris lens connector.
If the length of the auto iris jack is long,
wind it around the lens properly.
CS-Mount Lens
1
Remove the protective cover from the camera.
2
Turn the lens in clockwise direction and mount it
on the camera.
C-Mount Lens
1
Remove the protective cover from the camera.
2
Turn the mount ring in clockwise direction and
mount the ring on to the camera.
3
Turn the C-mount lens in clockwise direction and
mount it on to the C-mount ring.
