Robot workspace

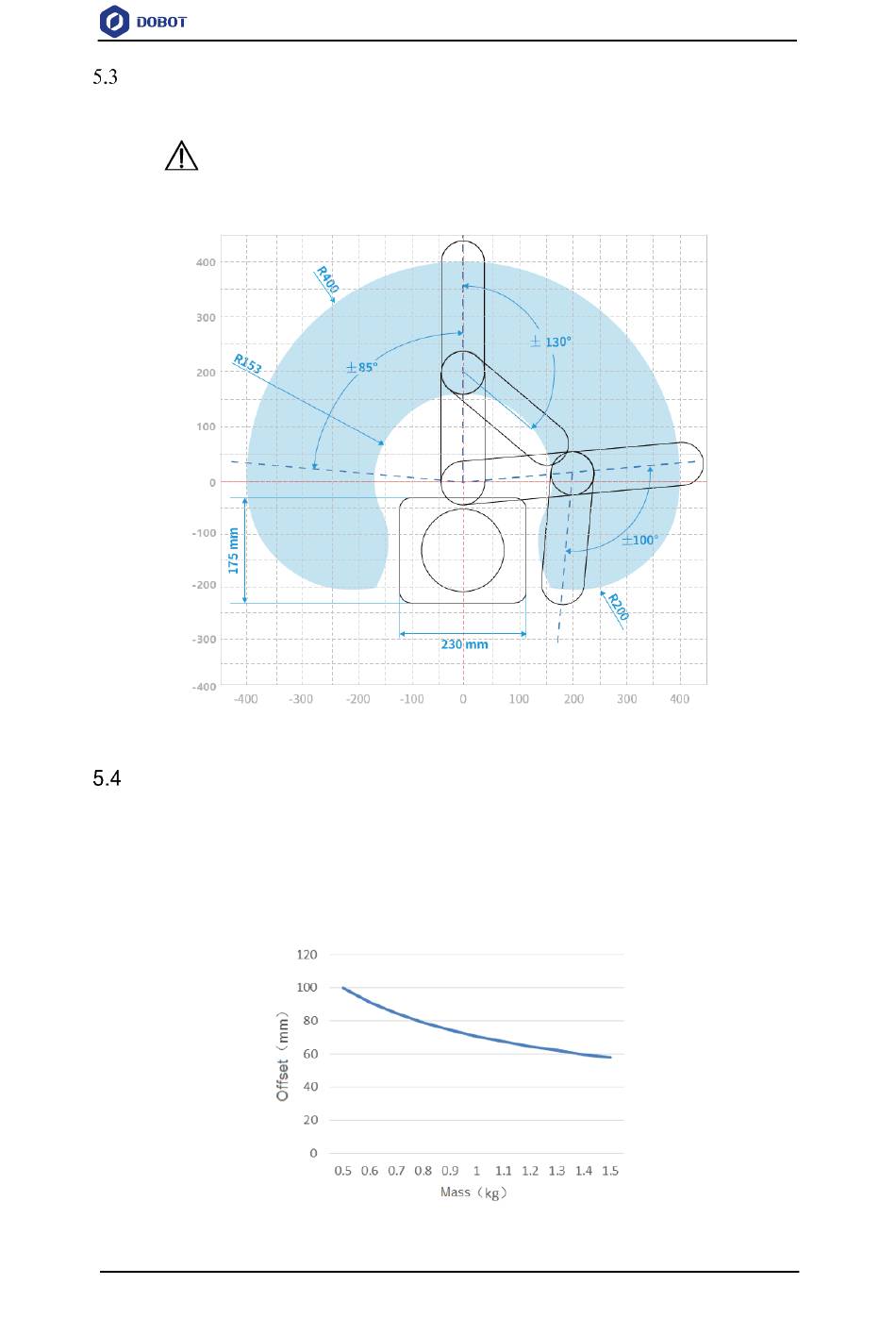

Figure 5.3 shows the workspace of M1 Pro robot.
NOTICE
When operating the robot, be sure to operate inside the workspace.
Robot load curve
The load offset that the robot can bear is within 100mm from the J4 axis, that is, the center of
mass of the load needs to be within the range of the cylinder 100mm from the center of the end
flange; The maximum load that the robot can bear is 1.5kg, which decreases with the increase of the
load offset, as shown in the figure below (when the load offset is 100mm, the maximum load of the
robot is 0.5kg).
Issue V1.3 (2023-02-02)
Dobot M1 Pro Hardware User Guide
Figure 5.3 M1 Pro robot workspace
Figure 5.4 M1 Pro load curve
