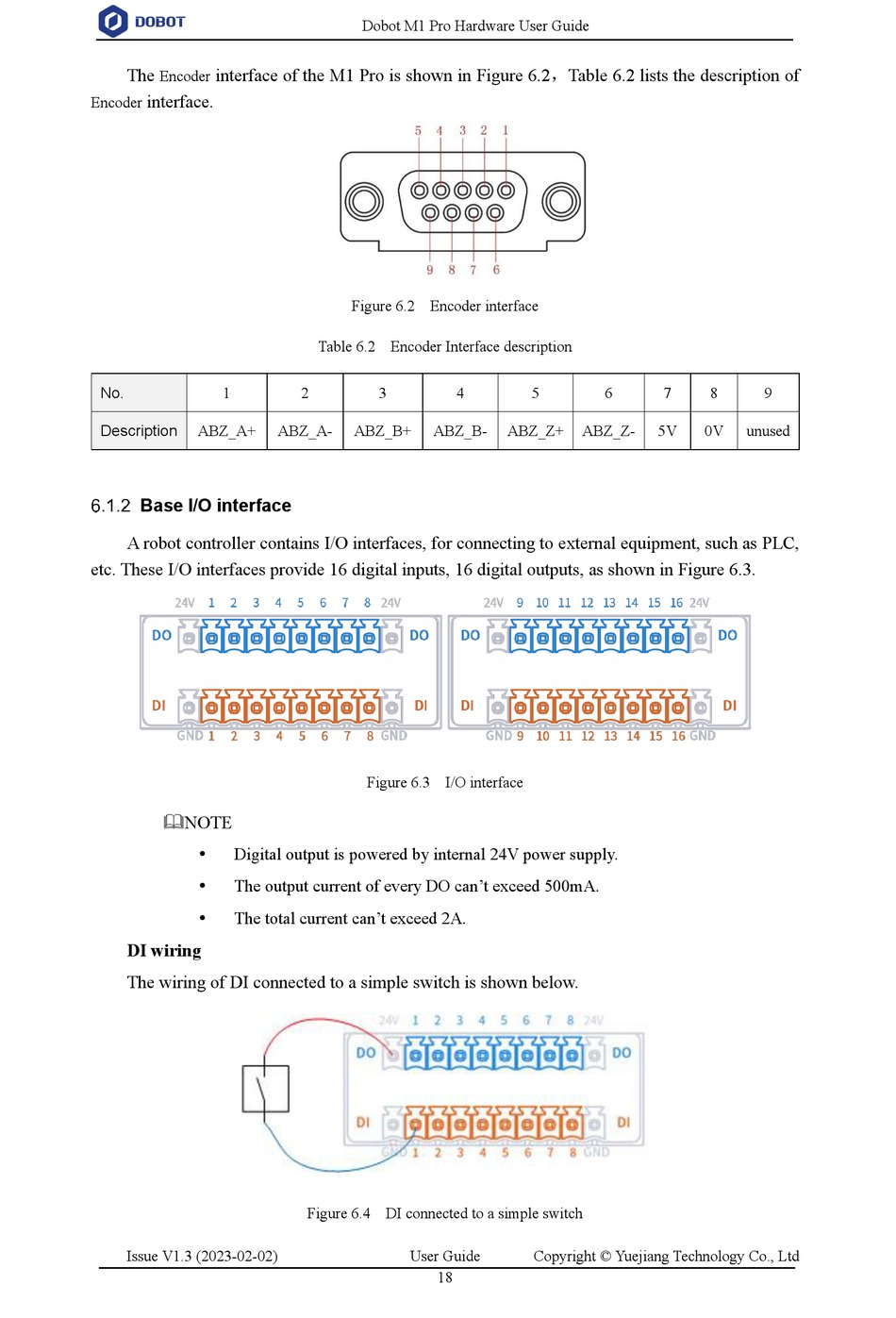

The
interface of the M1 Pro is shown in Figure 6.2,Table 6.2 lists the description of
Encoder
interface.
Encoder
No.
1
Description
ABZ_A+

Base I/O interface

A robot controller contains I/O interfaces, for connecting to external equipment, such as PLC,
etc. These I/O interfaces provide 16 digital inputs, 16 digital outputs, as shown in Figure 6.3.
NOTE
Digital output is powered by internal 24V power supply.
The output current of every DO can't exceed 500mA.
The total current can't exceed 2A.
DI wiring
The wiring of DI connected to a simple switch is shown below.
Issue V1.3 (2023-02-02)
Dobot M1 Pro Hardware User Guide
Figure 6.2 Encoder interface
Table 6.2 Encoder Interface description
2
3
ABZ_A-
ABZ_B+
ABZ_B-
Figure 6.3 I/O interface
Figure 6.4 DI connected to a simple switch
User Guide
18
4
5
6
ABZ_Z+
ABZ_Z-
Copyright © Yuejiang Technology Co., Ltd
7
8
9
5V
0V
unused
