Transportation

You need to transport the robot in its packaging posture (As shown below), and use the original
packaging for transportation. The robotic arm has 4 joints, namely J1, J2, J3, and J4. The joint
angles/position corresponding to the packaging posture are: J1= 0°, J2= 0°, J3=0mm, J4= 0°. The
adjustment of the joint angle/position can be realized by jogging or programming. For specific
operations, please refer to the user guide of the control software.
During transportation, ensure that the robot arm is stable and fixed by corresponding measures.
During transportation and long-term storage, ensure that the ambient temperature ranges from
-20 °C to +55 °C, and the ambient humidity is no more than 95% without condensation.
When moving the robot from its packaging to the installation space, hold the robot arm in place
until all mounting bolts are securely tightened at the base of the robot.
After transportation, store the original package in a dry place for repacking and transporting it
in the future.
WARNING
 Ensure that the operator is not unduly stressed on their back or other body parts
when lifting the equipment, and use appropriate lifting equipment if necessary.
 Dobot shall not be held responsible for any damage caused by transportation of the
equipment.
 Be sure to follow all installation instructions when installing the robot.
Issue V1.3 (2023-02-02)
Dobot M1 Pro Hardware User Guide

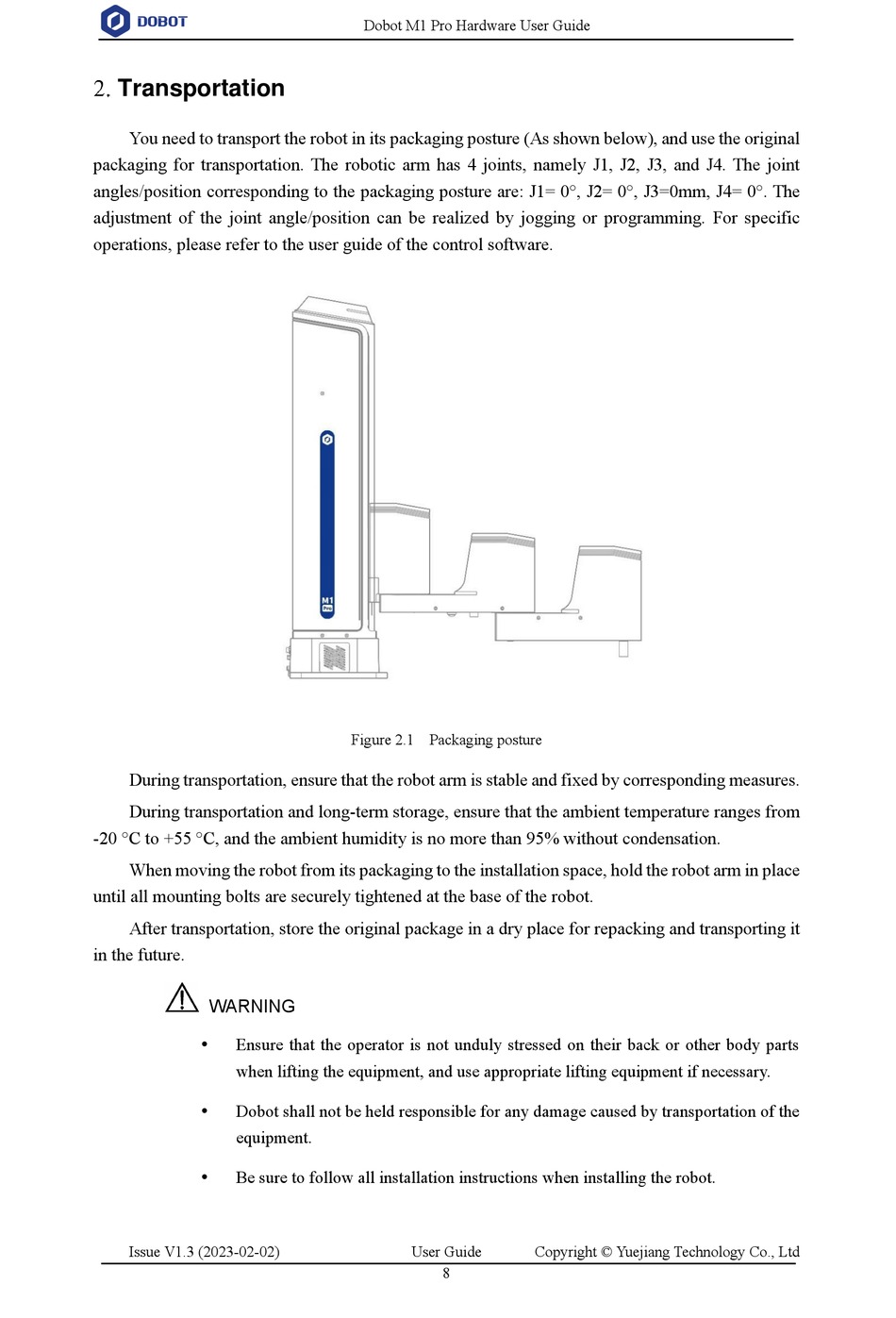

Figure 2.1 Packaging posture
