I Memory Bank Scan - Icom IC-91A Instruction Manual

9
SCAN OPERATION

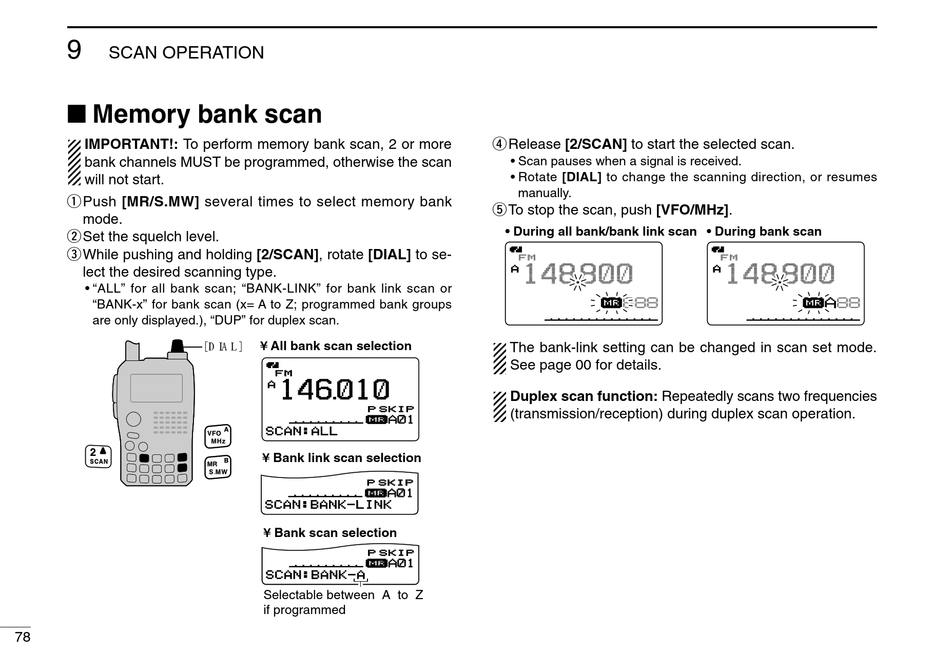

I Memory bank scan

IMPORTANT!: To perform memory bank scan, 2 or more
bank channels MUST be programmed, otherwise the scan
will not start.
qPush [MR/S.MW] several times to select memory bank
mode.
w Set the squelch level.
eWhile pushing and holding [2/SCAN], rotate [DIAL] to se-
lect the desired scanning type.
• "ALL" for all bank scan; "BANK-LINK" for bank link scan or
"BANK-x" for bank scan (x= A to Z; programmed bank groups
are only displayed.), "DUP" for duplex scan.
78
¥ All bank scan selection
[DIAL]
FM FM
146 010
A
P SKIP SKIP
µ
SCAN:ALL
FM
148 800
¥ Bank link scan selection A
P SKIP SKIP
µ
SCAN:BANK-LINK
FM
148 800
A
¥ Bank scan selection
P SKIP SKIP
µ
SCAN:BANK-A
Selectable between A to Z
if programmed
r Release [2/SCAN] to start the selected scan.
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction, or resumes
manually.
t To stop the scan, push [VFO/MHz].
• During all bank/bank link scan • During bank scan
FM
148 800
A
The bank-link setting can be changed in scan set mode.
See page 00 for details.
Duplex scan function: Repeatedly scans two frequencies
(transmission/reception) during duplex scan operation.
A01 A01
A01 A01
A01 A01
FM
148 800
A
888
µ
A88
µ
