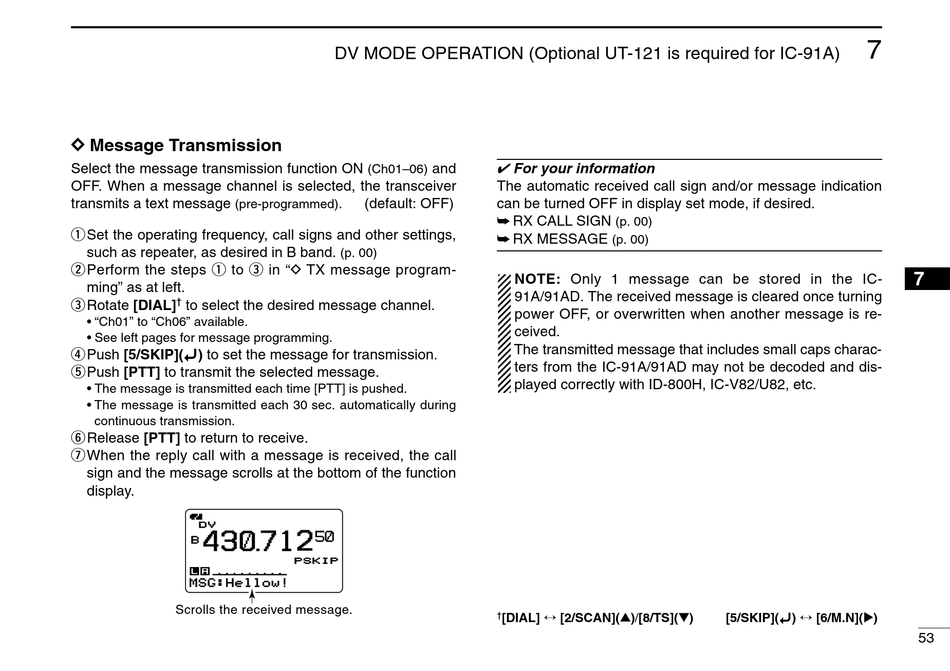

Icom IC-91A Instruction Manual page 59

D D Message Transmission
Select the message transmission function ON
OFF. When a message channel is selected, the transceiver
transmits a text message
(pre-programmed)
qSet the operating frequency, call signs and other settings,
such as repeater, as desired in B band.
wPerform the steps q to e in "D TX message program-
ming" as at left.
eRotate [DIAL] †
to select the desired message channel.
• "Ch01" to "Ch06" available.
• See left pages for message programming.
rPush [5/SKIP](ï) to set the message for transmission.
tPush [PTT] to transmit the selected message.
• The message is transmitted each time [PTT] is pushed.
• The message is transmitted each 30 sec. automatically during
continuous transmission.
y Release [PTT] to return to receive.
uWhen the reply call with a message is received, the call
sign and the message scrolls at the bottom of the function
display.
DV DV
430 712
B
MSG:Hellow!
Scrolls the received message.
DV MODE OPERATION (Optional UT-121 is required for IC-91A)
and
(Ch01–06)
. (default: OFF)
(p. 00)
50
PSKIP PSKIP
✔ For your information
The automatic received call sign and/or message indication
can be turned OFF in display set mode, if desired.
➥ RX CALL SIGN
(p. 00)
➥ RX MESSAGE
(p. 00)
NOTE: Only 1 message can be stored in the IC-
91A/91AD. The received message is cleared once turning
power OFF, or overwritten when another message is re-
ceived.
The transmitted message that includes small caps charac-
ters from the IC-91A/91AD may not be decoded and dis-
played correctly with ID-800H, IC-V82/U82, etc.
[DIAL] ↔ [2/SCAN](∫ ∫ )/[8/TS](√ √ )
†
7
[5/SKIP](ï) ↔ [6/M.N](≈ ≈ )
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
53
