7
DV MODE OPERATION (Optional UT-121 is required for IC-91A)

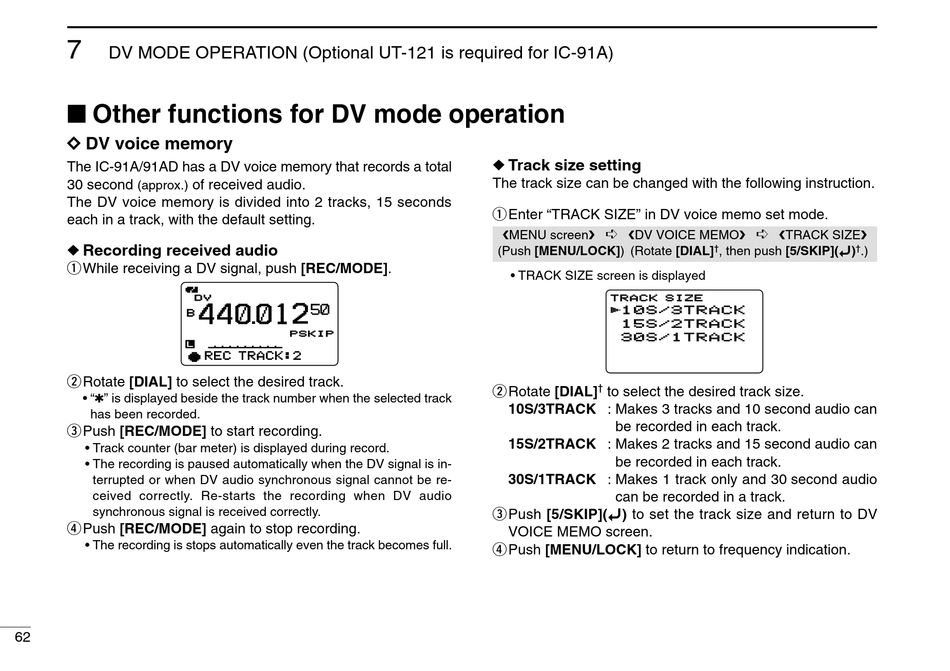

I Other functions for DV mode operation

D D DV voice memory
The IC-91A/91AD has a DV voice memory that records a total
30 second of received audio.
(approx.)
The DV voice memory is divided into 2 tracks, 15 seconds
each in a track, with the default setting.
N Recording received audio
q While receiving a DV signal, push [REC/MODE].
B
qREC TRACK:2
w Rotate [DIAL] to select the desired track.
• "✱" is displayed beside the track number when the selected track
has been recorded.
e Push [REC/MODE] to start recording.
• Track counter (bar meter) is displayed during record.
• The recording is paused automatically when the DV signal is in-
terrupted or when DV audio synchronous signal cannot be re-
ceived correctly. Re-starts the recording when DV audio
synchronous signal is received correctly.
r Push [REC/MODE] again to stop recording.
• The recording is stops automatically even the track becomes full.
62
DV DV
440 012
50
PSKIP PSKIP
N Track size setting
The track size can be changed with the following instruction.
q Enter "TRACK SIZE" in DV voice memo set mode.
➪
MENU screen DV VOICE MEMO
(Push [MENU/LOCK]) (Rotate [DIAL]
• TRACK SIZE screen is displayed
TRACK SIZE TRACK SIZE
10S/3TRACK 10S/3TRACK
r
15S/2TRACK 15S/2TRACK
30S/1TRACK 30S/1TRACK
w Rotate [DIAL] †
to select the desired track size.
10S/3TRACK : Makes 3 tracks and 10 second audio can
be recorded in each track.
15S/2TRACK : Makes 2 tracks and 15 second audio can
be recorded in each track.
30S/1TRACK : Makes 1 track only and 30 second audio
can be recorded in a track.
ePush [5/SKIP](ï) to set the track size and return to DV
VOICE MEMO screen.
r Push [MENU/LOCK] to return to frequency indication.
➪
TRACK SIZE
† †
, then push [5/SKIP](ï) .)
