7
DV MODE OPERATION (Optional UT-121 is required for IC-91A)

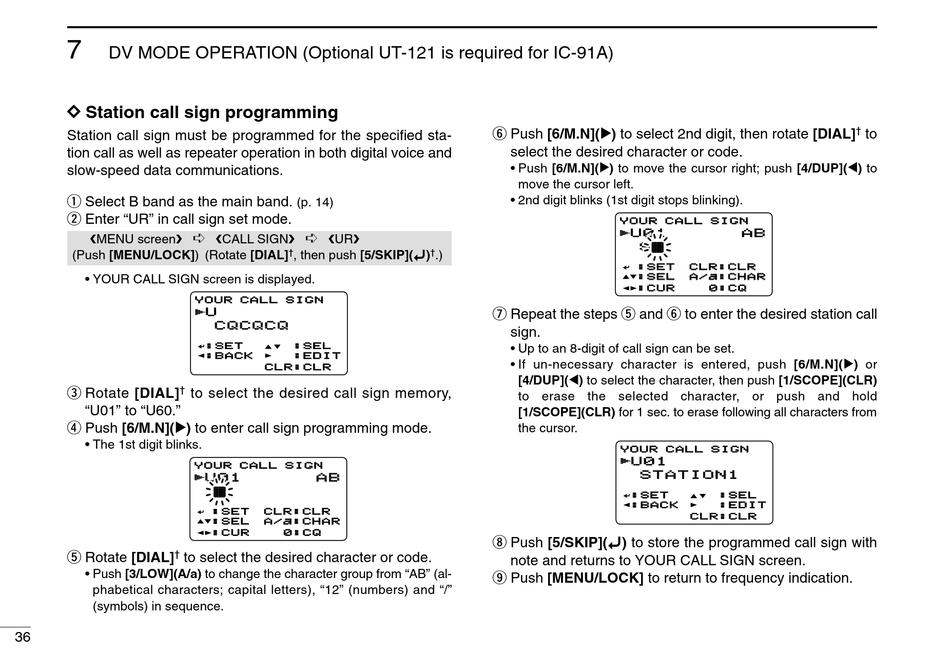

D D Station call sign programming
Station call sign must be programmed for the specified sta-
tion call as well as repeater operation in both digital voice and
slow-speed data communications.
q Select B band as the main band.
w Enter "UR" in call sign set mode.
➪
MENU screen
(Push [MENU/LOCK]) (Rotate [DIAL]
• YOUR CALL SIGN screen is displayed.
r
e Rotate [DIAL]
†
to select the desired call sign memory,
"U01" to "U60."
r Push [6/M.N](≈ ≈ ) to enter call sign programming mode.
• The 1st digit blinks.
YOUR CALL SIGN YOUR CALL SIGN
r
t Rotate [DIAL] †
to select the desired character or code.
• Push [3/LOW](A/a) to change the character group from "AB" (al-
phabetical characters; capital letters), "12" (numbers) and "/"
(symbols) in sequence.
36
(p. 14)
➪
CALL SIGN UR
†
, then push [5/SKIP](ï)
YOUR CALL SIGN
U
CQCQCQ CQCQCQ
:SET :SEL
:BACK :EDIT
CLR:CLR
U01 U01 AB AB
†
:SET :SET CLR:CLR CLR:CLR
:SEL :SEL A/a:CHAR A/a:CHAR
:CUR :CUR 0:CQ 0:CQ
y Push [6/M.N](≈ ≈ ) to select 2nd digit, then rotate [DIAL]
select the desired character or code.
• Push [6/M.N](≈ ≈ ) to move the cursor right; push [4/DUP](Ω Ω ) to
move the cursor left.
• 2nd digit blinks (1st digit stops blinking).
†
.)
u Repeat the steps t and y to enter the desired station call
sign.
• Up to an 8-digit of call sign can be set.
• If un-necessary character is entered, push [6/M.N](≈ ≈ ) or
[4/DUP](Ω Ω ) to select the character, then push [1/SCOPE](CLR)
to erase the selected character, or push and hold
[1/SCOPE](CLR) for 1 sec. to erase following all characters from
the cursor.
i Push [5/SKIP](ï) to store the programmed call sign with
note and returns to YOUR CALL SIGN screen.
o Push [MENU/LOCK] to return to frequency indication.
YOUR CALL SIGN YOUR CALL SIGN
U01 AB
r
S†
:SET :SET CLR:CLR CLR:CLR
:SEL :SEL A/a:CHAR A/a:CHAR
:CUR :CUR 0:CQ 0:CQ
YOUR CALL SIGN
U01 U01
r
STATION1 STATION1
:SET :SEL
:BACK :EDIT
CLR:CLR
†
to
