4

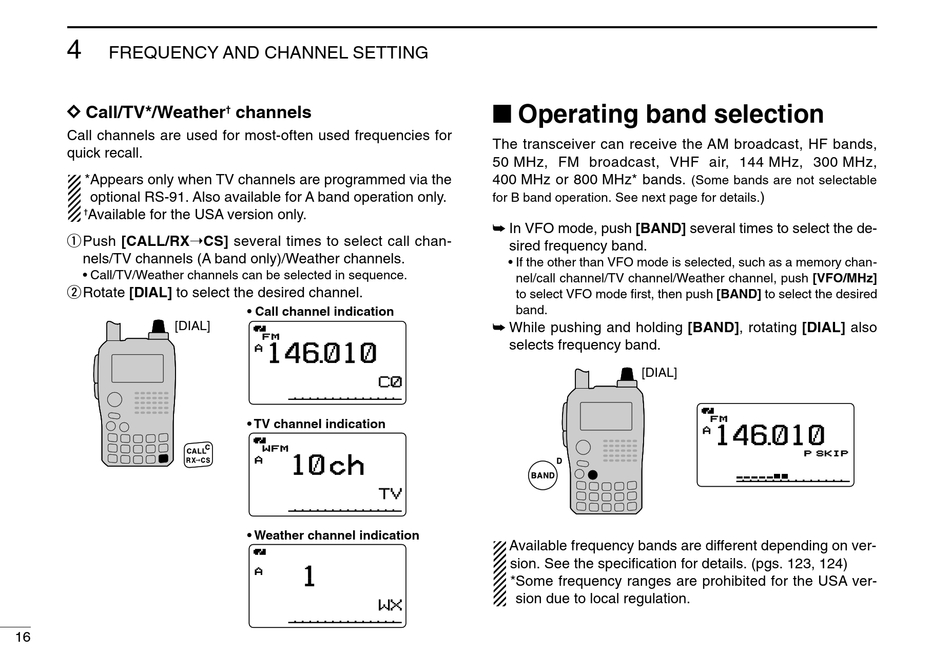

FREQUENCY AND CHANNEL SETTING
D D Call/TV*/Weather
Call channels are used for most-often used frequencies for
quick recall.
*Appears only when TV channels are programmed via the
optional RS-91. Also available for A band operation only.
† Available for the USA version only.
qPush [CALL/RX➝CS] several times to select call chan-
nels/TV channels (A band only)/Weather channels.
• Call/TV/Weather channels can be selected in sequence.
w Rotate [DIAL] to select the desired channel.
[DIAL]
16
† channels
• Call channel indication
+DUP +DUP DTCS DTCS
FM FM PRIO PRIO WX WX EMR EMR
146 010
25
A
MemoName MemoName
P SKIP
µ C0 C0
LOW LOW
ATT ATT
• TV channel indication
+DUP +DUP DTCS DTCS
WFM WFM PRIO PRIO WX WX EMR EMR
10 ch
25
A
MemoName MemoName
P SKIP
TV TV
µ
LOW LOW
ATT ATT
• Weather channel indication
+DUP +DUP DTCS DTCS
WFM WFM PRIO PRIO WX WX EMR EMR
1
25
A
MemoName MemoName
P SKIP
µ WX WX
LOW LOW
ATT ATT

I Operating band selection

The transceiver can receive the AM broadcast, HF bands,
50 MHz, FM broadcast, VHF air, 144 MHz, 300 MHz,
400 MHz or 800 MHz* bands.
for B band operation. See next page for details.
➥ In VFO mode, push [BAND] several times to select the de-
sired frequency band.
• If the other than VFO mode is selected, such as a memory chan-
nel/call channel/TV channel/Weather channel, push [VFO/MHz]
to select VFO mode first, then push [BAND] to select the desired
band.
➥ While pushing and holding [BAND], rotating [DIAL] also
selects frequency band.
[DIAL]
Available frequency bands are different depending on ver-
sion. See the specification for details. (pgs. 123, 124)
*Some frequency ranges are prohibited for the USA ver-
sion due to local regulation.
(Some bands are not selectable
)
+DUP +DUP DTCS DTCS
FM FM PRIO PRIO WX WX EMR EMR
146 010
25
A
MemoName
P SKIP
µ 000 000
LOW LOW
ATT ATT
