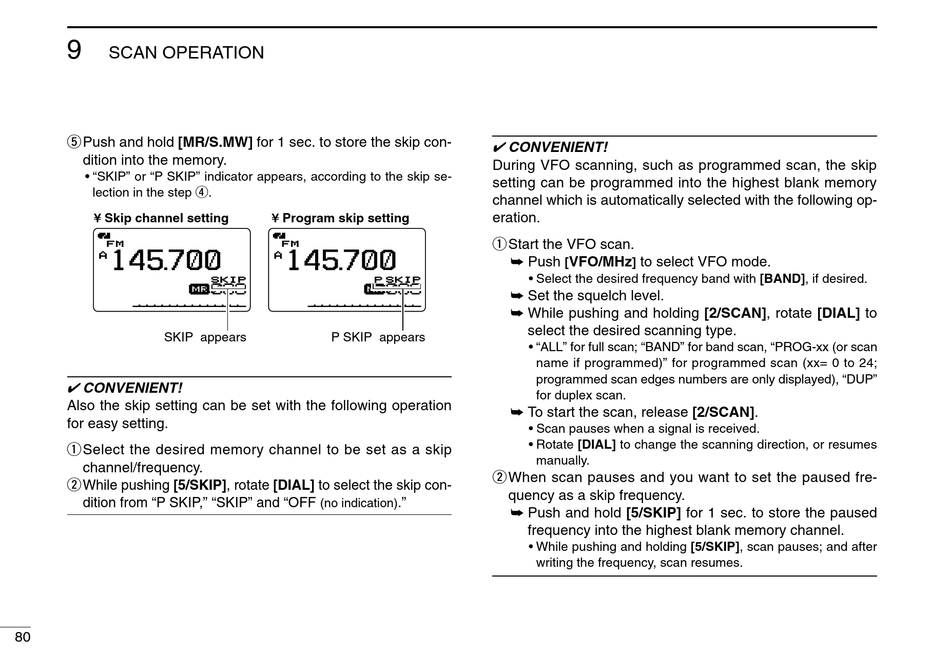

Icom IC-91A Instruction Manual page 86

9
SCAN OPERATION
tPush and hold [MR/S.MW] for 1 sec. to store the skip con-
dition into the memory.
• "SKIP" or "P SKIP" indicator appears, according to the skip se-
lection in the step r.
¥ Skip channel setting
FM FM
145 700
A
µ
SKIP appears
✔ CONVENIENT!
Also the skip setting can be set with the following operation
for easy setting.
qSelect the desired memory channel to be set as a skip
channel/frequency.
wWhile pushing [5/SKIP], rotate [DIAL] to select the skip con-
dition from "P SKIP," "SKIP" and "OFF
80
¥ Program skip setting
FM FM
145 700
A
SKIP SKIP P SKIP SKIP
033 033 µ 033 033
P SKIP appears
(no indication)
✔ CONVENIENT!
During VFO scanning, such as programmed scan, the skip
setting can be programmed into the highest blank memory
channel which is automatically selected with the following op-
eration.
q Start the VFO scan.
➥ Push
VFO/MHz
[
• Select the desired frequency band with [BAND], if desired.
➥ Set the squelch level.
➥ While pushing and holding [2/SCAN], rotate [DIAL] to
select the desired scanning type.
• "ALL" for full scan; "BAND" for band scan, "PROG-xx (or scan
name if programmed)" for programmed scan (xx= 0 to 24;
programmed scan edges numbers are only displayed), "DUP"
for duplex scan.
➥ To start the scan, release [2/SCAN].
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction, or resumes
manually.
wWhen scan pauses and you want to set the paused fre-
quency as a skip frequency.
."
➥ Push and hold [5/SKIP] for 1 sec. to store the paused
frequency into the highest blank memory channel.
• While pushing and holding [5/SKIP], scan pauses; and after
writing the frequency, scan resumes.
to select VFO mode.
]
