Dosimag
5
Installation
5.1
Installation conditions
5.1.1
Mounting position

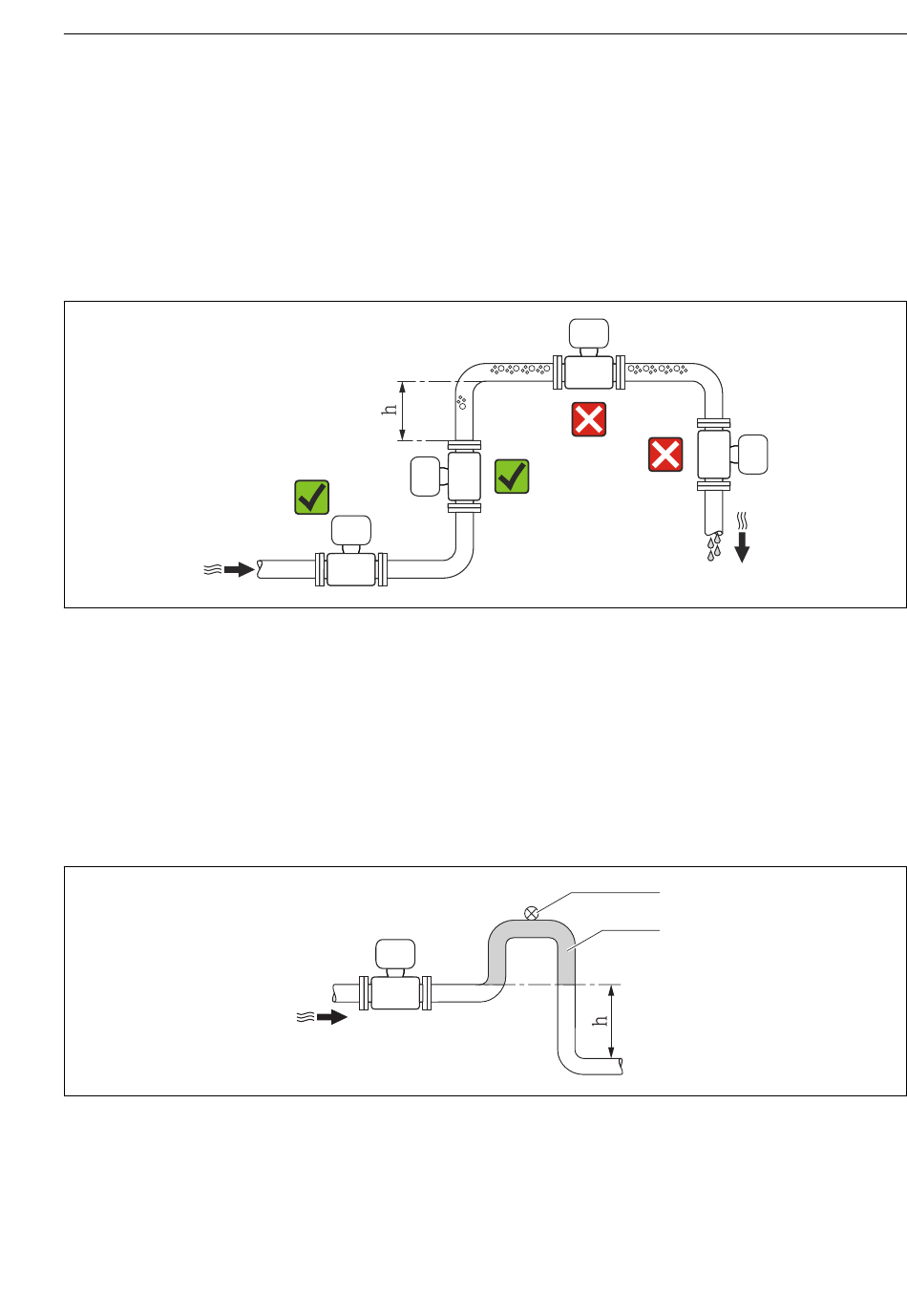

Mounting location
h ≥ 2 × DN
Installation in down pipes
Install a siphon with a vent valve downstream of the sensor in down pipes whose length h ≥
5 m (16.4 ft). This precaution is to avoid low pressure and the consequent risk of damage to
the measuring tube. This measure also prevents the system losing prime.
2
Installation in a down pipe
1
Vent valve
2
Pipe siphon
h
Length of down pipe
Endress+Hauser
Installation
1
2
A0023343
A0017064
13
