Installation

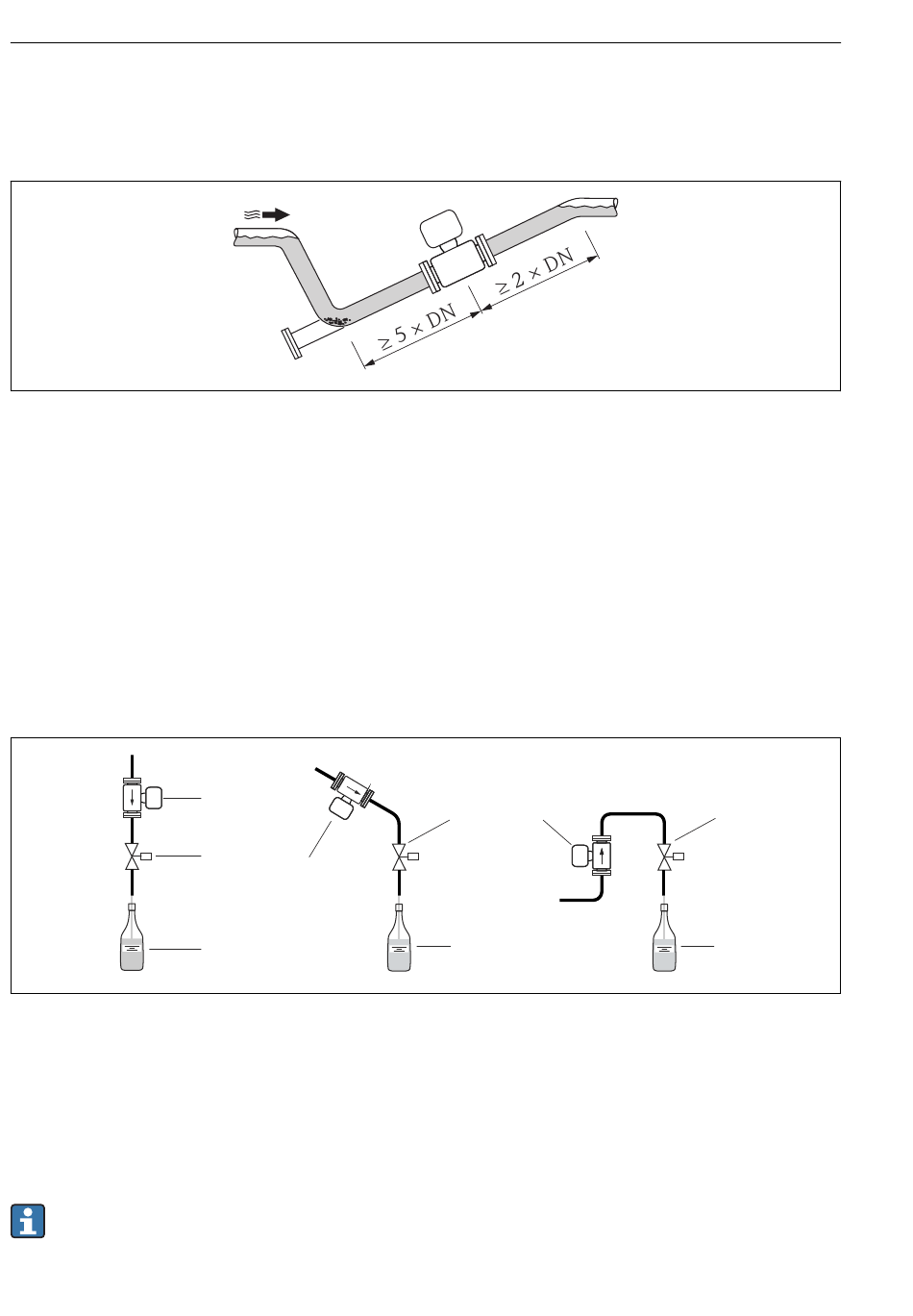

Installation in partially filled pipes
A partially filled pipe with a gradient necessitates a drain-type configuration.
Orientation
The direction of the arrow on the sensor nameplate helps you to install the sensor according
to the flow direction.
An optimum orientation position helps avoid gas and air accumulations and deposits in the
measuring tube.
Batching systems
Optimum measurement takes place when the pipe system is completely filled with the
medium.
 3 Batching system
1 Measuring device
2 Batch valve
3 Vessel
Horizontal
The measuring electrode plane must be horizontal. This prevents brief insulation of the
two measuring electrodes by entrained air bubbles.
14
1
2
1
3
1
2
3
Dosimag
A0017063
2
3
A0003795
