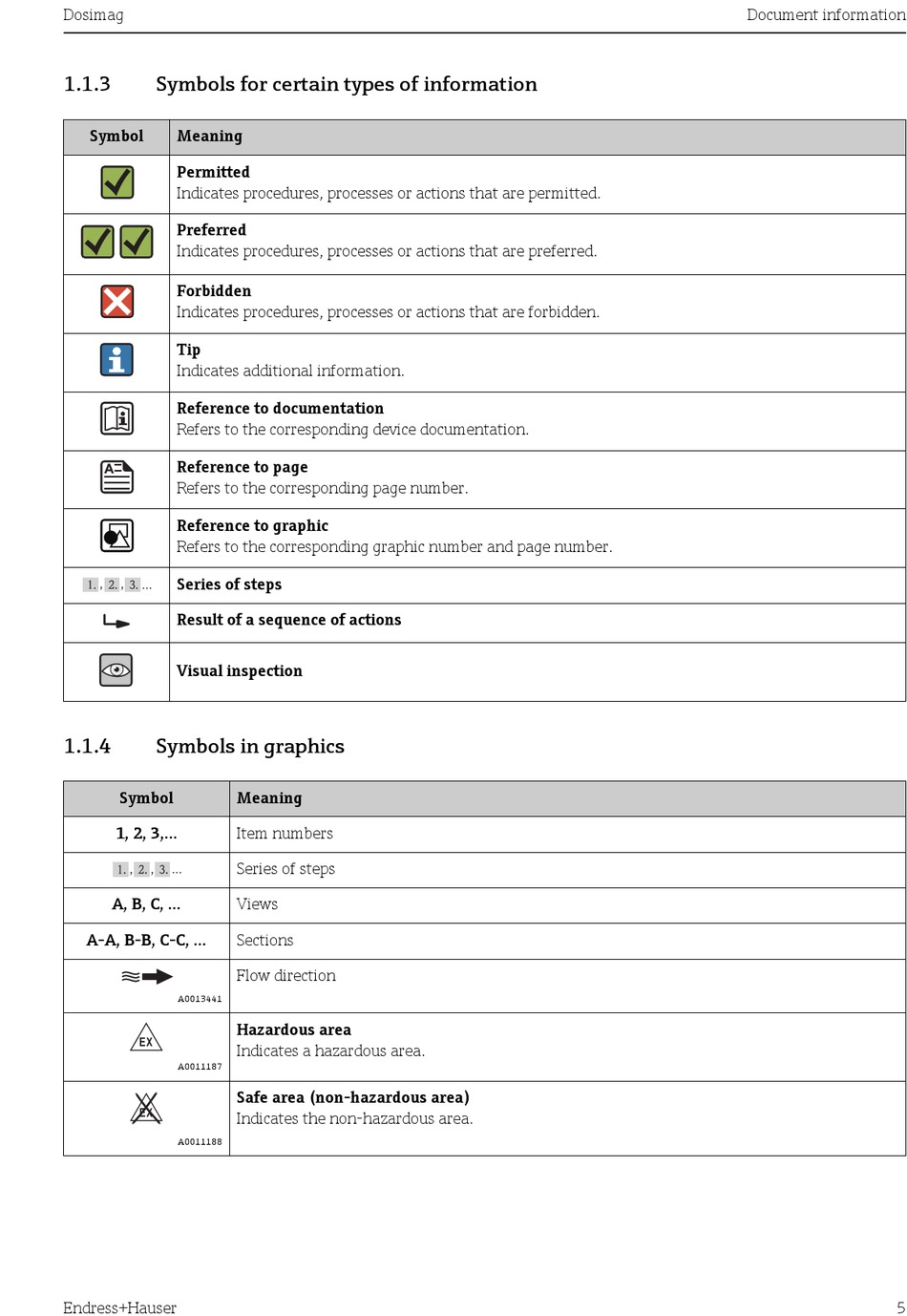

Dosimag
1.1.3
Symbols for certain types of information
Symbol
Meaning
Permitted
Indicates procedures, processes or actions that are permitted.
Preferred
Indicates procedures, processes or actions that are preferred.
Forbidden
Indicates procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation
Refers to the corresponding device documentation.
Reference to page
Refers to the corresponding page number.
Reference to graphic
Refers to the corresponding graphic number and page number.
Series of steps
,
,
...
Result of a sequence of actions
Visual inspection
1.1.4
Symbols in graphics
Symbol
1, 2, 3,...
,
,
...
A, B, C, ...
A-A, B-B, C-C, ...
A0013441
-
A0011187
.
A0011188
Endress+Hauser
Meaning
Item numbers
Series of steps
Views
Sections
Flow direction
Hazardous area
Indicates a hazardous area.
Safe area (non-hazardous area)
Indicates the non-hazardous area.
Document information
5
