Dosimag
Connection option 4
E

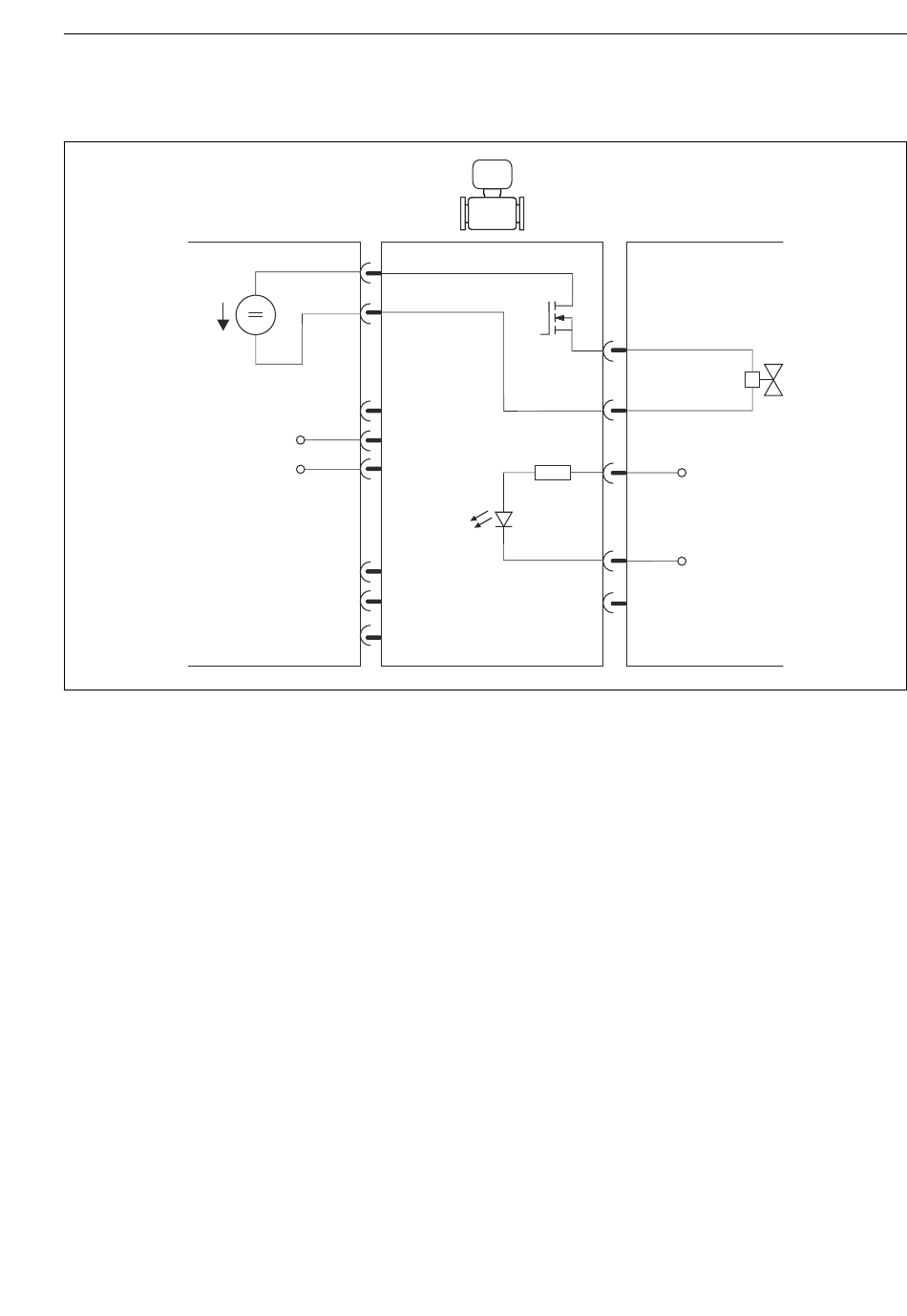

 10 Batch option with 1 valve
A Socket, input
B Connector, input
B.1 Supply voltage +
B.2 Service interface
B.3 Service interface
B.4 Supply voltage –
B.5 N.C.
B.6 Modbus A
B.7 Modbus B
B.8 Service interface
C Socket, batch output
C.1 AUX +
C.2 AUX –
C.3 Batch –
C.4 Batch output +
C.5 N.C.
D Connector, batch output
E PELV or SELV power supply
F Valve
Endress+Hauser
A B
1
+
4
-
5
6
7
2
3
8
C
D
4
F
3
1
2
5
Electrical connection
A0023238
25
