Electrical connection

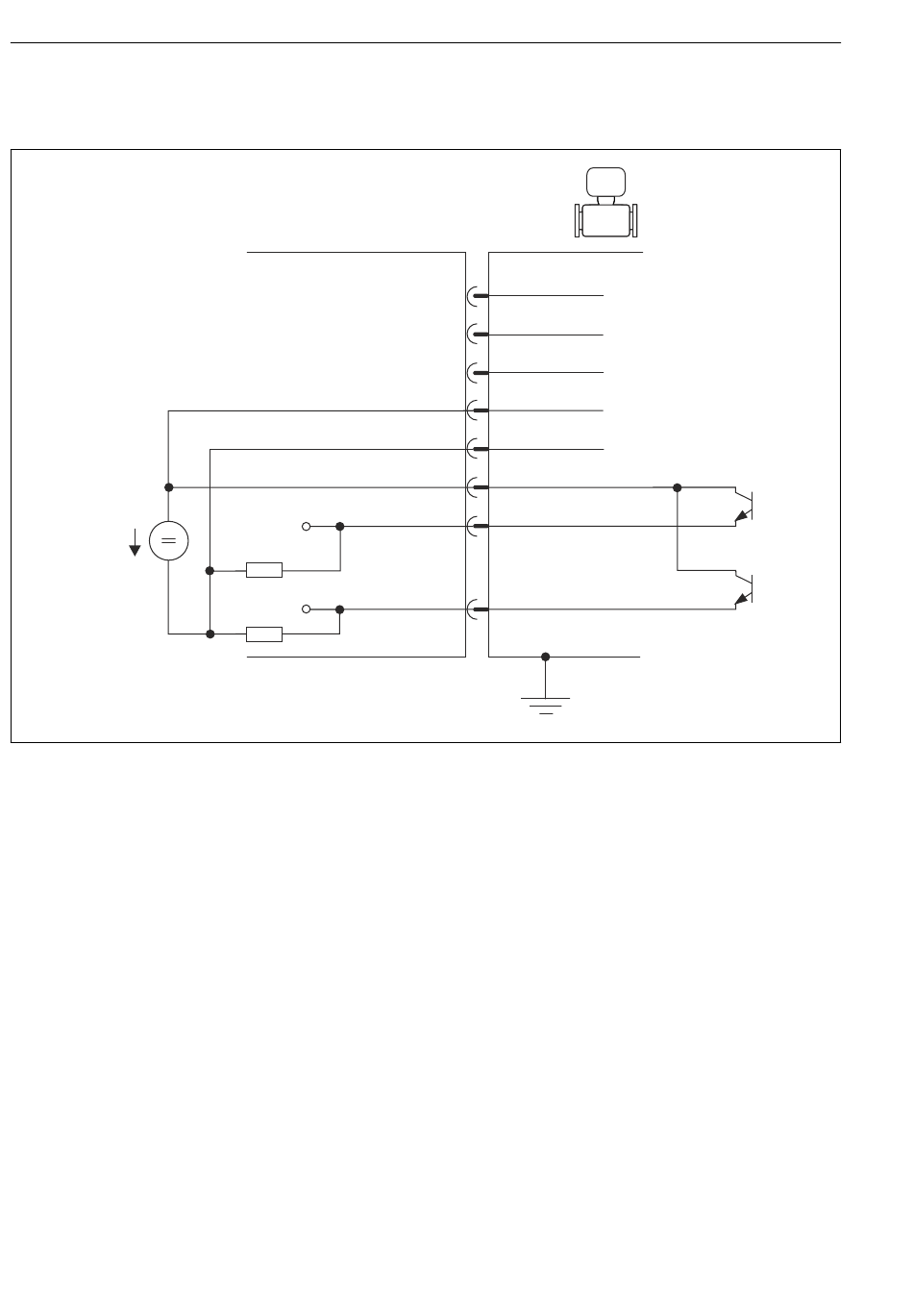

Connection option 3
+
E
-
 9 8-pin device connection
A Socket, input
B Connector, input
1 Supply voltage +
2 Service interface
3 Service interface
4 Supply voltage –
5 (+) pulse/frequency/status output
6 (–) pulse/frequency/status output
7 (–) pulse/frequency/status output
8 Service interface
E PELV or SELV power supply
24
A B
2
3
8
1
4
5
6
7
PE
Dosimag
A0023237
