I/O Port Specifications

BaseIO VGA Port Information

007-5832-002
This section contains specifications and port pinout information for the base I/O ports of your
system, as follows:
• "BaseIO VGA Port Information" on page 83
• "Ethernet Port" on page 85
• "Serial Ports" on page 86
• "USB Type A Connector" on page 88
The 15-pin VGA port on the baseIO blade (see Figure A-1) has the following features:
• Server-class 2D hardware acceleration support with integrated 24-bit RAMDAC
• Display resolution up to 1600 x 1200 @ 60Hz
• Up to 128 Mbytes DDRII memory interface support
• A single USB keyboard/mouse is supported by the baseIO blade connectors
The baseIO VGA interface (see Table A-5 on page 84) can be used for all basic interaction with
your SGI UV 2000 system. Note that it does not provide a direct interconnect to the system CMC
or SMN.
5 1
10 6
15 11

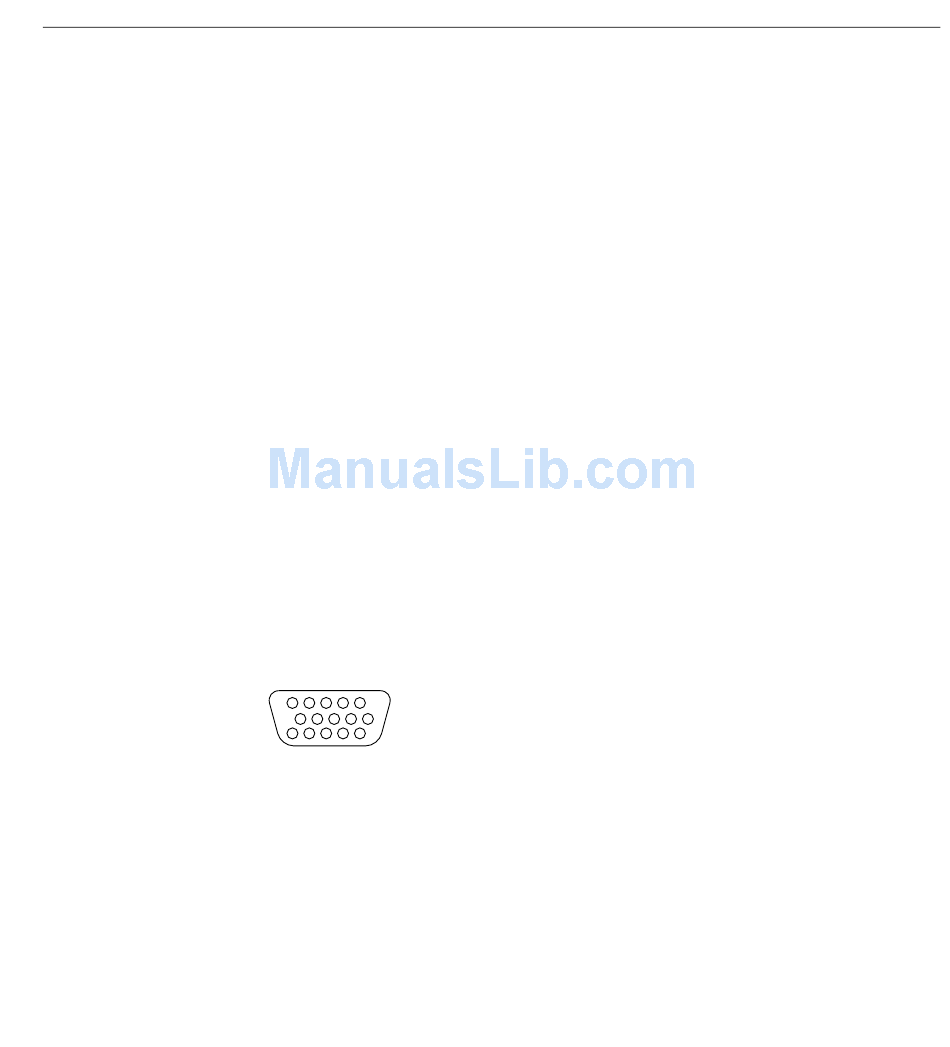

Figure A-1
VGA Port Pinouts
I/O Port Specifications
83
