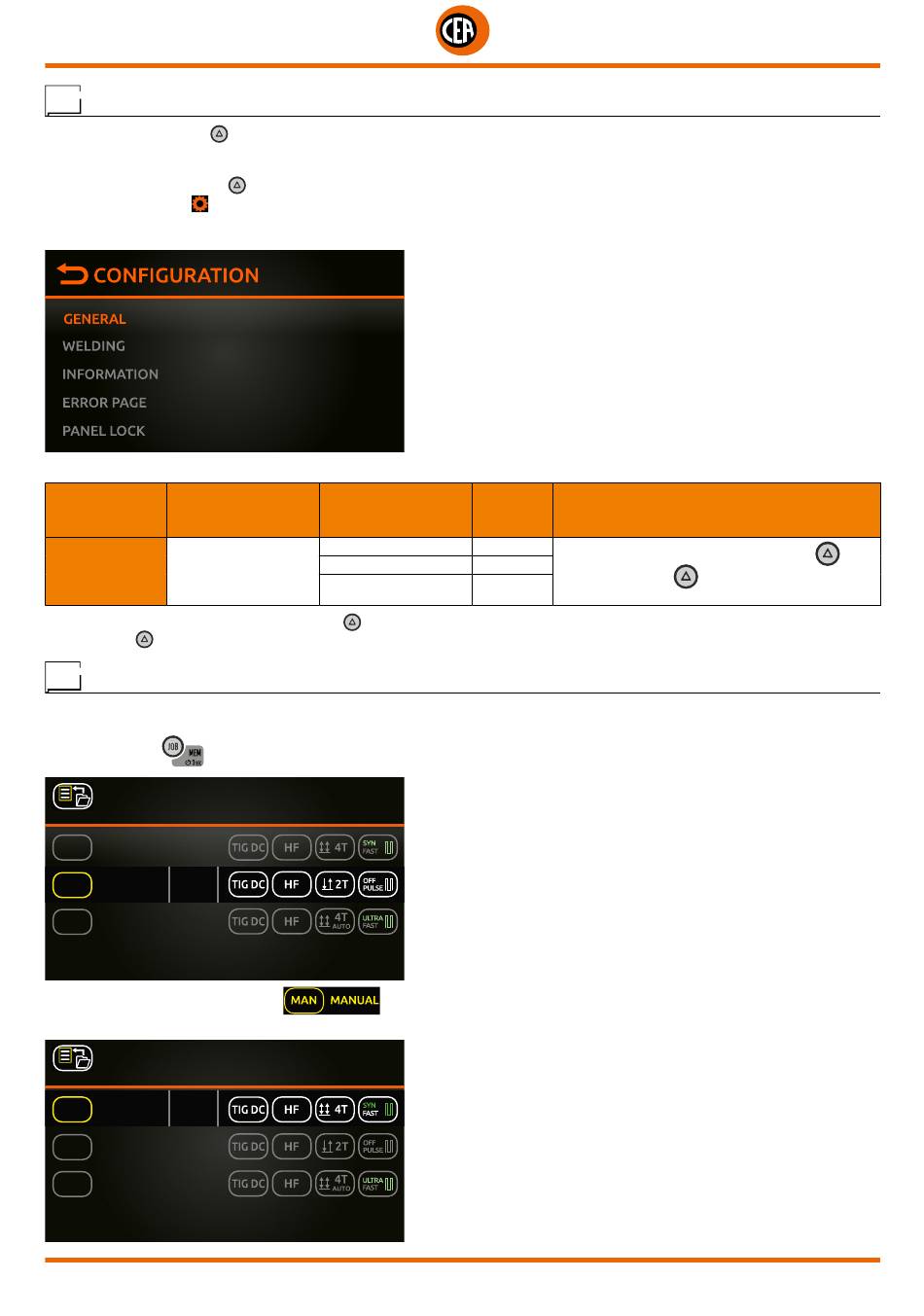

JOB - Setting the shortcut key to your preferred saved program

You can program the SET
To access this information go to the "CONFIGURATION" menu and select the "GENERAL" menu.
You can access the "CONFIGURATION" menu by:
• Holding down the SET key
• By selecting the icon from the process setting page.
• Select the "GENERAL" menu.
Select the "LOAD JOB" option.
MAIN MENU MAIN SUB-MENU
GENERAL SET BUTTON
Now, from the "WELDING" page, push the SET
Push the SET key again to exit the JOB selected, and return to "MANUAL" mode.

JOB - Manual welding

From programmed welding, to go back to setting new programs, go to "MANUAL" welding.
Proceed as follows:
1. When the key is pushed the page that contains a list of the saved programs (JOBS) is displayed.
2 SAVED JOBS
PRESS KNOB TO LOAD
MAN MANUAL 200A
J-01
JOB 01 80A
J-02 JOB 02 120A
2. Rotate and push the knob to load
3. The machine returns to the "MANUAL" welding mode. You can now set new parameters or create new programs.
2 SAVED JOBS
PRESS KNOB TO LOAD
MAN MANUAL 200A
J-01 JOB 01 80A
J-02 JOB 02 120A
key to act as a shortcut to get to your preferred JOB quickly.
for 5 seconds.
PARAMETERS /
HIGH - LOW LIMIT
GAS FLOW TEST
LOCK PANEL
LOAD JOB
key to access the preferred JOB quickly.
PRESS KNOB 2 sec TO EDIT
.
PRESS KNOB 2 sec TO EDIT
DEFAULT
NOTE
VALUE
Set the chosen option for the SET button
Push the SET key
X
option chosen
36
a second time to exit the
