CEA MATRIX X220 AC/DC Operator's Manual page 62

• Rotate the knob to set the maximum welding current. The remote control will regulate the welding current from the minimum to the
maximum welding current set.

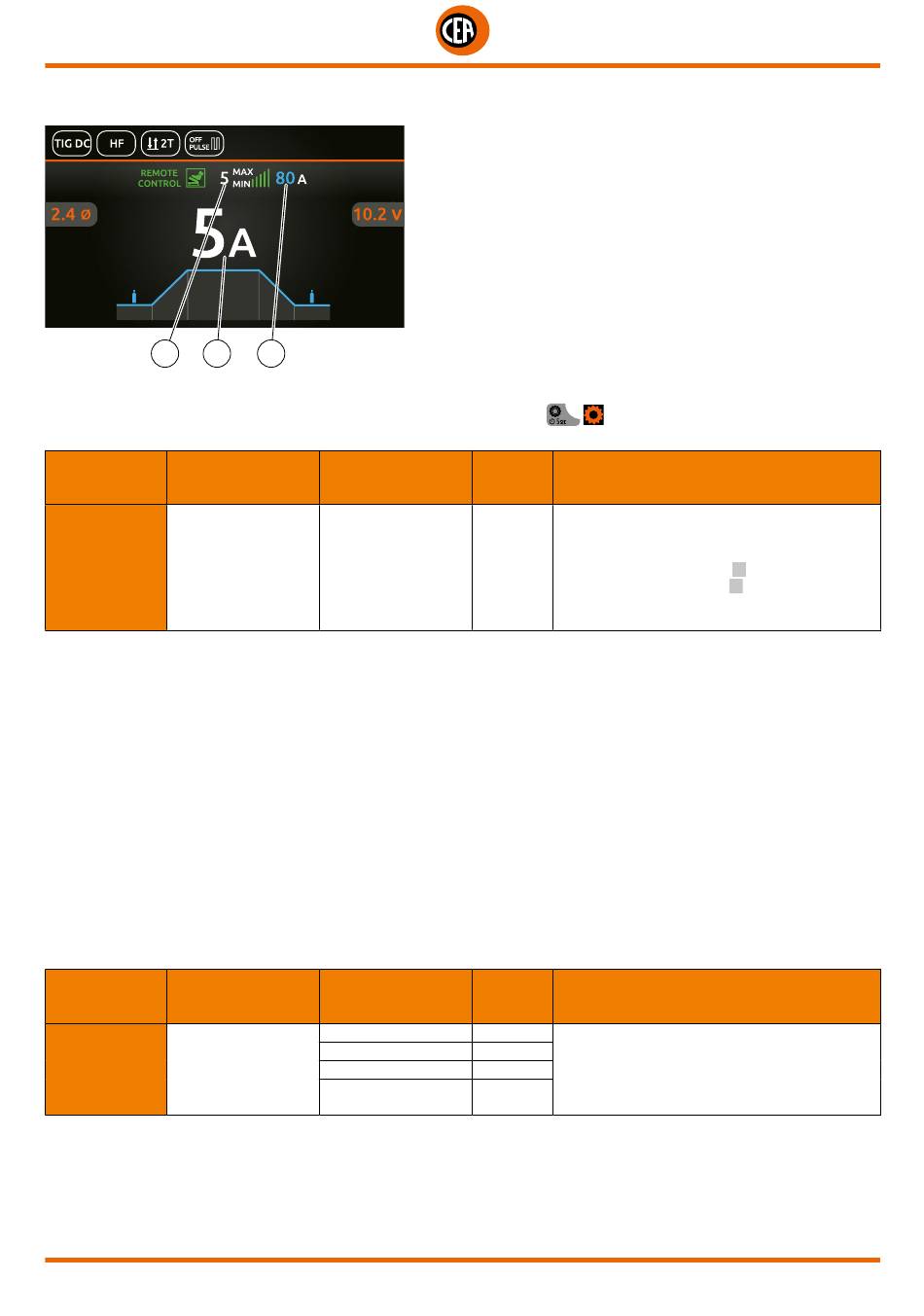

1 3
1. Minimum welding current.
NOTE: You can edit the value for the minimum welding current by accessing the
menu, and the "REMOTE FLOOR" sub-menu.
MAIN MENU MAIN SUB-MENU
WELDING
REMOTE FLOOR
2. Maximum welding current.
3. Welding current.
If you want to change the type of remote control, proceed as follows:
1. Switch off the welding machine "0".
2. Disconnect the remote control currently being used.
3. Switch the welding machine on "I" and, after a few seconds switch the welding machine off again "0" to cancel automatic recogni-
tion of the remote control in use previously.
4. Connect the new remote control.
5. Switch on the welding machine "I".
6. The welding machine recognises the new remote control.
7. Select the type of new remote control used, and proceed as described previously.
Alternatively, proceed as follows:
1. Switch off the welding machine "0".
2. Disconnect the remote control currently being used.
3. Connect the new remote control.
4. Switch on the welding machine "I".
5. Go to the "CONFIGURATION" menu, then the "WELDING" section, and then the "REMOTE MODE" row.
MAIN MENU MAIN SUB-MENU
WELDING REMOTE MODE
6. Select the type of new remote control used, and proceed as described previously.
2
PARAMETERS /
HIGH - LOW LIMIT
5A (1-220) -
MATRIX X220
5A (1-300) -
MATRIX X300
PARAMETERS /
HIGH - LOW LIMIT
REMOTE DISABLED
MANUAL CONTROL
PEDAL CONTROL
POTENTIOMETER
TORCH
"CONFIGURATION" menu, the "WELDING"
DEFAULT
NOTE
VALUE
Minimum settable remote control current limit.
WARNING: If the minimum limit setting (for the re-
mote control MINIMUM CURRENT) is greater than
5 A
or equal to the value for the I
RENT, you will weld at the I
RENT, irrespective of the setting you have chosen
on the remote control.
DEFAULT
NOTE
VALUE
X
Allow disabling / re-enabling of the remote control
used
41
MAIN welding CUR-
1
MAIN welding CUR-
1
