General Description Of Welding Machine Commands And Controls - CEA MATRIX X220 AC/DC Operator's Manual

Table 2 shows the capacity values that are recommended for fuses in the line with delays.
NOTE: Any extensions to the power cable must be of a suitable diameter, and absolutely not of a smaller diameter than
the special cable supplied with the machine.
Model
Input power @ I Max
2
Delayed fuse (I @ 100%)
2
Duty cycle @ X% (40°C)
Mains cable
Length
Section
Ground cable
Section

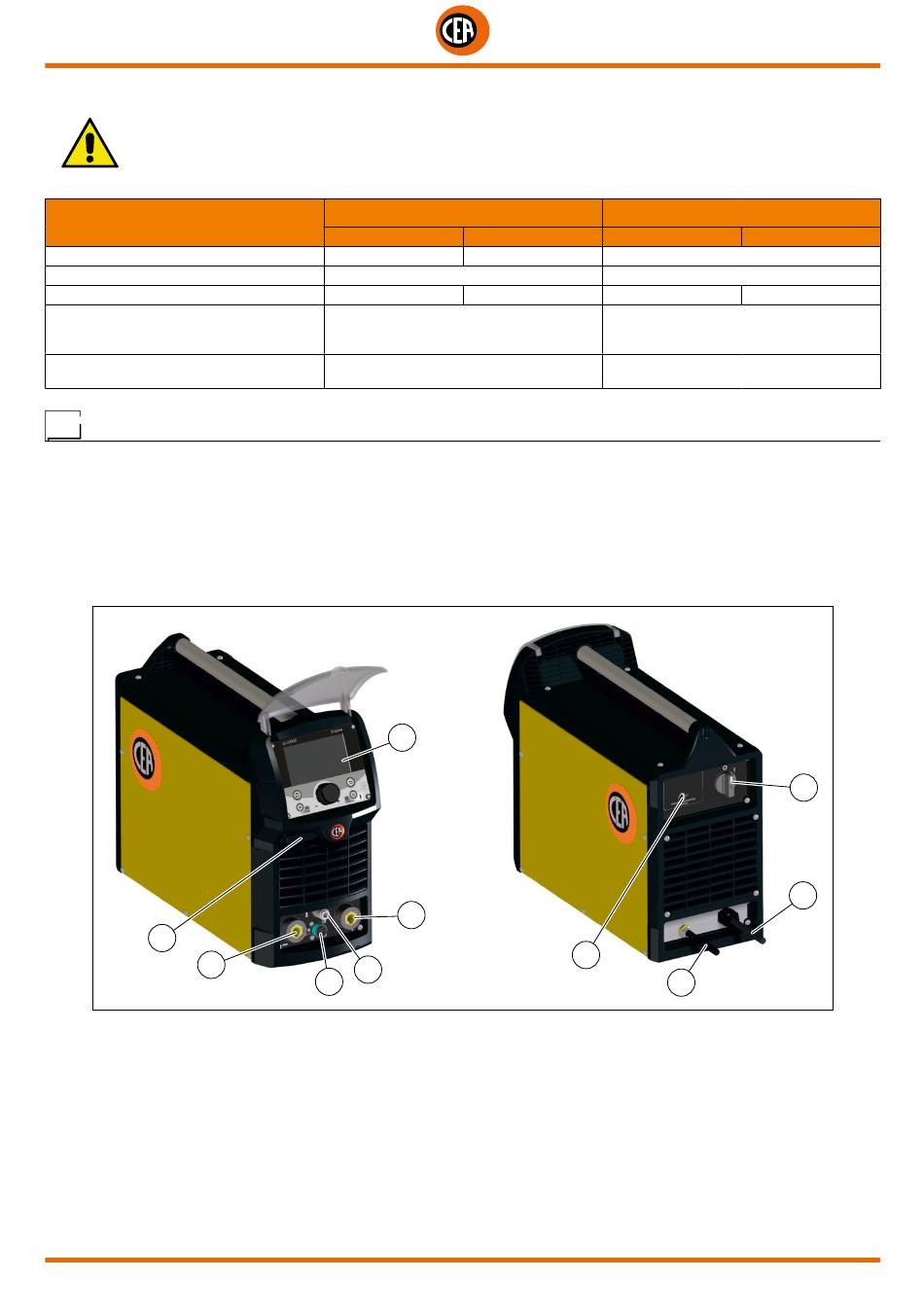

General description of welding machine commands and controls

Pos. 1 XVISION command and control panel.
Pos. 2
Positive pole quick connection.
Pos. 3 Fast coupling TIG torch gas tube.
Pos. 4 TIG weld auxiliary control connector (torch button, remote controlpedal, etc.).
Pos. 5 Negative pole quick connection.
Pos. 6 USB Socket.
Pos. 7 Power supply switch. In the "O" position the welder is off.
Pos. 8 Mains cable.
Pos. 9 Welding gas hose.
Pos. 10 Housing for analogue and digital interfaces for automation and robotising plants.
6
5
Fig. A
MATRIX X220 AC/DC
TIG
kVA 6,5
A 16
A 220 (30%)
m 3,5
mm 2 2,5
mm 2 25
1
2
3
4
6
MATRIX X300 AC/DC
MMA TIG
7,0
180 (30%) 300 (35%)
10
Table 2
MMA
9,6
10
250 (40%)
4
2,5
35
7
8
9
