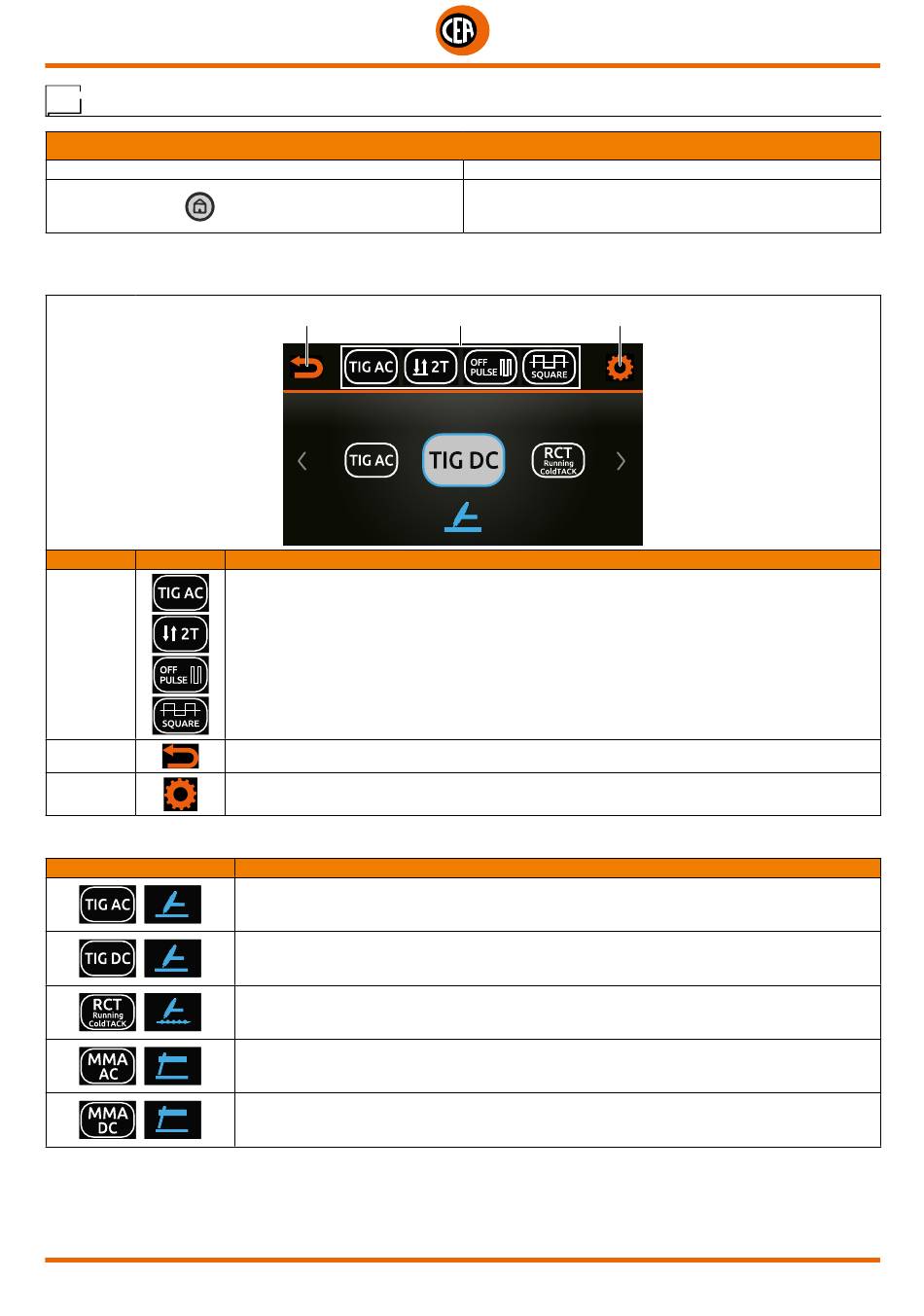

Welding process configuration menu

ACTION
Push the HOME key from the WELD page.
Configuring the welding process follows a logical path. Each choice made in the previous step changes the options available in the next
step.
POSITION SYMBOL
1
2
3
The welding process parameter selection area is divided into the following sections:
WELDING PROCESS
WELDING PROCESS CONFIGURATION MENU
2
WELDING PROCESS
DESCRIPTION
Area for selecting the welding process parameters:
• Welding process.
• Type of ignition.
• Welding mode.
• Type of pulsation.
• Type of AC welding wave.
Go back to the previous screen.
Go to the CONFIGURATION menu.
DESCRIPTION
TIG AC - TIG AC welding with HF ignition.
TIG DC - TIG DC welding with various types of HF ignition.
RCT RCT Running Cold TACK - TIG DC welding with a RCT Running Cold TACK process that
makes it possible to form very cold weld seams.
MMA AC - ELECTRODE welding in AC.
MMA DC - ELECTRODE welding in DC.
RESULT
Welding PROCESS configuration page.
