JOB - Creating and saving welding programs

The welding machine allows you to save up to 99 welding programs (JOBS).
Once you have defined the parameters the operator requires to do their work properly, you can save them by creating a welding pro-
gram (JOB), by proceeding as follows:

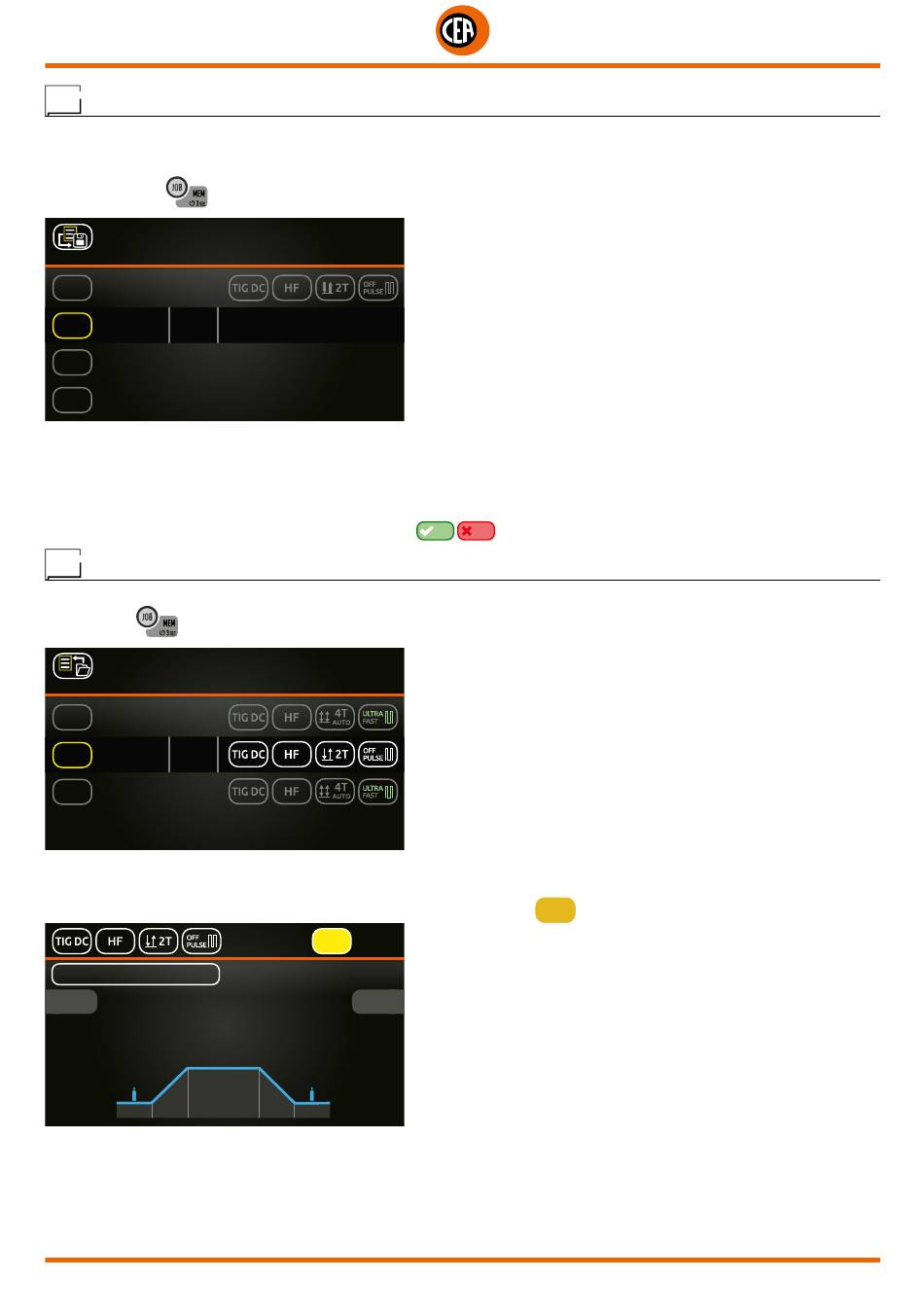

1. Hold down the key for at least 3 seconds, until the figure shown below appears on the display.
1 SAVED JOBS
PRESS KNOB TO SAVE
J-01 JOB 01 80A
J-02 ........
J-03 ........
J-04 ........
2. The software proposes saving as the first free welding program that is free (e.g. J-02...).
3. Push the knob to save.
You can overwrite a program already saved (e.g. J-01 JOB 01 - see figure above). To do so, proceed as follows:
1.
Rotate the knob to reach the program to be overwritten.
2. Push the knob to save.
3. Follow the guided procedure to confirm the overwriting

JOB - Viewing and loading a saved program

Proceed as follows:
1. When the key is pushed the page that contains a list of the saved programs (JOBS) is displayed.
2 SAVED JOBS
PRESS KNOB TO LOAD
MAN MANUAL 120A
J-01 JOB 01 80A
J-02 JOB 02 120A
2. Rotate and push the knob to load the JOB required (e.g. J-01 JOB 01).
3. You can now weld using the parameters saved in the JOB saved.
4. The main welding screen will display the name of the JOB loaded and the
J-01
JOB 01
80
2.4
Ø
5. Rotate the knob to scroll the list of JOBS saved and enable them.
YES
PRESS KNOB 2 sec TO EDIT
JOB
v
12.0
A
.
NO
symbol.
