Commissioning
Welding torch and workpiece line connection
6.8.1

Intermediate tube package connection

The following section of the document applies only to decompact welding machines.
6.8.1.1

Wire feed unit

Item Symbol Description
1
2
3
4
5
6
7
• Insert the end of the tube package through the strain relief of the tube package and lock by turning to
the right.
• Insert the plug on the welding current lead into the welding current connection socket "+" and lock.
• Lock connecting nipples of the cooling water tubes into the corresponding rapid-action closure
couplings:
Return line red to rapid-action closure coupling, red (coolant return) and
supply line blue to rapid-action closure coupling, blue (coolant supply).
• Insert cable plug on the control lead into the 7-pole connection socket and secure with crown nut (the
plug can only be inserted into the connection socket in one position).
• Connect crown nut of the shielding gas line to the G¼" connecting nipple.
• Screw the eyelet of the earth lead on to the connecting nipple of the earth lead.
A pilot static tube for a gas flow of 0-16 l/min is fitted on each wire feed unit as standard. For
applications where a higher gas flow rate is required (e.g. for aluminium), a pilot static tube of 0 -
25 l/min (see accessories) should be installed.
52
0
7-pole connection socket
• Wire feed unit control lead
Connecting nipple G¼, shielding gas connection
Connector plug, welding current "+"
Welding current connection on wire feed unit
Rapid-action closure coupling, blue (coolant supply)
Rapid-action closure coupling, red (coolant return)
Intermediate tube package strain relief
Earth cable connecting nipple
Connection of green-yellow earth cable from the intermediate tube package

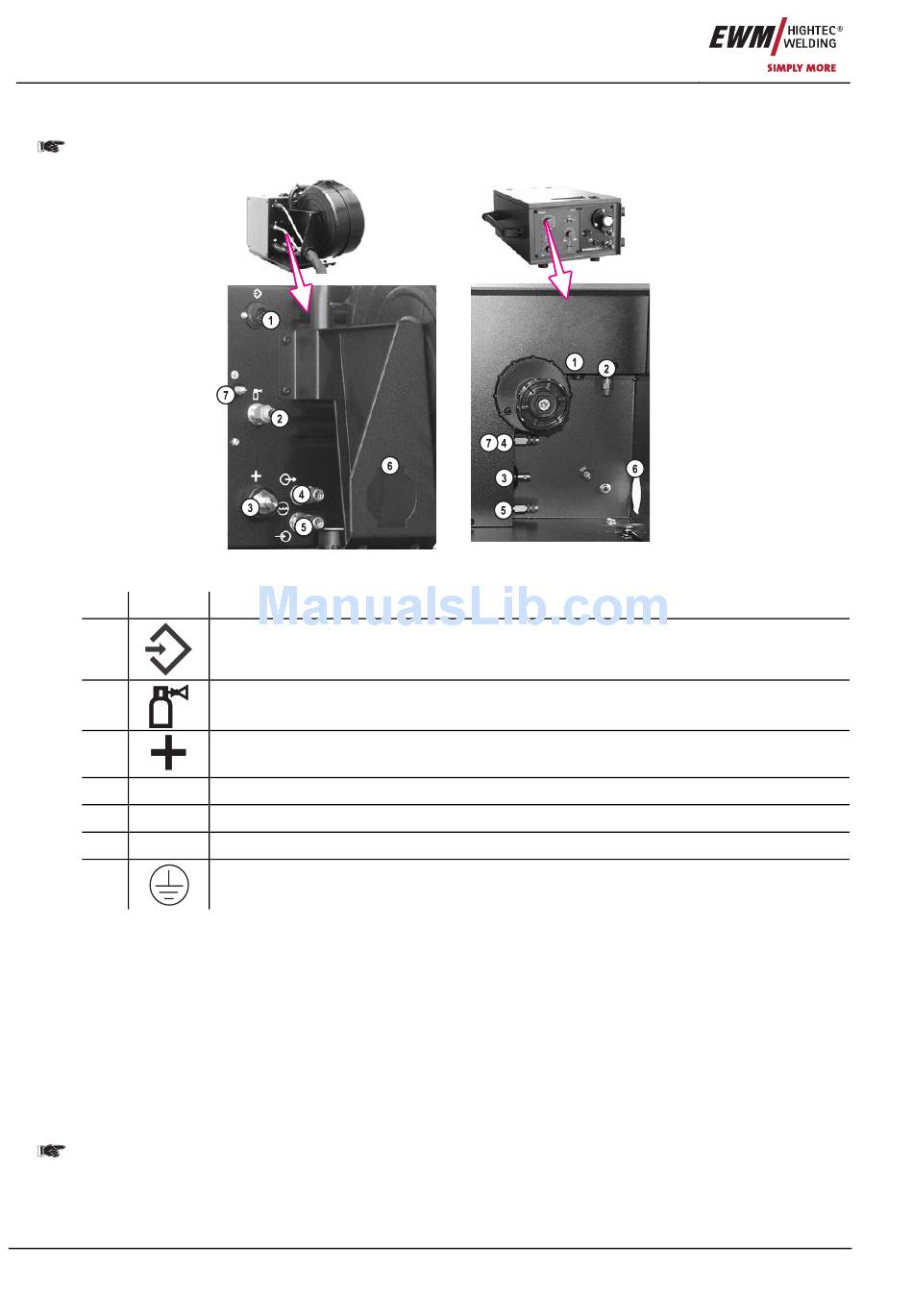

Figure 6-2
Item No.: 099-004934-EWM01
