5.5.2

Intermediate tube package connection

Item Symbol Description
1
2
3
4
5
6
• Insert the end of the tube package through the strain relief of the tube package and lock by turning to
the right.
• Insert the plug on the welding current lead into the welding current connection socket "+" and lock.
• Screw the eyelet of the earth lead on to the connecting nipple of the earth lead.
• Insert cable plug on the control lead into the 7-pole connection socket and secure with crown nut (the
plug can only be inserted into the connection socket in one position).
099-005167-EW501
29.06.2010
0
Wire feed unit
Intermediate tube package
Intermediate tube package strain relief
Connector plug, welding current "+"
Welding current connection on wire feed unit
Earth cable connecting (PE)
Connection of green-yellow earth cable from the intermediate tube package
7-pole connection socket
Wire feed unit control lead
Design and function

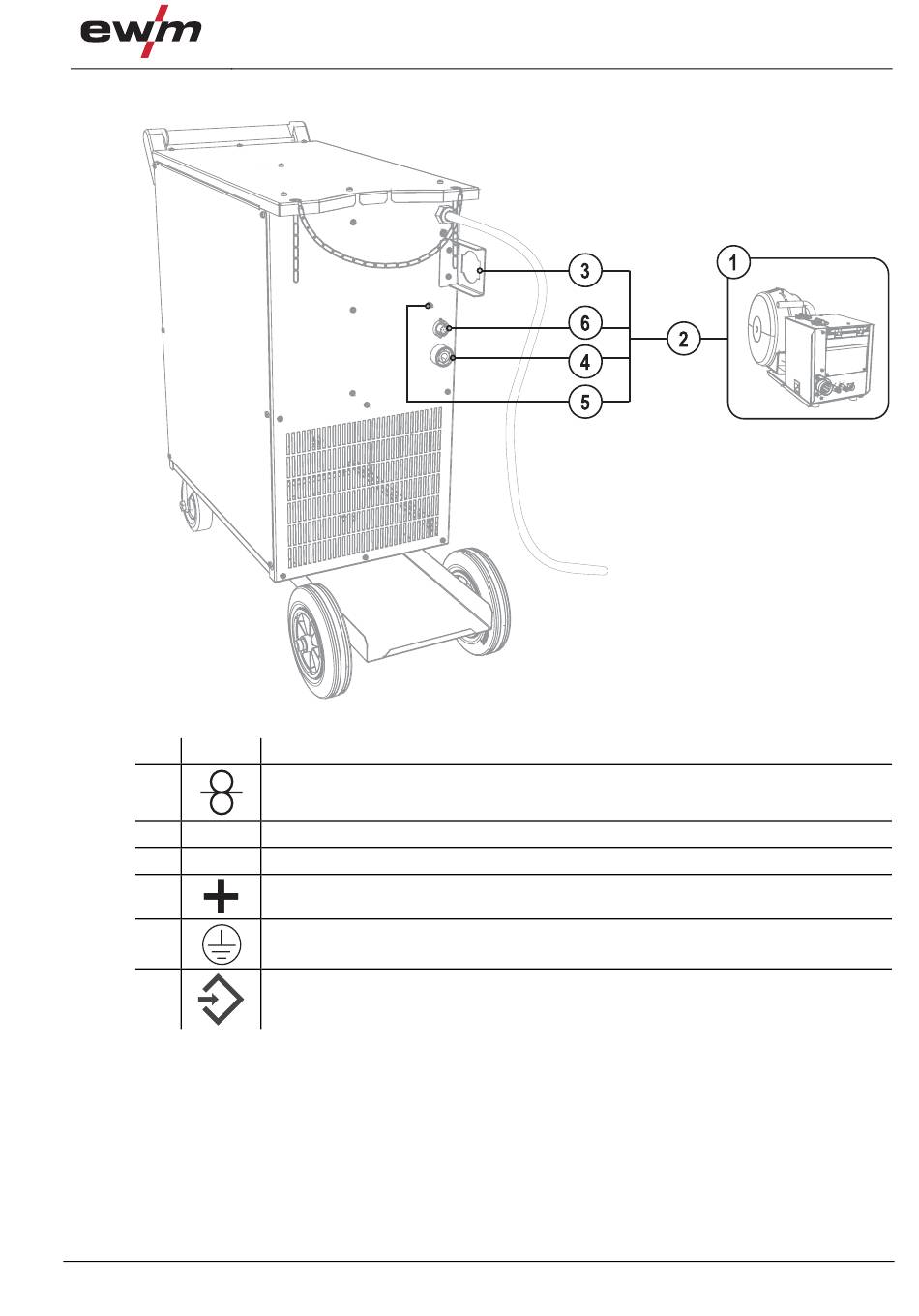

Figure 5-2
