Commissioning
Welding torch and workpiece line connection
6.8.1

Intermediate tube package connection

The following section of the document applies only to decompact welding machines.
6.8.1.1

Wire feed unit

Item Symbol Description
1
2
3
4
5
6
7
• Insert the end of the tube package through the strain relief of the tube package and lock by turning to
the right.
• Insert the plug on the welding current lead into the welding current connection socket "+" and lock.
• Lock connecting nipples of the cooling water tubes into the corresponding rapid-action closure
couplings:
56
0
7-pole connection socket
Wire feed unit control lead
Connecting nipple G¼, shielding gas connection
Connector plug, welding current "+"
Welding current connection on wire feed unit
Rapid-action closure coupling, blue (coolant supply)
Rapid-action closure coupling, red (coolant return)
Intermediate tube package strain relief
Earth cable connecting nipple
Connection of green-yellow earth cable from the intermediate tube package
NOTE

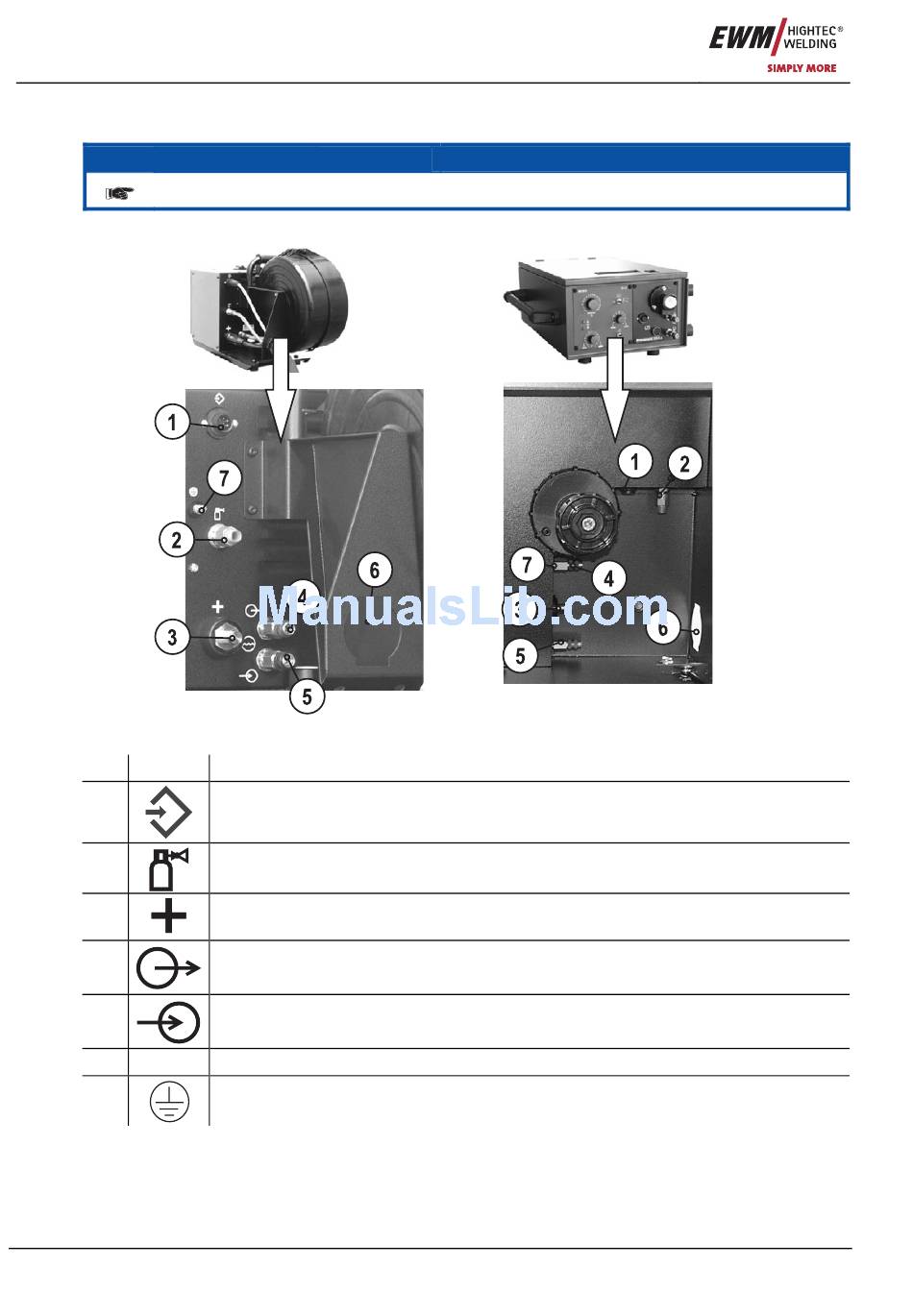

Figure 6-3
Item No.: 099-004934-EWM01
