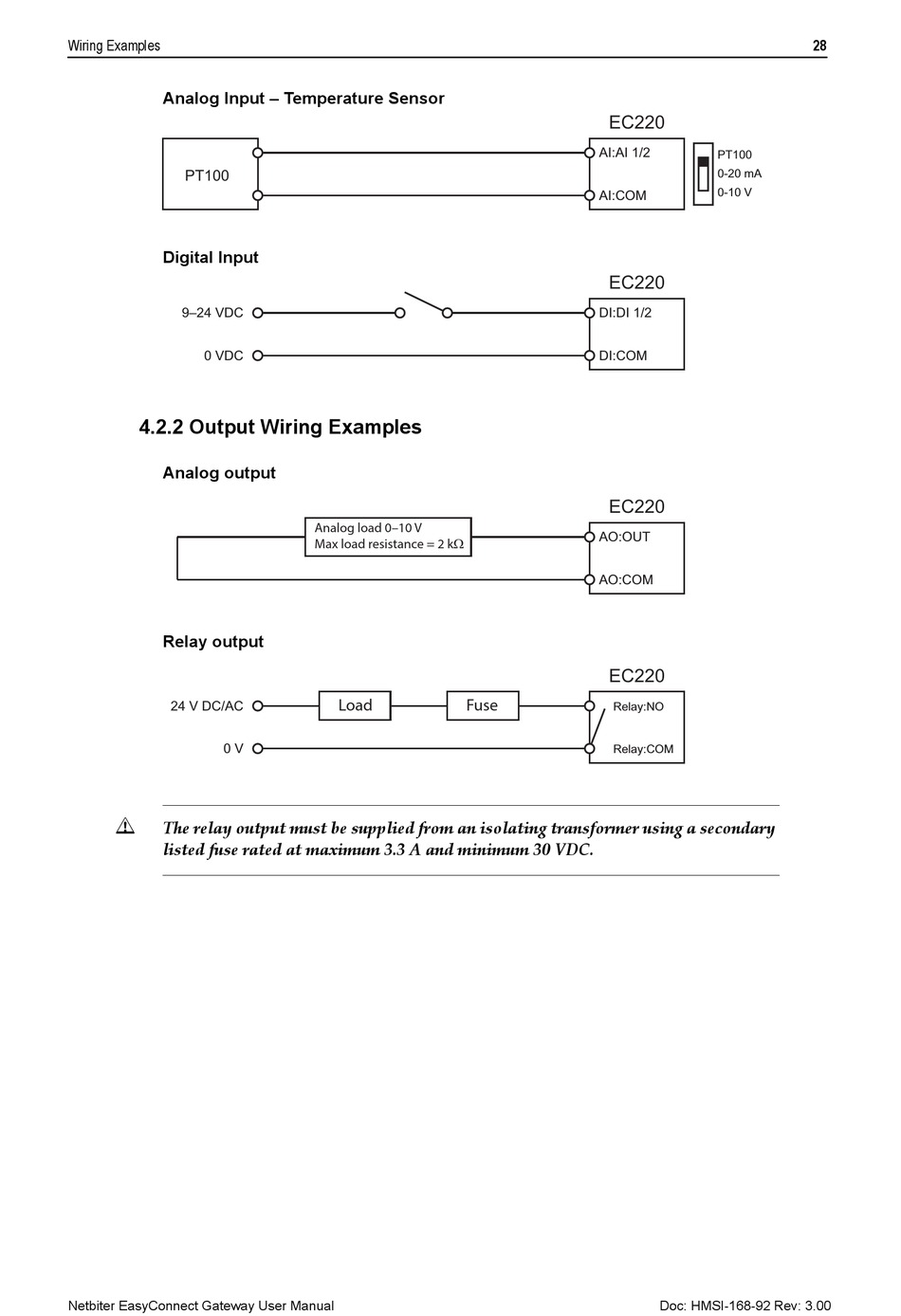

Wiring Examples
Analog Input – Temperature Sensor
PT100
Digital Input
9–24 VDC
0 VDC
4.2.2 Output Wiring Examples
Analog output
Relay output
24 V DC/AC
0 V
!
The relay output must be supplied from an isolating transformer using a secondary
listed fuse rated at maximum 3.3 A and minimum 30 VDC.
Netbiter EasyConnect Gateway User Manual
Analog load 0–10 V
Max load resistance = 2 k
Load Fuse
EC220
AI:AI 1/2
PT100
0-20 mA
0-10 V
AI:COM
EC220
DI:DI 1/2
DI:COM
EC220
AO:OUT
AO:COM
EC220
Relay:NO
Relay:COM
