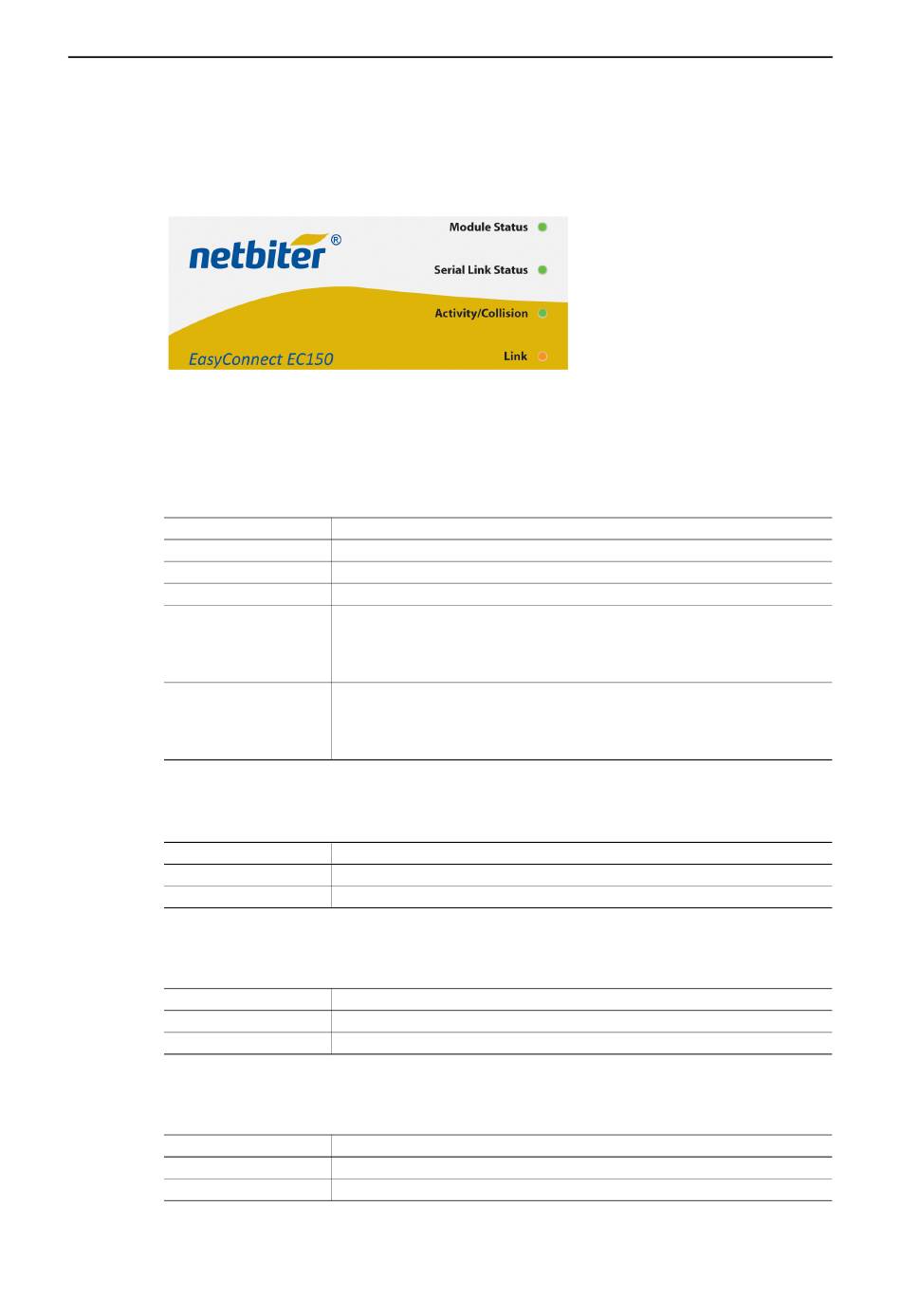

LED Indicators

3. LED Indicators

3.1 Netbiter EC150

3.1.1 Module Status
The Module Status LED indicates the functional status of the unit. During startup the Mod‐
ule Status LED will first show orange, then steady green until startup has completed.
Indication
Off
Orange / Green (steady)
Green (3 flashes)
Red (2 flashes)
Red (3 flashes)
3.1.2 Serial Link Status
Indication
Green (flashing)
Red (flashing)
3.1.3 Activity/Collision
Indication
Green (flashing)
Red (flashing)
3.1.4 Link
Indication
Green
Orange
Netbiter EasyConnect Gateway User Manual
Meaning
No power
Unit is starting up (ca. 30 seconds)
Unit is operating normally
Invalid network settings
• DHCP: Check that there is a working DHCP server on the network.
• Static IP: Check that the IP address, default gateway and DNS are correctly set.
• If a proxy is used, check that the proxy settings are correct.
No connection to Netbiter Argos
• Check the network settings.
• If a proxy is used, check that the proxy settings are correct.
• Check that at least one of ports 443, 80 or 5222 are open in the firewall.
Meaning
Receiving serial packet
Transmitting serial packet
Meaning
Receiving Ethernet packet
Ethernet collision detected
Meaning
10 Mb/s Ethernet network detected
100 Mb/s Ethernet network detected
