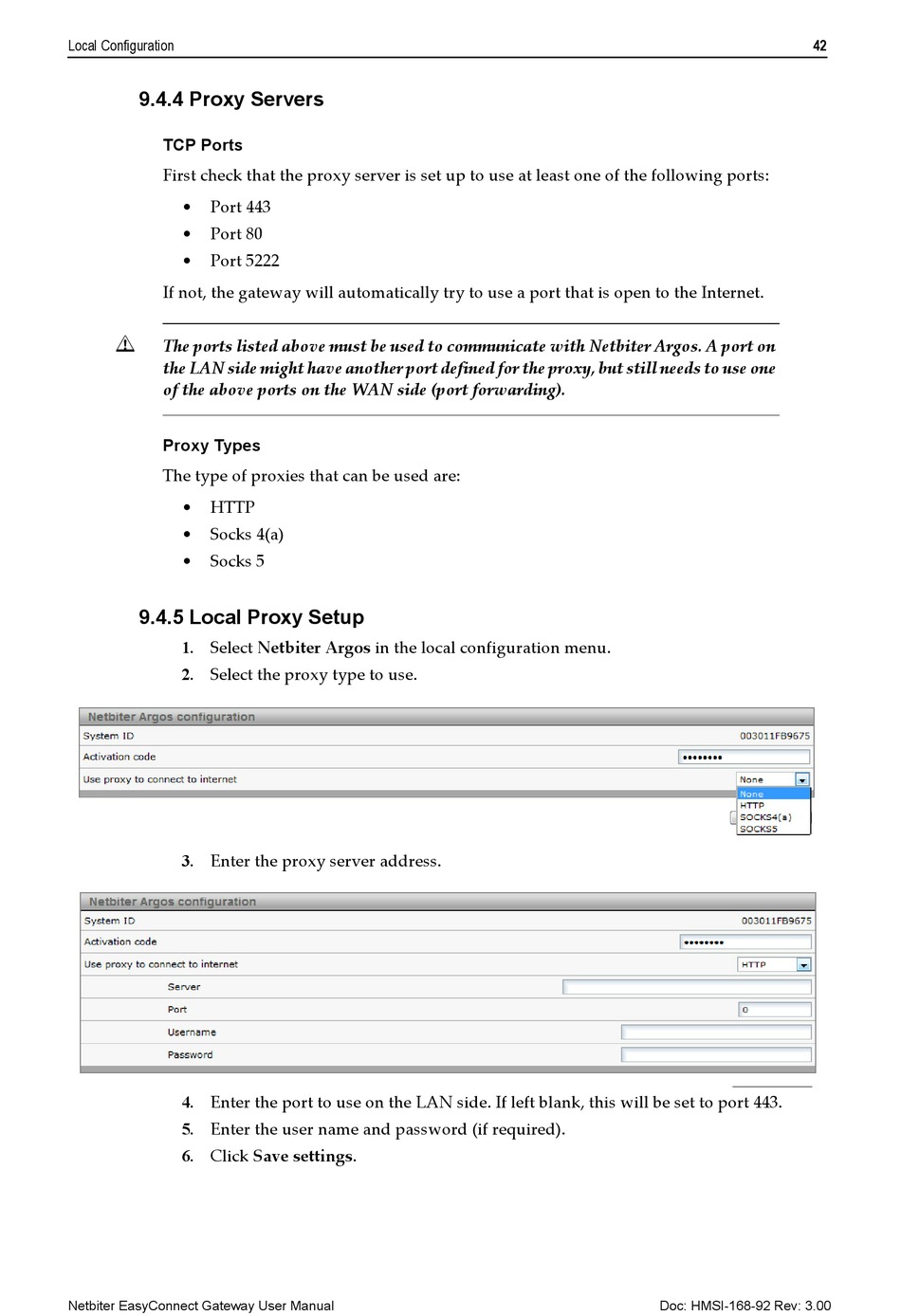

HMS Netbiter EasyConnect Series User Manual page 44

Local Configuration
9.4.4 Proxy Servers
TCP Ports
First check that the proxy server is set up to use at least one of the following ports:
• Port 443
• Port 80
• Port 5222
If not, the gateway will automatically try to use a port that is open to the Internet.
!
The ports listed above must be used to communicate with Netbiter Argos. A port on
the LAN side might have another port defined for the proxy, but still needs to use one
of the above ports on the WAN side (port forwarding).
Proxy Types
The type of proxies that can be used are:
• HTTP
• Socks 4(a)
• Socks 5
9.4.5 Local Proxy Setup
1. Select Netbiter Argos in the local configuration menu.
2. Select the proxy type to use.
3. Enter the proxy server address.
4. Enter the port to use on the LAN side. If left blank, this will be set to port 443.
5. Enter the user name and password (if required).
6. Click Save settings.
Netbiter EasyConnect Gateway User Manual
42
Doc: HMSI-168-92 Rev: 3.00
