Wiring Examples

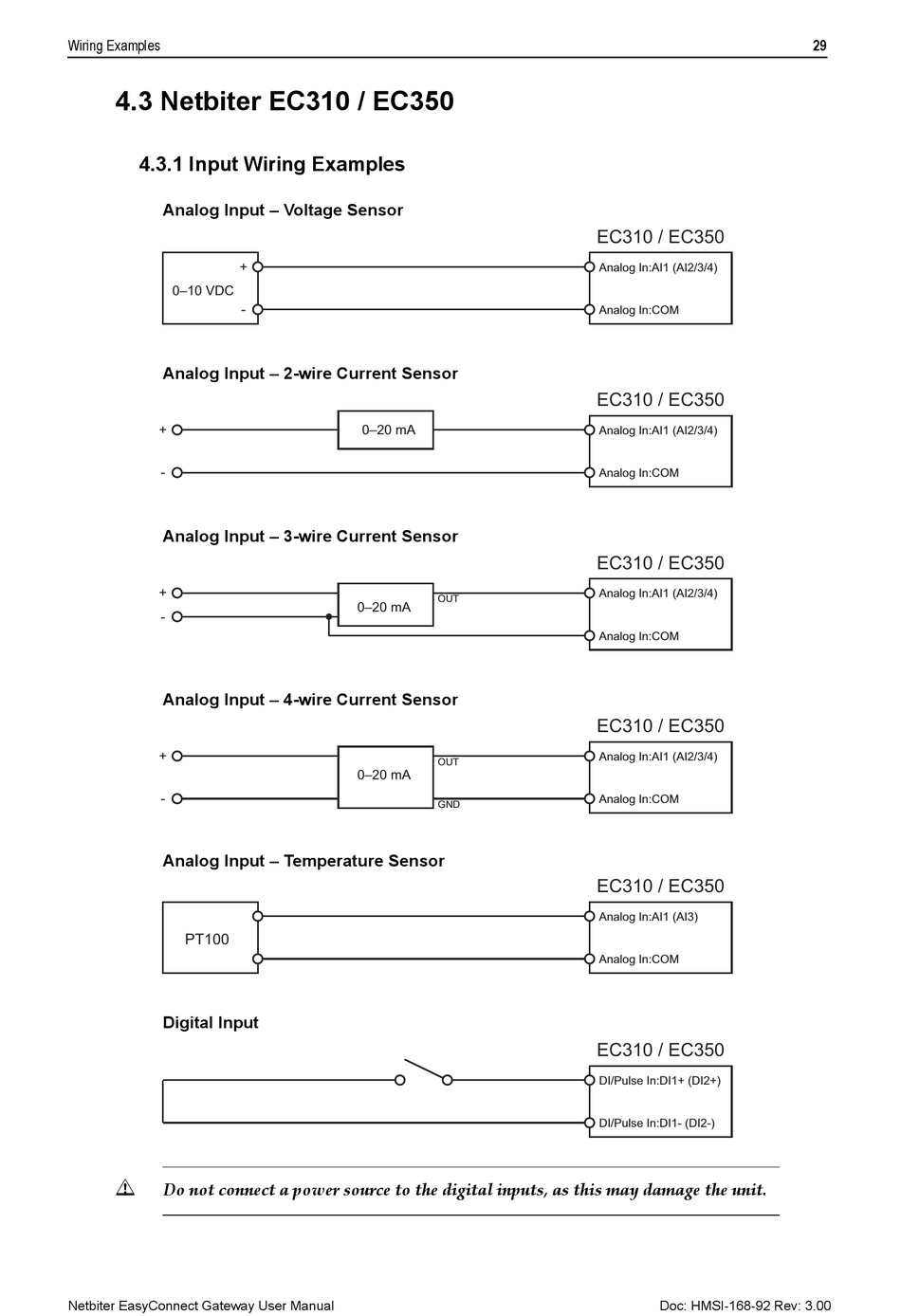

4.3 Netbiter EC310 / EC350

4.3.1 Input Wiring Examples
Analog Input – Voltage Sensor
0–10 VDC
Analog Input – 2-wire Current Sensor
+
-
Analog Input – 3-wire Current Sensor
+
-
Analog Input – 4-wire Current Sensor
+
-
Analog Input – Temperature Sensor
PT100
Digital Input
!
Do not connect a power source to the digital inputs, as this may damage the unit.
Netbiter EasyConnect Gateway User Manual
+
-
0–20 mA
0–20 mA
0–20 mA
EC310 / EC350
Analog In:AI1 (AI2/3/4)
Analog In:COM
EC310 / EC350
Analog In:AI1 (AI2/3/4)
Analog In:COM
EC310 / EC350
Analog In:AI1 (AI2/3/4)
OUT
Analog In:COM
EC310 / EC350
Analog In:AI1 (AI2/3/4)
OUT
Analog In:COM
GND
EC310 / EC350
Analog In:AI1 (AI3)
Analog In:COM
EC310 / EC350
DI/Pulse In:DI1+ (DI2+)
DI/Pulse In:DI1- (DI2-)
